11. Control Puck

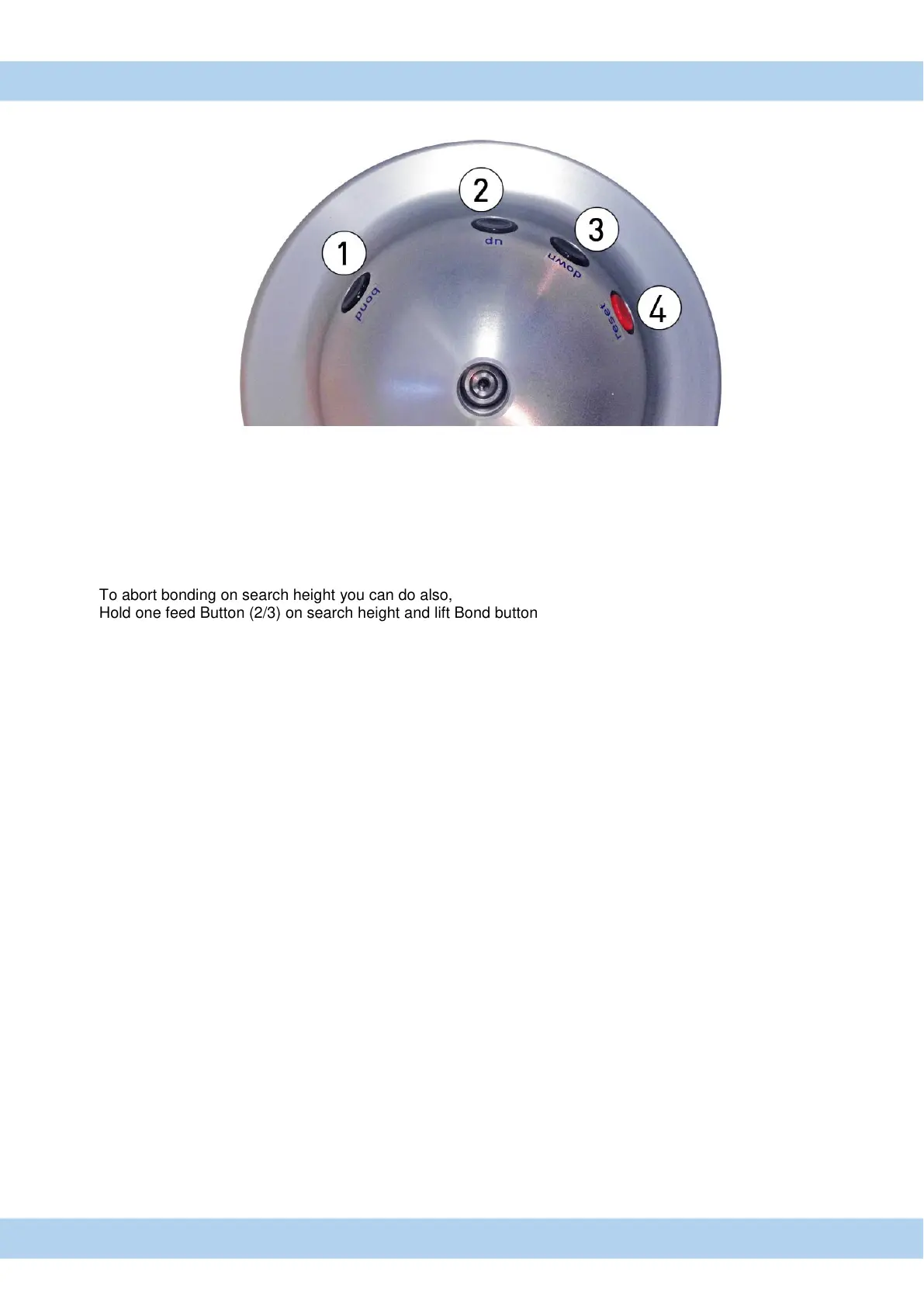

Figure 15 Control Puck
1. Bond Start button
2. Tail feed upwards
3. Tail feed downwards
4. Reset after first bond, by search height and by height setup
To abort bonding on search height you can do also,
Hold one feed Button (2/3) on search height and lift Bond button (1).
Control Puck "X-Y" Axis Control - 6 :1 ratio manipulator
