14. Menu Setup Wedge Bonder Touch Panel Display
Wedgebond Mode
Clamp Feed Table Tear

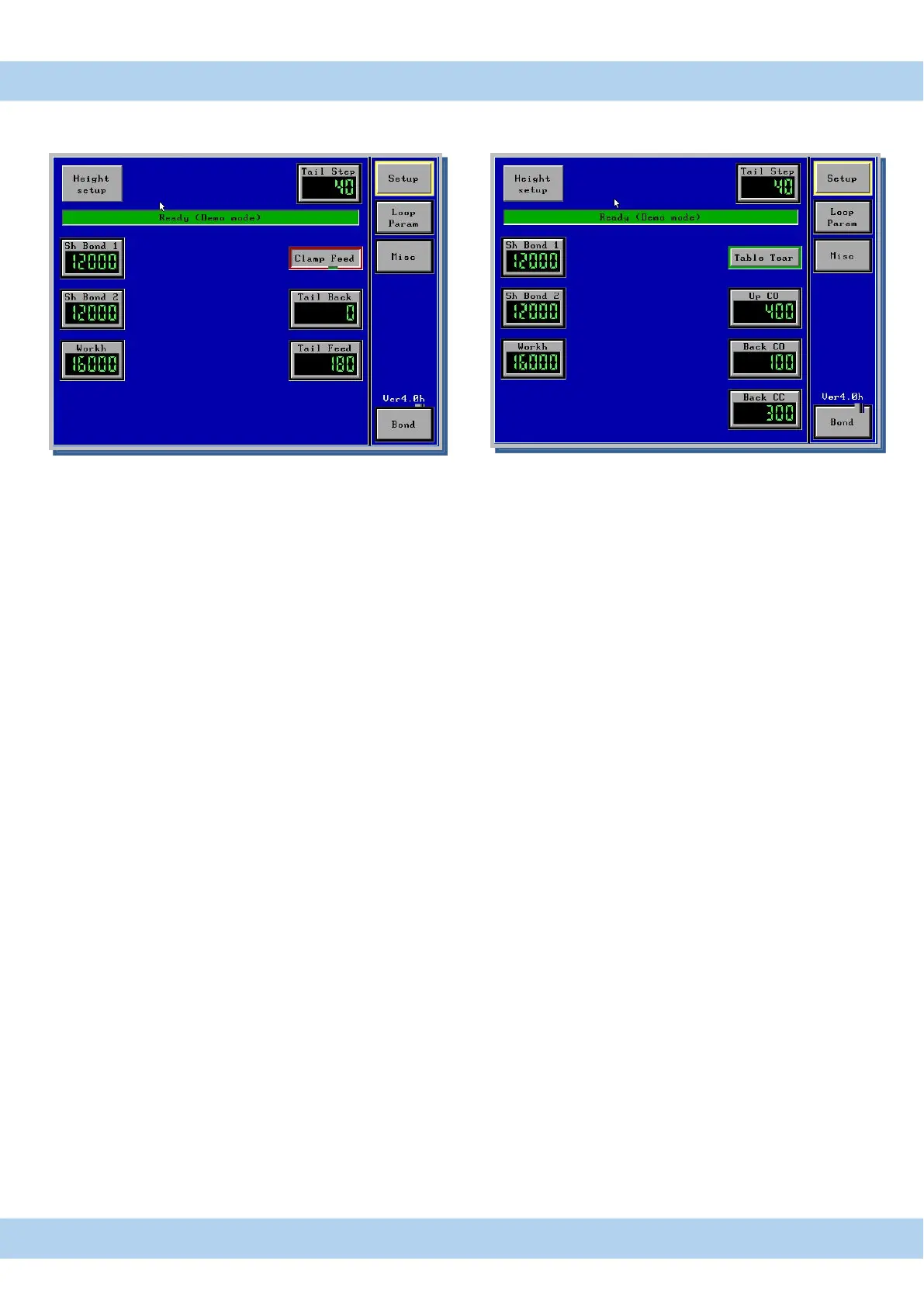

Menu Setup Wedge Bonder Figure 8
Setup Setup Menu for Height adjustment, Tail adjustment and EFO adjustment
Tail Step button to change Tail-Step distance for Wire feed switch
Loop Param loop Parameter Menu for loop profile programming Only HB12/14/16 Bonder
Misc Menu for light adjusted , and all parameter saved/load to USB & Bonder
Bond timer displayed, Motor speed and search speed
. Bond Bondmenu, here are all Bond parameter displayed
Height Setup button for Auto height Set Up ( see page 33) Reset with Feed Button
. Sh Bond 1 button for 1st. search height adjustment
. Sh Bond 2 button for 2nd search height adjustment
. Work h button for upper work height position ( Bond tool )
. Table Tear Change Tail Mode between “Table Tear” and “Clamp Feed”
Table Tear : After second bond clamp, is still open and move upwards and backwards, then
clamp is closing an cut wire by moving upwards or backwards.
Up CO Clamp is open and bondhead move upwards (Z-way)
Back CO Clamp is open and table move backwards (Y-way)
Back CC Clamp is closed and table move backwards (Y-way) to cut wire
Clamp Feed : After second bond clamp, is closed and move upwards to cut wire.
On work height clamp feed wire for new tail.
Tail Back to cut wire by moving clamp upwards (usually is “0”)
Tail Feed after bonding, on work height, clamp feed new tail (usually is “200”)
All changed program values are automatic saved in displayed program number
