22. Work Stage connector and Height Adjustment
1. Plug in the work stage cable into the matching connector.
TPT optional work stage H26 is a heated work stage with provisions for both vacuum clamping and
mechanical clamping. Mechanical clamping provisions allow clamping of work pieces with dimensions of up to
40mm. Mechanical clamping adjustments are accomplished with the adjustable back stop. When the vacuum
clamping provision is used, a vacuum hose must be attached to the work stage vacuum tube to provide a
vacuum in the hole in the work stage top plate.

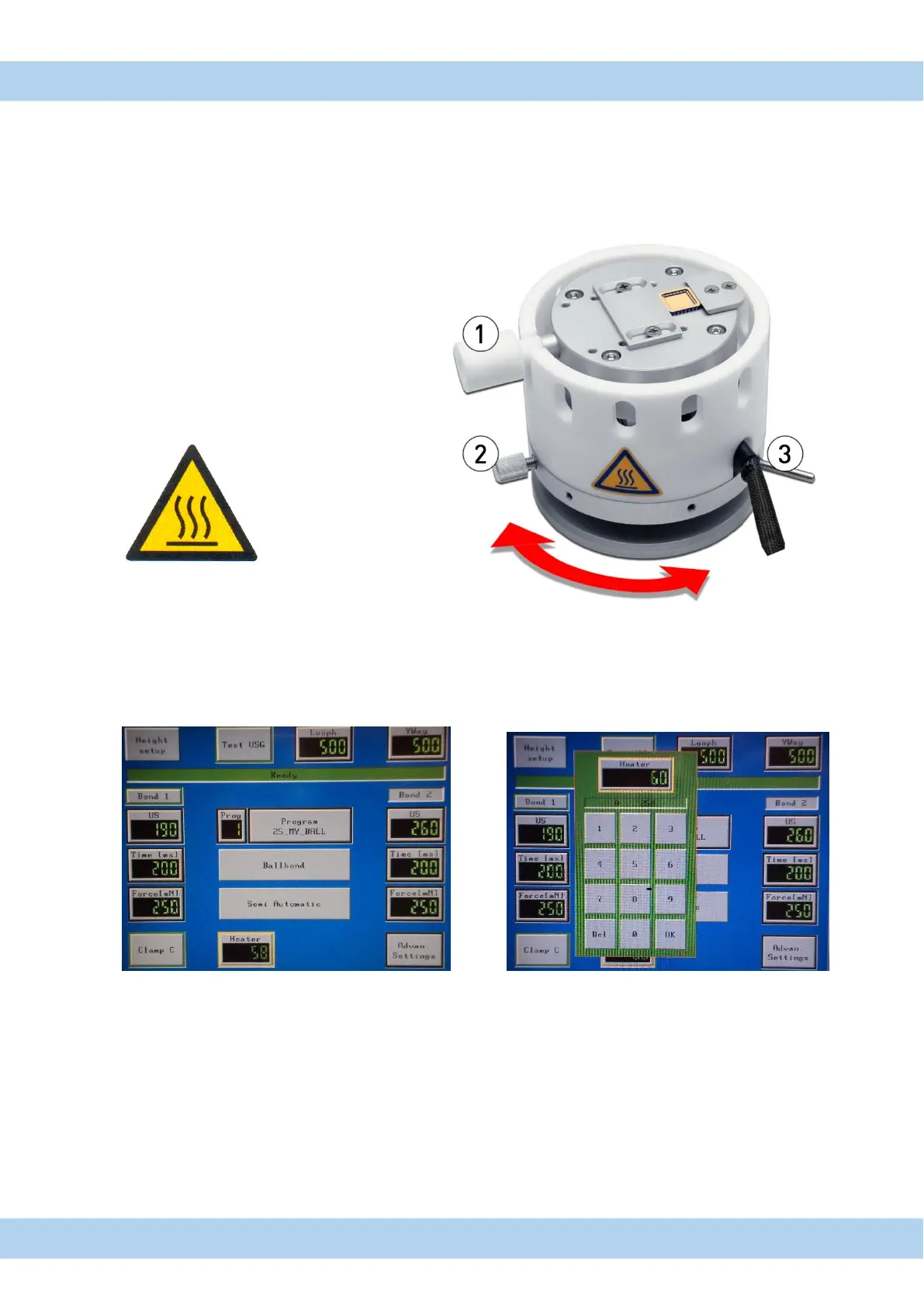

1. Mechanical clamping
2. Lose clamping bolt to change stage height
screw bottom plate up or down
3. Vacuum Hose
Figure 2
22.1. Temperature Controller for Work Stage & Tool Heater
To set work stage temperature (only used by Gold Wire) 120°C – 150°C
CAUTION !
Never connect two heater stages in parallel in front and back connector
