6.1 Object Model, Encoder Device
According to the EtherNet/IP™ specification the TR measuring system corresponds to
an “Encoder Device, Device Type 0x22”. Figure 5 therefore describes the Object
Model of a TR measuring system.

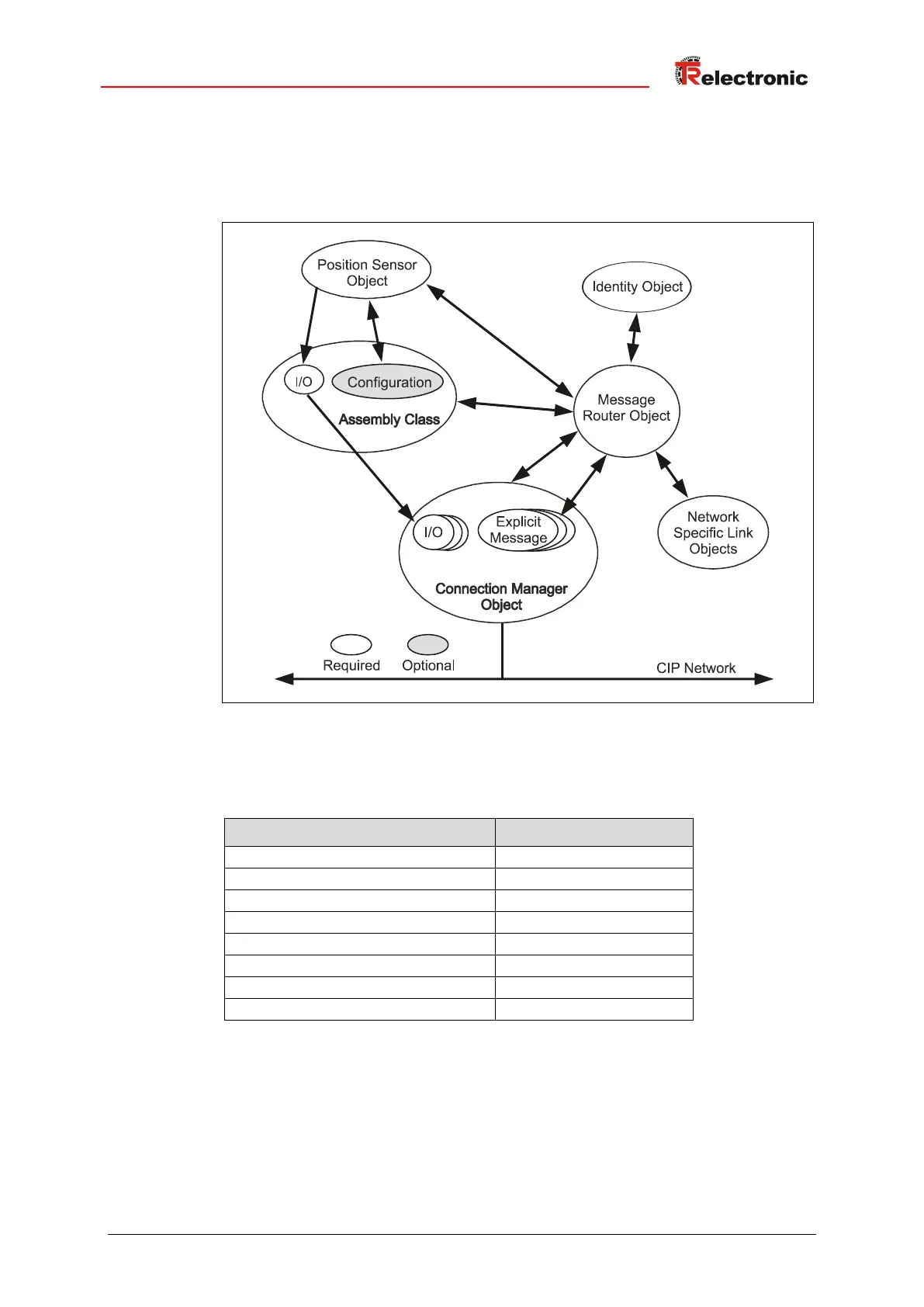

Figure 5: Object Model “Encoder Device”
6.1.1 Classes
Object Classes
Number of Instances
0x01: Identity Object
1
0x02: Message Router Object
1
0x04: Assembly Object
3
0x06: Connection Manager Object
1
0x23: Position Sensor Object
1
0xF4: Port Object
1
0xF5: TCP/IP Interface Object
1
0xF6: Ethernet Link Object
1
Table 4: Supported Classes
