9.2 IP configuration with TRWinProg, FLASH storage
If it is not possible to configure the IP parameter by means of a DCHP server, the IP
configuration can also be performed about the TR program TRWinProg. The
parameters are stored permanently in the FLASH memory.

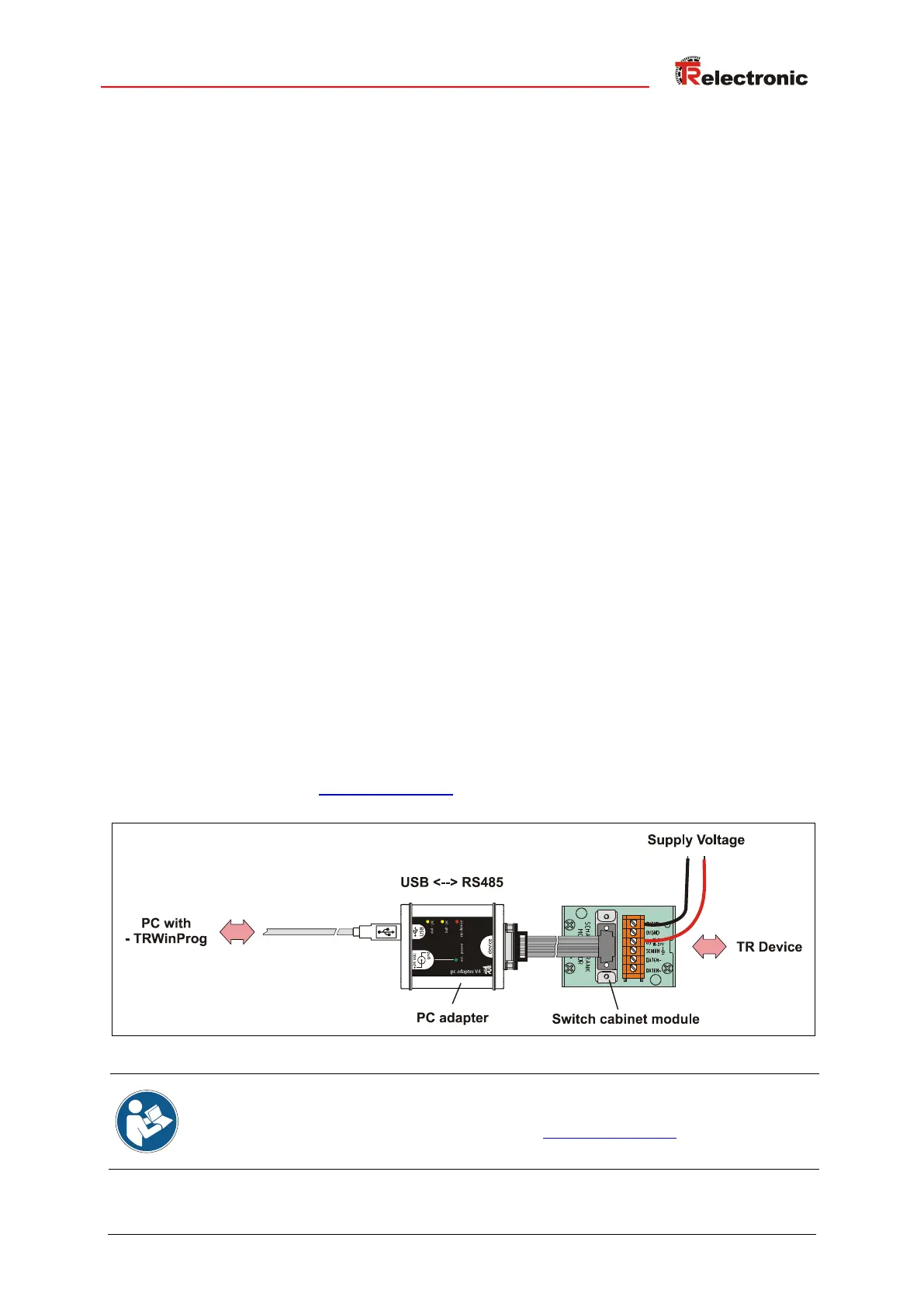

9.2.1 Connection to the PC (Programming)
What will be needed by TR-Electronic?
Switch cabinet module Order-No.: 490-00101
Programming set Order-No.: 490-00310:
● Plastic case,
with the following components:
– USB PC adapter V4
Conversion USB <--> RS485
– USB cable 1.00 m
Connection cable between
PC adapter and PC
– Flat ribbon cable 1.30 m
Connection cable between
PC adapter and TR switch cabinet module
(15-pol. SUB-D female/male)
– Plug Power Supply Unit 24 V DC, 1A
The connected device can be supplied via the PC adapter
– Software- and Support-DVD
- USB driver, Soft-No.: 490-00421
- TRWinProg, Soft-No.: 490-00416
- EPROGW32, Soft-No.: 490-00418
- LTProg, Soft-No.: 490-00415
– Installation Guide
TR-E-TI-DGB-0074, German/English
For operation ex Windows 7 the USB PC adapter HID V5 / SSI, order no.:
490-00313 / 490-00314 with installation guide TR-E-TI-DGB-0103 must be used.
