5 Commissioning
5.1 EDS file
The EDS (electronic datasheet) contains all information on the measuring system-
specific parameters and the measuring system’s operating modes. The EDS file is
integrated using the EtherNet/IP™ network configuration tool to correctly configure or
operate the measuring system.
The EDS file has the file name "04710022_TR_EIP_XXXXXX.eds".
Download:
 www.tr-electronic.de/f/TR-ECE-ID-MUL-0033
5.2 Bus status display
The EtherNet/IP™ measuring system is equipped with three diagnostic LEDs.

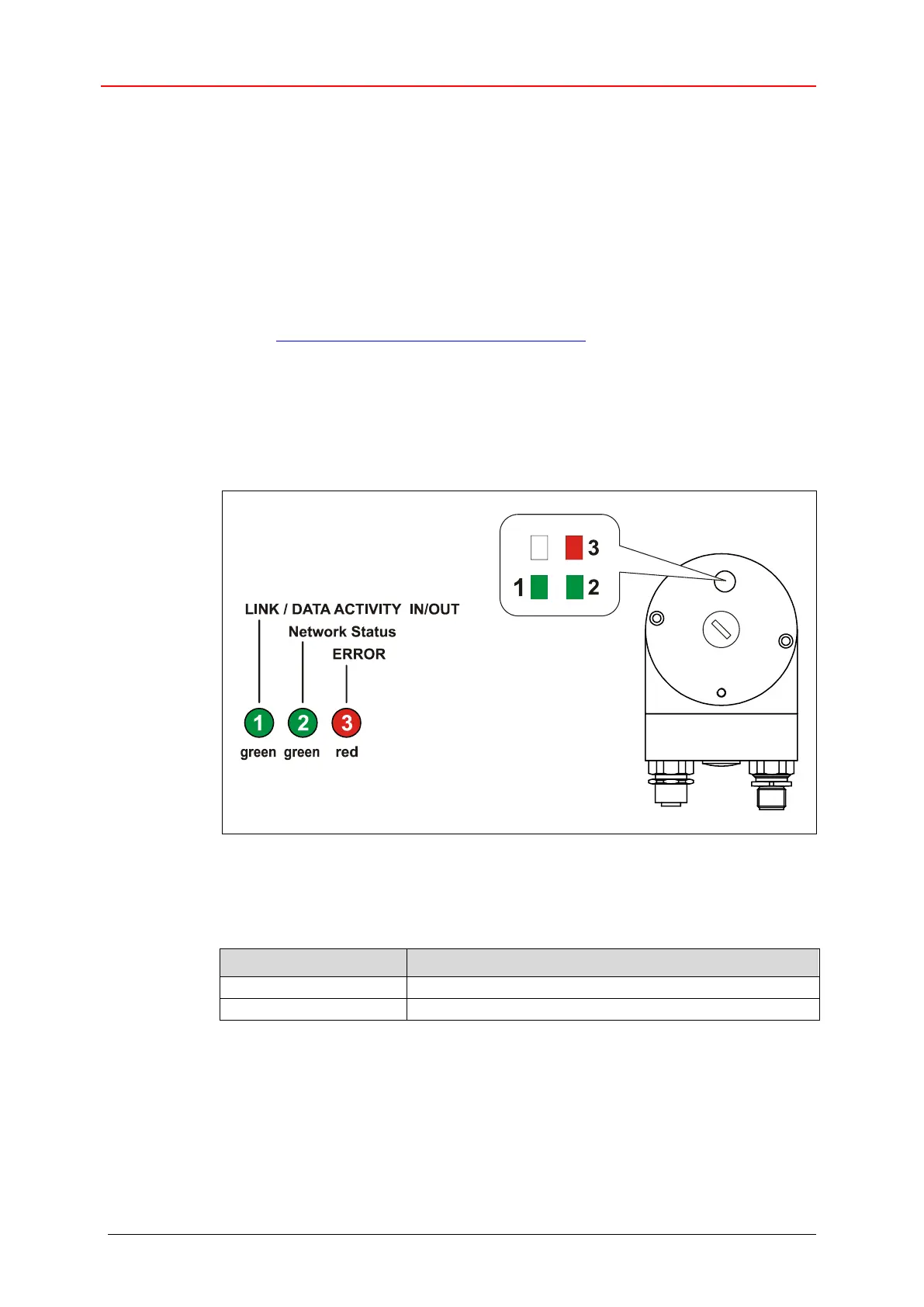

Figure 4: EtherNet/IP™ diagnostic LEDs
5.2.1 Link / Data Activity LED
LED Status
Description
ON = Link
Ethernet connection established
Flashing = Data Activity
Data transfer TxD/RxD
