TR-Electronic CEV-65 - 4.1 Connection

Installation / Preparation for start-up
 TR-Electronic GmbH 2008, All Rights Reserved Printed in the Federal Republic of Germany
Page 94 of 155 TR - ECE - BA - DGB - 0073 - 07 06/27/2017

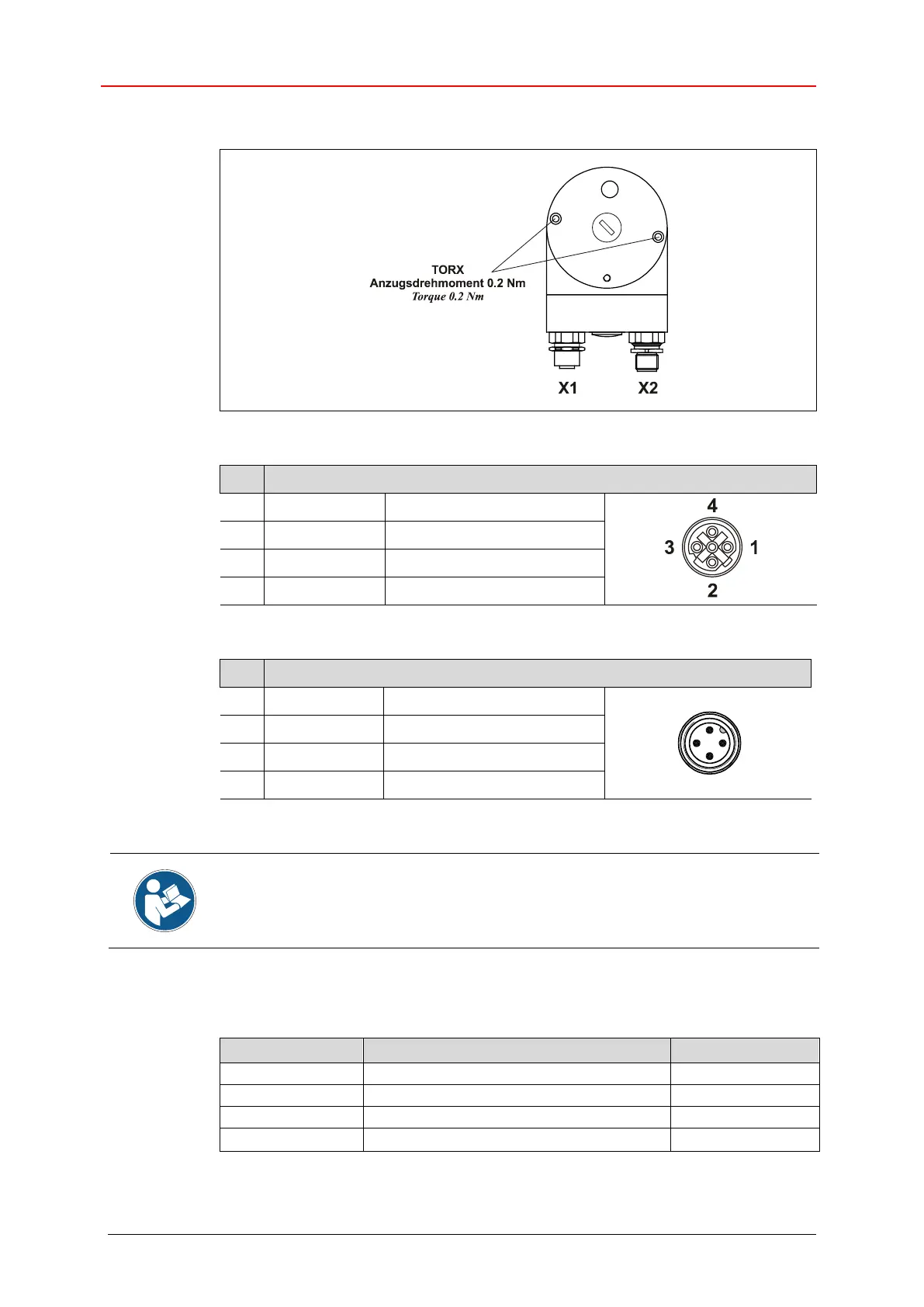

4.1 Connection
X1
IN / OUT; Flange socket (M12x1-4 pol. D-coded)
1
TxD+
transmitted data +
2
RxD+
received data +
3
TxD–
transmitted data –
4
RxD–
received data –
X2
Supply; Flange connector (M12x1-4 pol. A-coded)
1
11 – 27 V DC
Voltage Supply
1
3
2
4
2
TRWinProg +
for service purposes only
3
GND, 0V
Voltage Supply
4
TRWinProg –
for service purposes only
Shielded twisted pair cables must be used for the supply!
The shielding is to be connected with large surface on the mating connector
housing!
Order data for Ethernet flange socket M12x1-4 pin D-coded
Manufacturer
Designation
Order no.:
Binder
Series 825
99-3729-810-04
Phoenix Contact
SACC-M12MSD-4CON-PG 7-SH (PG 7)
15 21 25 8
Phoenix Contact
SACC-M12MSD-4CON-PG 9-SH (PG 9)
15 21 26 1
Harting
HARAX

M12-L
21 03 281 1405
