7.8.3.5.2 Set and store the IP parameter
Setting and storage of the IP parameter can be made in two ways by means of the
TCP/IP Interface Object, Class code 0xF5:
1. If the Set_Attribute_Single service is applied to attribute 0x05 the
contents of the Interface Configuration will be set as new IP
parameter. If the value of the attribute 0x03 Configuration Control =
0x00 when this action is performed, the configuration is stored permanently in
the FLASH memory.
2. If the value of attribute 0x03 Configuration Control = 0x02 and the
measuring system has obtained a configuration via DHCP, the IP parameters
are saved only temporarily. If then the value is set to 0x00 in the
Configuration Control, the current configuration is stored in the FLASH
memory permanently.

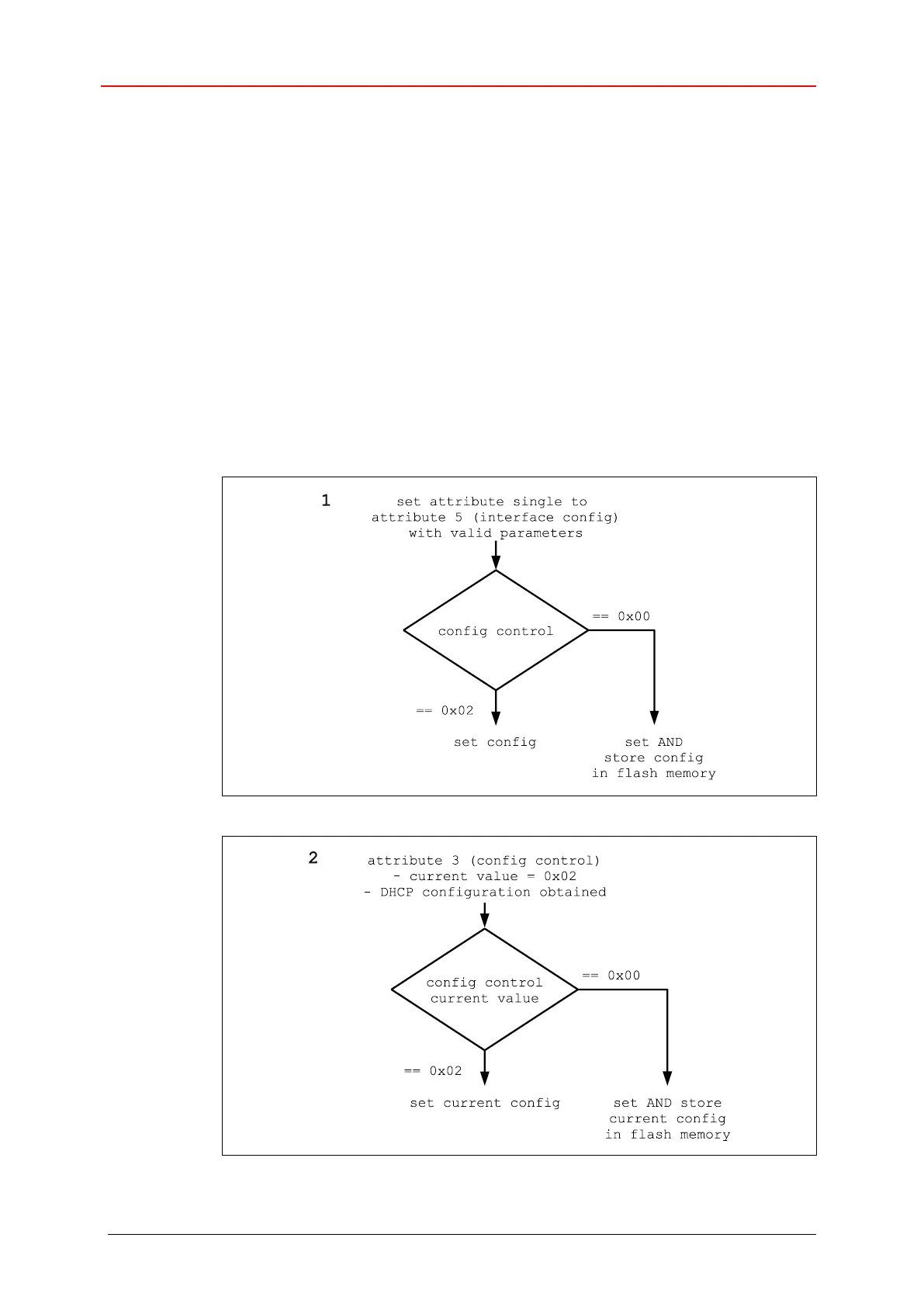

Flowcharts
