Trane Technologies Thermo King TouchLog - Format Zone Selection; UART Setting

42
TK 61009-12-OP-EN
CAS-
E
Key-
Ign
ON/
Auto
Record-
ing
Alarm -Temp
out of range
Alarm
-Door
open
Out-
put
1 + ON Yes Yes Yes Yes
2 0 ON Yes No
Yes
(a)
Yes
(b)
3 + Auto Yes Yes Yes Yes
4 0 Auto No No No No
5 + OFF No No No No
6 0 OFF No No No No
Note: If the unit is NOT recording there is no alarm generated.
(a)
Door Alarm is INDEPENDENT from ignition
(b)
OUTPUT is directly linked to ALARM. If no alarm, no output.
Format Zone Selection
This function allows selecting which zone in case of multi
temperature application (more than 2 temperature sensors) should
be printed, particularly useful to determine the layout for graph
printing. Alarms management will be activated in relation to the
zones definition.

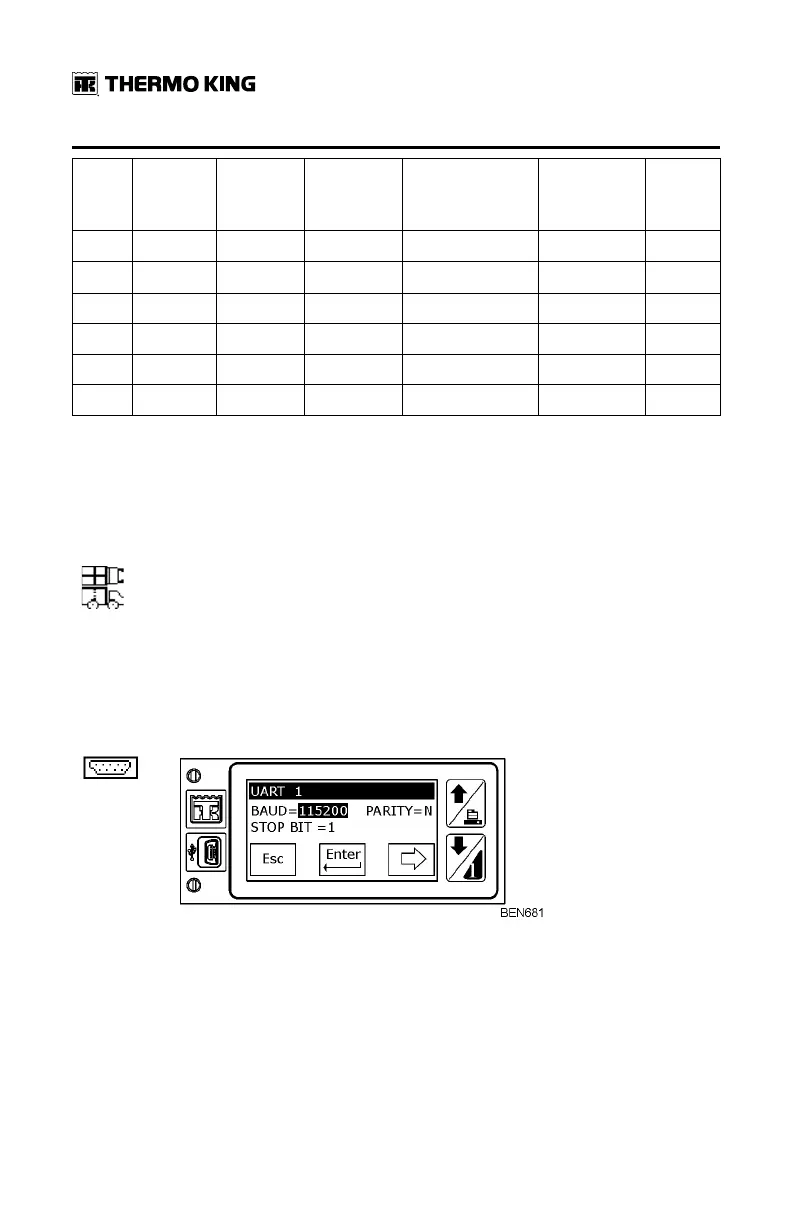

UART Setting
This menu enables to configure the 3 serial communication ports of the
TouchLog in terms of Baud rate, polarity and stop bit.
The 3 menus for the 3 serial ports S1, S2 and S3 are identical in which the
user select the protocol and the address but their purpose is quite different.
The first serial port S1 is present on both TouchLog models and it is intended
to connect the Thermo King communication device TracKing, when the
AAddvvaanncceedd OOppeerraattiioonn
