Installation: Mechanical
CVHH-SVX001A-EN 21

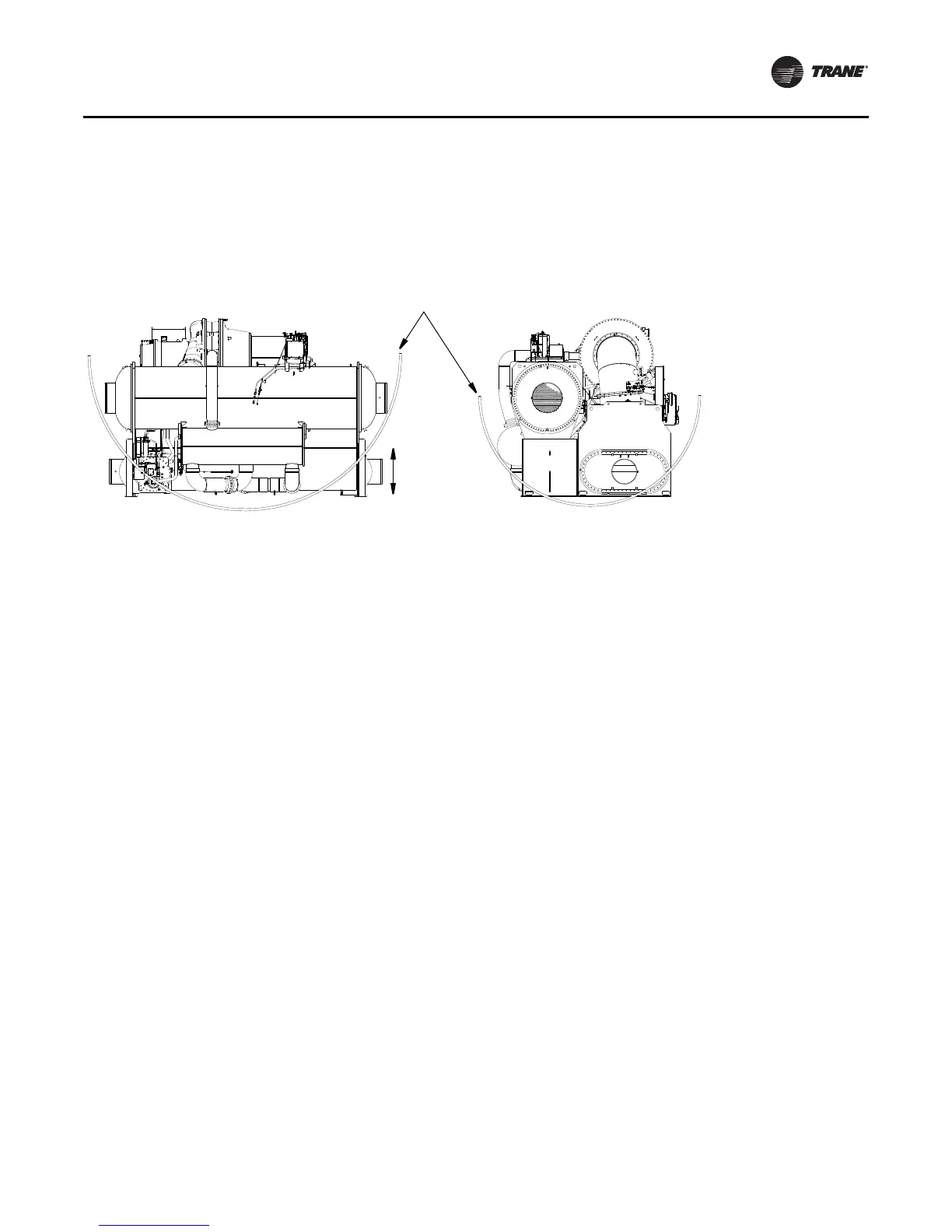

2. Suspend a clear plastic tube along the length of the
chiller as shown in the following figure.
3. Fill the tube with water until the level aligns with the
punch mark at one end of the chiller.
4. Check the water level at the opposite mark. If the water
level does not align with the punch mark, use full
length shims to raise one end of the chiller until the
water level at each end of the tube aligns with the
punch marks at both ends of the chiller.
5. Once the unit is level across its length, repeat
Step 1
through
Step 3 to level the unit across its width.
Note: Use of a laser level is an acceptable alternative
method to level the unit.
Important: Immediately report any unit damage
incurred during handling or installation at
the job site to the Trane sales office.
Figure 9.
