Installation: Controls
44 CVHH-SVX001A-EN
Installing the Tracer AdaptiView
Display
The Tracer AdaptiView display is boxed, shrink-wrapped,
and located behind the control panel during shipment. The
Tracer AdaptiView display must be installed at the site.
Important: The Tracer AdaptiView display and display
arm are to be installed by Trane, or an agent
of Trane, for best results.

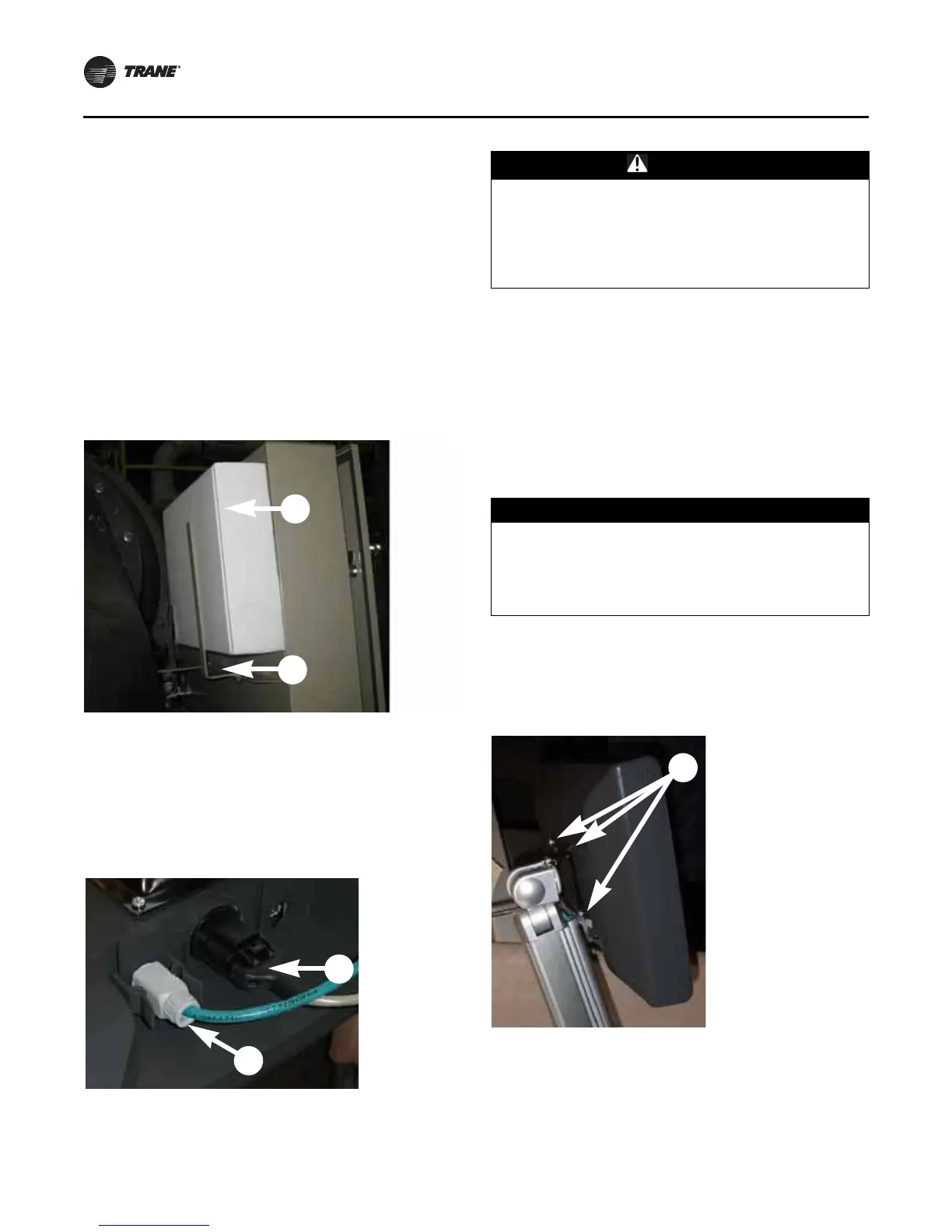

1. Unwrap the control panel and display arm. Locate the
box containing the Tracer AdaptiView display behind
the control panel (labeled A).
2. After the box containing the display has been
removed, remove the shipping bracket from the back
of the control panel (B).
3. Remove the Tracer AdaptiView display from the box.
Note: Screws are M4 (metric size 4), 6 to 8 mm long,
and are shipped with the display.
4. Plug the power cable (C) and the Ethernet cable (D) into
the bottom of the display.
Note: Both cables are already present and extend
from the end of the display arm.
5. Adjust the Tracer AdaptiView display support arm so
the base plate that attaches to the Tracer AdaptiView
display is horizontal.
Note: Review
Adjusting the Tracer AdaptiView Display
Arm, p. 45
prior to attaching the display as some
adjustments may be required prior to attaching the
display to the support arm base.
6. Position the Tracer AdaptiView display, with the LCD
screen facing up, on top of the display support arm
base plate.
Note: Ensure the Trane logo is positioned so that it
will be at the top when the Tracer AdaptiView
display is attached to the display support arm.
7. Align the four holes in the display with the bolt holes
in the display support arm base plate.
8. Attach the Tracer AdaptiView display to the display
support arm base plate (E) using the M4 (metric size 4)
screws referenced in
Step 3.
A
B
C
D
CAUTION
Tension in Display Support Arm!
Failure to ensure that the support arm is in the full
upright position when removing the Tracer AdaptiView
display from the support arm could result in
unexpected movement of the spring-loaded support
arm which could result in personal injury.
NOTICE:
Do Not Drop Display!
Failure to keep a firm grip on the Tracer AdaptiView
display as you position the display on top of the
support arm base place could result in equipment or
property-only damage.
E
