Installation: Controls

CVHH-SVX001A-EN 43

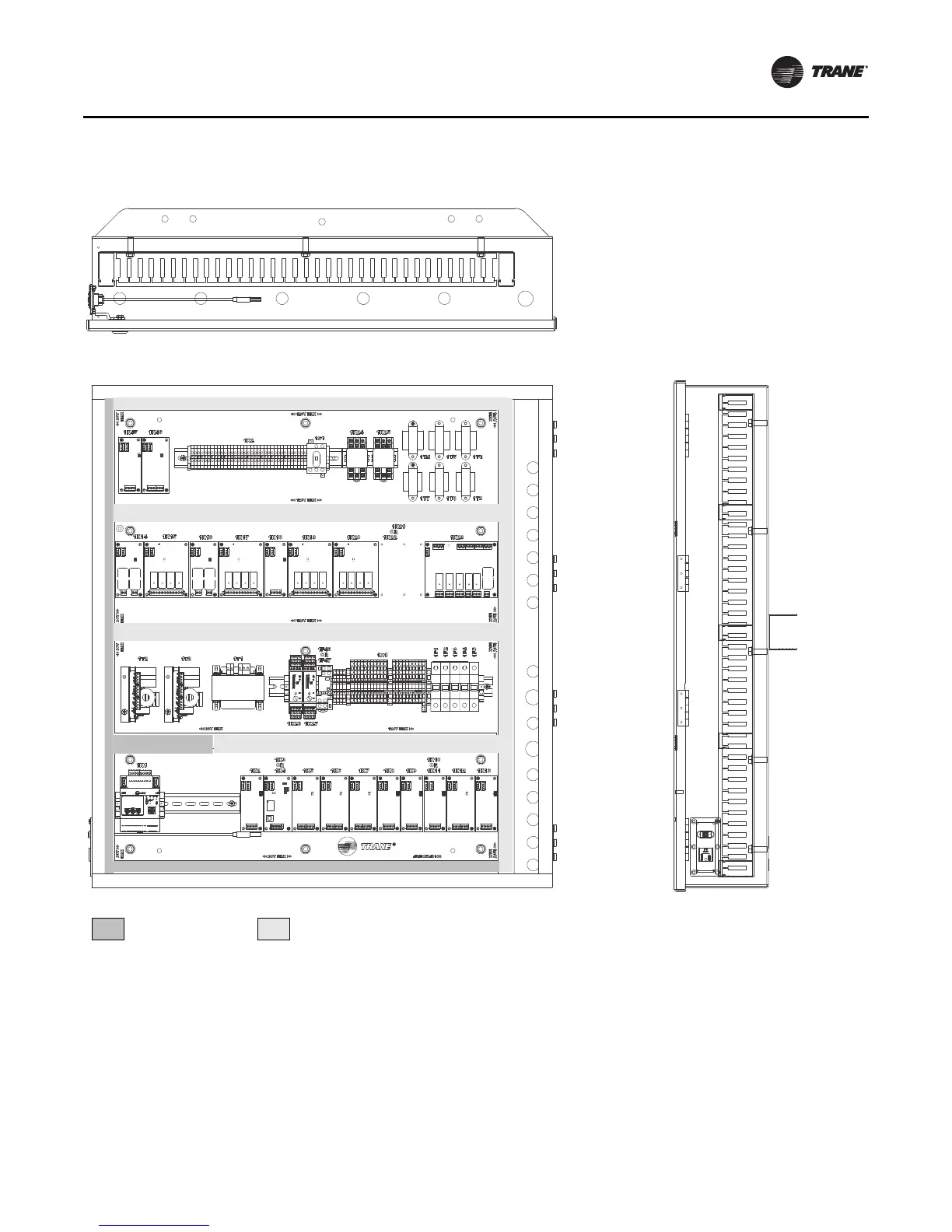

Figure 28. Control panel: Tracer AdaptiView main unit assembly (showing low voltage and higher voltage areas for

proper routing of field wiring)

30 Volt Maximum 30–120 Volt Maximum
