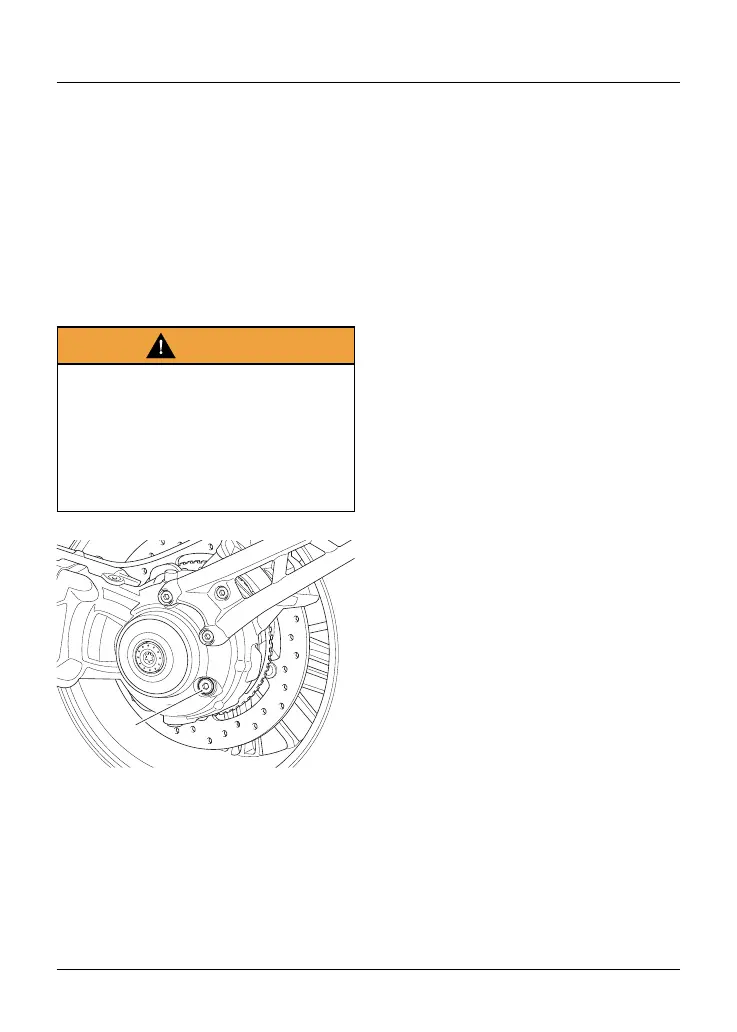

Maintenance
133
Final Drive Unit
Check the final drive unit for oil leaks
in accordance with the scheduled
maintenance chart.
Check the final drive unit for oil changes
in accordance with the scheduled
maintenance chart.
Final Drive Unit Oil Level
Adjustment
Warning
Under no circumstances should the
final drive unit be disassembled.
Failure to observe this warning could
lead to a malfunction of the final drive
unit causing lock-up of the rear wheel
leading to loss of motorcycle control
and an accident.
1
1. Filler level plug
To adjust the oil level in the final drive
unit:
Remove the filler level plug.
Fill the final drive unit with fully
synthetic 75W/90 hypoid oil that
meets specification API Service Level
GL5, such as Castrol SAF-XO fully
synthetic hypoid oil, until the level of
oil inside the final drive unit is level
with the bottom of the filler.
Reinstall the filler level plug and
tighten to 18 lbf ft (25 Nm).
