Triumph Rocket 3 R User Manual

Maintenance
155
Caution
Do not cover the headlight or lens with
any item likely to obstruct air flow to,
or prevent heat escaping from, the
headlight lens.
Covering the headlight lens during
operation with items of clothing,
luggage, adhesive tape, devices
intended to alter or adjust the
headlight beam or non genuine
headlight lens covers will cause the
headlight lens to overheat and distort,
causing irreparable damage to the
headlight assembly.
Damage caused by overheating is
not considered a manufacturing
defect and will not be covered under
warranty.
If the headlight must be covered
during use - such as taping of
the headlight lens required during
closed-course conditions - the
headlight must be disconnected.
Caution
If a fault occurs with the headlight
unit, then a message will be shown
in the instrument display and the
headlights will only be available in the
dipped beam mode.
Contact an authorized Triumph dealer
as soon as possible to have the fault
checked and rectified.
Daytime Running Light (DRL)
(if equipped)
The Daytime Running Light (DRL) is
situated within the headlight assembly
and is a sealed, maintenance-free
LED unit. The headlight unit must be
replaced in the event of the failure of
the DRL.
Headlight Adjustment
The headlight unit can only be adjusted
vertically. There is no horizontal
adjustment.
The vertical beams of the left and right
hand headlights can only be adjusted
together. Independent adjustment is
not possible.
The headlight unit is equipped with
easily accessible adjuster bolts to allow
the vertical adjustment to be corrected
when the motorcycle is fully loaded.

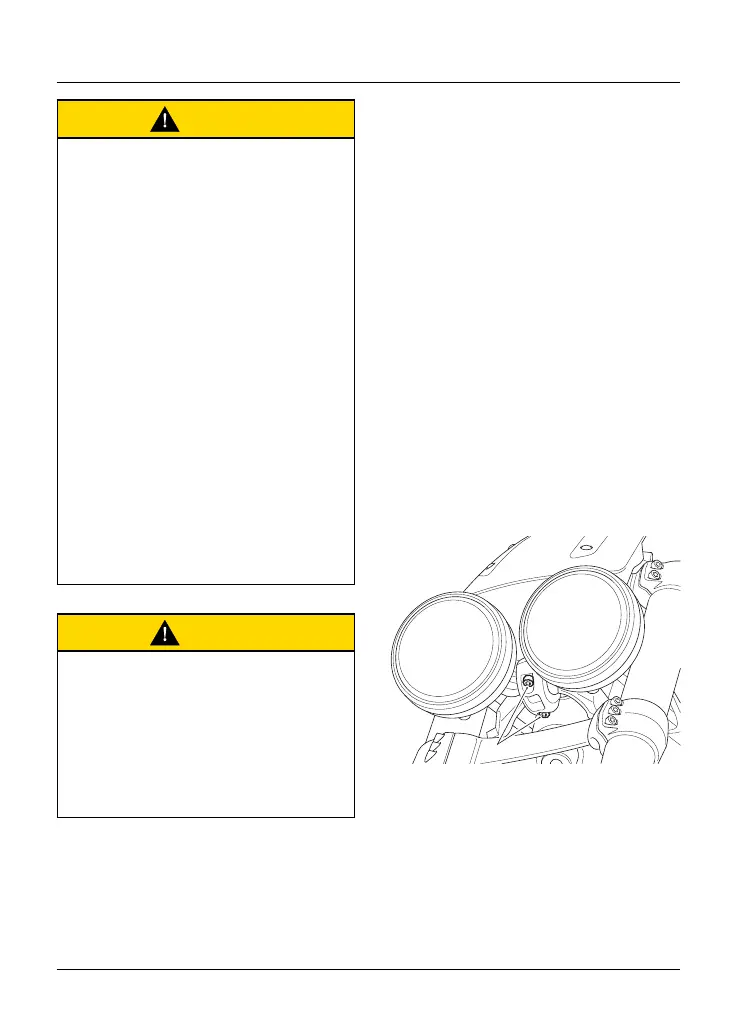

1
1. Headlight bracket bolts
To adjust the vertical headlight beam:
•
Switch the ignition on. The engine
does not need to be running.
•
Switch the headlight dipped beam
on.

Triumph Rocket 3 R Specifications

General

Displacement	2458 cc
Bore x Stroke	110.2 mm x 85.9 mm
Compression Ratio	10.8:1
Max Torque	221 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Gearbox	6-speed
Swingarm	Single-sided, cast aluminium
Front Tyre	150/80 R17 V
Rear Tyre	240/50 R16 V
Seat Height	773 mm
Dry Weight	291 kg
Wheelbase	1677 mm
Engine Type	Liquid-cooled, DOHC, inline 3-cylinder
Max Power	165 hp (123 kW) @ 6000 rpm
Exhaust	Stainless steel 3 into 1 headers with 3 exit silencer
Clutch	Hydraulic, torque assist
Frame	Full aluminium frame
Front Suspension	Showa 47 mm upside-down
Rear Suspension	Showa monoshock with piggyback reservoir, adjustable
Front Brakes	Brembo Stylema® 4-piston radial monobloc calipers
Rear Brakes	Brembo 4-piston monobloc caliper
Front Wheel	17 x 3.5 in
Rear Wheel	16 x 7.5 in
Fuel Tank Capacity	18 L
Instrument Display	TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes
