Triumph Rocket 3 R User Manual

Maintenance
142
Rear Suspension
Rear Suspension Settings
The details shown in the tables are only
a guide. Setting requirements may vary
for rider and passenger weight and
personal preferences.
Preload Suspension Settings
Loading Condition Rear Spring Preload
1
Solo Riding
Standard
Fully Counter-
clockwise (Minimum)
Comfort
(Softer)
Fully Counter-
clockwise (Minimum)
Sport (Firmer)
Fully Counter-
clockwise (Minimum)
Solo with Loaded Luggage 9
Rider and Passenger 0 (Maximum)
Rider and Passenger with
Loaded Luggage
0 (Maximum)
1
Number of clicks counterclockwise from the
fully clockwise (maximum) position.
Damping Suspension Settings
Loading Condition
Rear
Rebound
Damping
1
Rear
Compression
Damping
1
Solo Riding
Standard 3 3
Comfort
(Softer)
Fully
Counter-
clockwise
Fully
Counter-
clockwise
Sport
(Firmer)
2 2
Solo with Loaded
Luggage
2 2
Rider and Passenger 0.25 0
Rider and Passenger
with Loaded Luggage
0.25 0
1
Number of turns counterclockwise from the
fully clockwise (closed) position noting that the
first turn is counted as one.
Rear Suspension Spring Preload
Adjustment

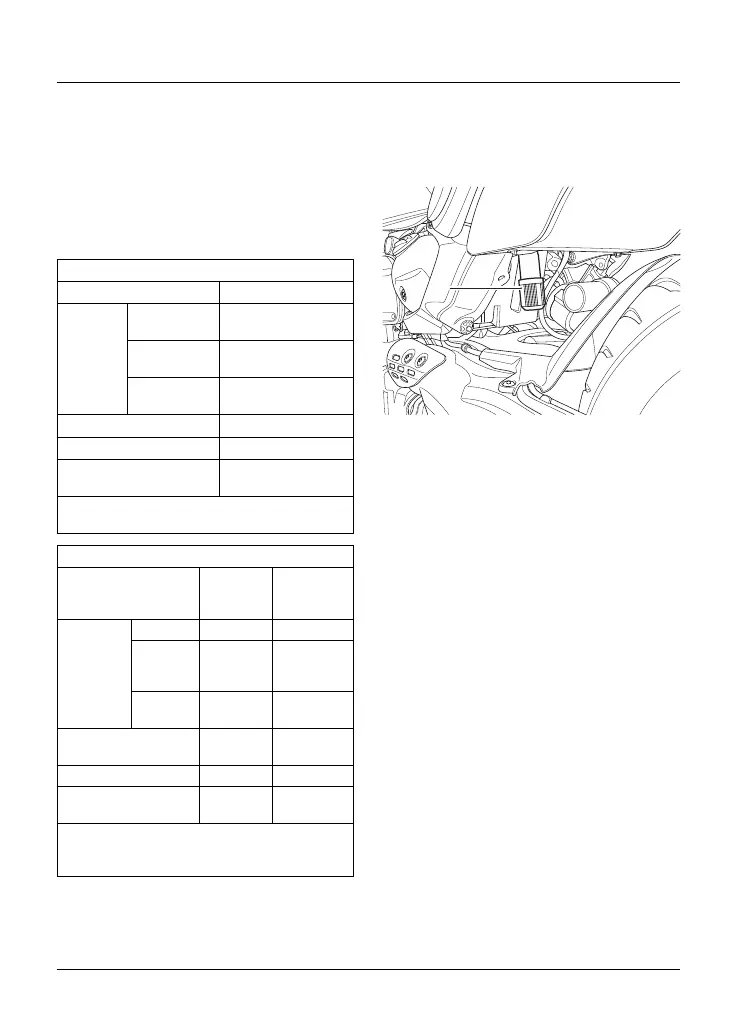

The spring preload adjuster is located
next to the rear suspension unit.
1
1. Spring preload adjuster
To change the spring preload setting:
•
Look upwards from the bottom of
the spring preload adjuster to the
top of the spring preload adjuster,
and rotate the adjuster clockwise
to increase and counterclockwise to
decrease.
•
Always count the number of
adjuster clicks/turns counter-
clockwise from the fully clockwise
position.
Note
The motorcycle is delivered from the
factory with the spring preload setting
in the fully counterclockwise (minimum)
position.

Triumph Rocket 3 R Specifications

General

Displacement	2458 cc
Bore x Stroke	110.2 mm x 85.9 mm
Compression Ratio	10.8:1
Max Torque	221 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Gearbox	6-speed
Swingarm	Single-sided, cast aluminium
Front Tyre	150/80 R17 V
Rear Tyre	240/50 R16 V
Seat Height	773 mm
Dry Weight	291 kg
Wheelbase	1677 mm
Engine Type	Liquid-cooled, DOHC, inline 3-cylinder
Max Power	165 hp (123 kW) @ 6000 rpm
Exhaust	Stainless steel 3 into 1 headers with 3 exit silencer
Clutch	Hydraulic, torque assist
Frame	Full aluminium frame
Front Suspension	Showa 47 mm upside-down
Rear Suspension	Showa monoshock with piggyback reservoir, adjustable
Front Brakes	Brembo Stylema® 4-piston radial monobloc calipers
Rear Brakes	Brembo 4-piston monobloc caliper
Front Wheel	17 x 3.5 in
Rear Wheel	16 x 7.5 in
Fuel Tank Capacity	18 L
Instrument Display	TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes
