Maintenance
156
Loosen the headlight bracket bolts
securing the headlight unit to the
headlight bracket sufficiently to
allow restricted movement of the
headlights.

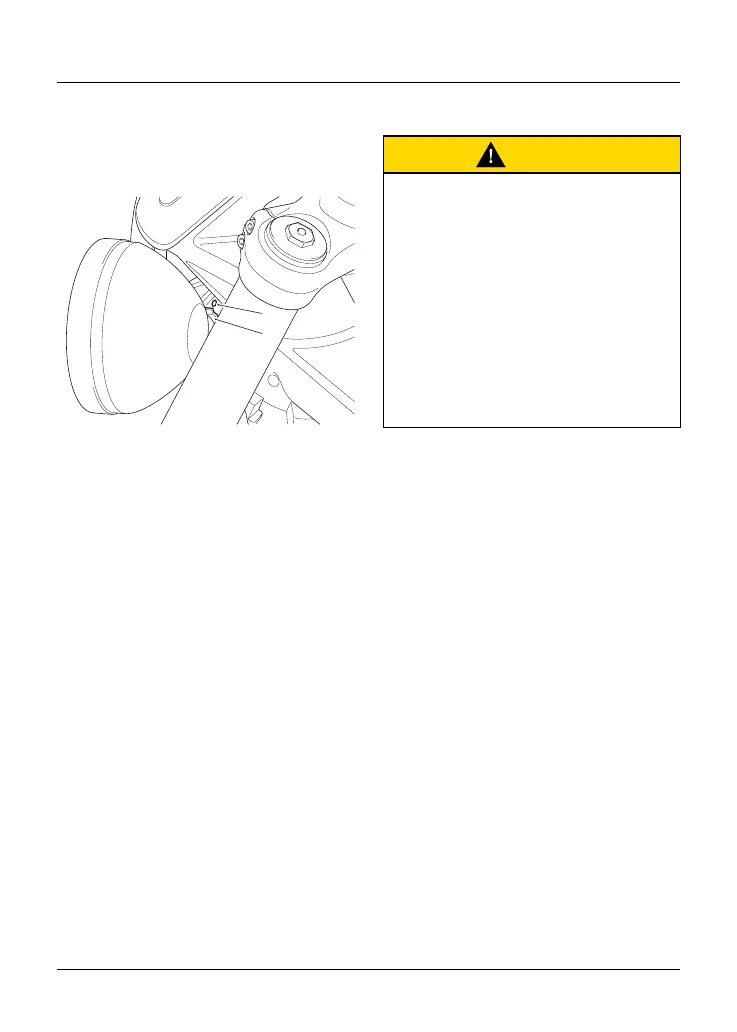

1
2
1. Front subframe alignment mark
2. Headlight bracket mark
Move the headlight unit downwards
or upwards to adjust the headlight
beam accordingly.
To return the headlight alignment to
the factory standard position, move
the headlight unit until the front
subframe alignment mark and the
headlight bracket mark are aligned.
Tighten the headlight bracket bolts
to 15 Nm.
Recheck the headlight beam
settings.
Switch the headlights off when
the headlight beam settings are
satisfactory.
Bulb Replacement
Caution
The use of non-approved bulbs may
result in damage to lenses and other
lighting unit components.
In addition, the use of bulbs of
incorrect wattage may cause the
chassis ECM to cut power to affected
lighting circuits.
Use genuine Triumph supplied bulbs as
specified in the Triumph Parts Catalog.
Always have replacement bulbs
installed by an authorized Triumph
dealer.
Headlights
The headlight unit is a sealed,
maintenance free LED unit. The
headlight unit must be replaced in the
event of the failure of the headlight.
Turn Signal Lights
The motorcycle is equipped with either
LED or bulb turn signal lights.
LED Turn Signal Lights
The turn signal light units are sealed,
maintenance free LED units.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Triumph Rocket 3 R and is the answer not in the manual?

Triumph Rocket 3 R Specifications

General IconGeneral
Displacement2458 cc
Bore x Stroke110.2 mm x 85.9 mm
Compression Ratio10.8:1
Max Torque221 Nm @ 4, 000 rpm
Fuel SystemMultipoint sequential electronic fuel injection
Final DriveShaft
Gearbox6-speed
SwingarmSingle-sided, cast aluminium
Front Tyre150/80 R17 V
Rear Tyre240/50 R16 V
Seat Height773 mm
Dry Weight291 kg
Wheelbase1677 mm
Engine TypeLiquid-cooled, DOHC, inline 3-cylinder
Max Power165 hp (123 kW) @ 6000 rpm
ExhaustStainless steel 3 into 1 headers with 3 exit silencer
ClutchHydraulic, torque assist
FrameFull aluminium frame
Front SuspensionShowa 47 mm upside-down
Rear SuspensionShowa monoshock with piggyback reservoir, adjustable
Front BrakesBrembo Stylema® 4-piston radial monobloc calipers
Rear BrakesBrembo 4-piston monobloc caliper
Front Wheel17 x 3.5 in
Rear Wheel16 x 7.5 in
Fuel Tank Capacity18 L
Instrument DisplayTFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes
