Triumph Rocket 3 R User Manual

Instruments
50

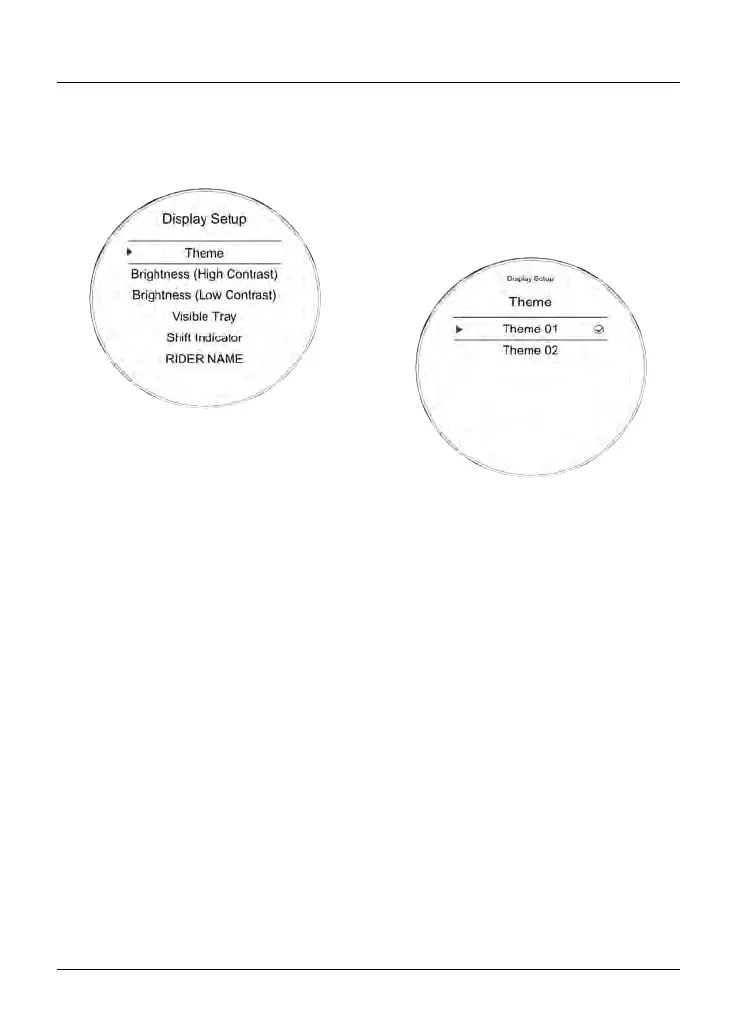

Display Setup Menu
From the Main menu, select Display
Setup and push the joystick button to
confirm.
The Display Setup menu allows access
to the following options:
•
Theme
• Brightness (High Contrast)
• Brightness (Low Contrast)
• Visible Tray
• Shift Indicator
• Rider Name
• Language
• Units
• Clock
• Date.
Display Setup - Themes
To select a different theme:
•
From the Display Setup menu, push
the joystick center to display the
Theme menu.
•
Press the joystick center to select
the required theme.
The new theme will be shown and
saved. Press the HOME button to exit.

Triumph Rocket 3 R Specifications

General

Displacement	2458 cc
Bore x Stroke	110.2 mm x 85.9 mm
Compression Ratio	10.8:1
Max Torque	221 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Gearbox	6-speed
Swingarm	Single-sided, cast aluminium
Front Tyre	150/80 R17 V
Rear Tyre	240/50 R16 V
Seat Height	773 mm
Dry Weight	291 kg
Wheelbase	1677 mm
Engine Type	Liquid-cooled, DOHC, inline 3-cylinder
Max Power	165 hp (123 kW) @ 6000 rpm
Exhaust	Stainless steel 3 into 1 headers with 3 exit silencer
Clutch	Hydraulic, torque assist
Frame	Full aluminium frame
Front Suspension	Showa 47 mm upside-down
Rear Suspension	Showa monoshock with piggyback reservoir, adjustable
Front Brakes	Brembo Stylema® 4-piston radial monobloc calipers
Rear Brakes	Brembo 4-piston monobloc caliper
Front Wheel	17 x 3.5 in
Rear Wheel	16 x 7.5 in
Fuel Tank Capacity	18 L
Instrument Display	TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes
