Triumph Rocket 3 R User Manual

General Information
84
Rider Seat
Warning
To prevent detachment of the seat
during riding, after installation always
grasp the seat and pull firmly upwards.
If the seat is not correctly secured in
the lock, it will detach from the lock.
A loose or detached seat may cause
loss of motorcycle control and an
accident.
To remove the rider seat:
•
Insert the ignition key into the seat
lock and turn it counterclockwise
while pressing down on the rear of
the seat.
•
This will release the rider seat from
its lock.
•
Lift the seat up from the rear, and
slide the seat rearwards to remove
it from the motorcycle.
4
3
2
1

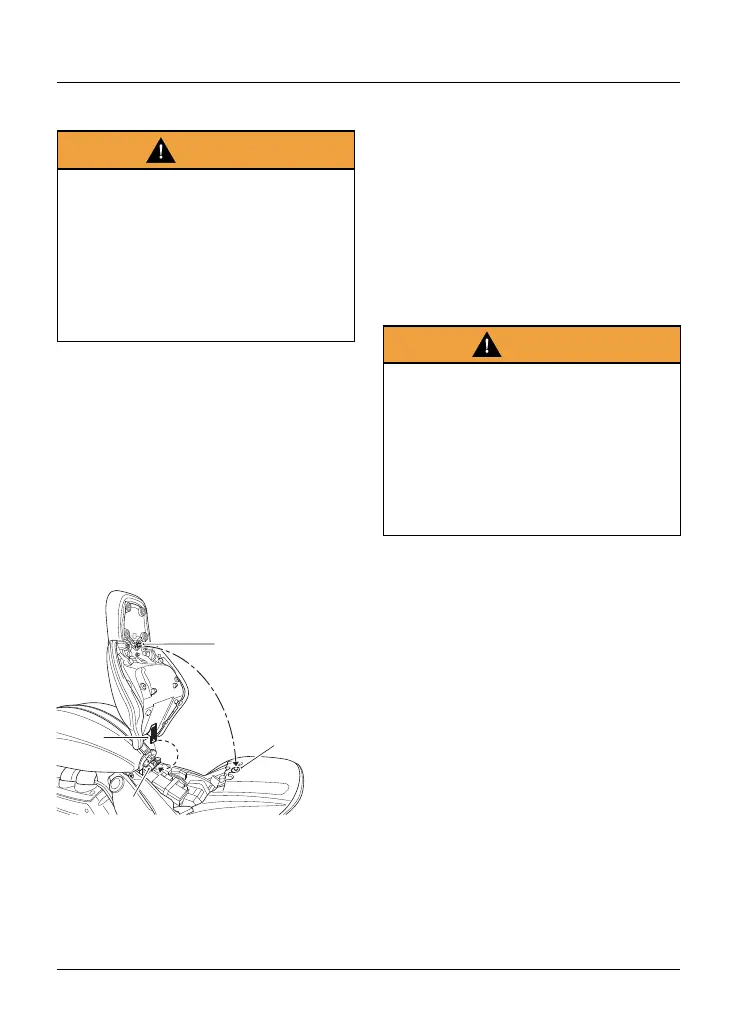

1. Locating peg
2. Locating peg lock
3. Seat bracket
4. Fuel tank hinge
To install the rider seat:
•
Position the seat's front bracket
under the fuel tank hinge.
•
Align the locating peg to the lock.
• Press the seat down engaging the
locating peg in the lock. An audible
click can be heard when the seat is
fully engaged.
Rider and Passenger Seat
Warning
To prevent detachment of the seat
during riding, after installation always
grasp the seat and pull firmly upwards.
If the seat is not correctly secured in
the lock, it will detach from the lock.
A loose or detached seat may cause
loss of motorcycle control and an
accident.
The rider and passenger seats are
joined together to form one seat for
ease of removal and installation.
To remove the rider and passenger seat:
•
Insert the ignition key into the seat
lock and turn it counterclockwise
while pressing down on the rear of
the seat.
•
This will release the seat from its
lock.

Triumph Rocket 3 R Specifications

General

Displacement	2458 cc
Bore x Stroke	110.2 mm x 85.9 mm
Compression Ratio	10.8:1
Max Torque	221 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Gearbox	6-speed
Swingarm	Single-sided, cast aluminium
Front Tyre	150/80 R17 V
Rear Tyre	240/50 R16 V
Seat Height	773 mm
Dry Weight	291 kg
Wheelbase	1677 mm
Engine Type	Liquid-cooled, DOHC, inline 3-cylinder
Max Power	165 hp (123 kW) @ 6000 rpm
Exhaust	Stainless steel 3 into 1 headers with 3 exit silencer
Clutch	Hydraulic, torque assist
Frame	Full aluminium frame
Front Suspension	Showa 47 mm upside-down
Rear Suspension	Showa monoshock with piggyback reservoir, adjustable
Front Brakes	Brembo Stylema® 4-piston radial monobloc calipers
Rear Brakes	Brembo 4-piston monobloc caliper
Front Wheel	17 x 3.5 in
Rear Wheel	16 x 7.5 in
Fuel Tank Capacity	18 L
Instrument Display	TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes
