General Information
85
• Lift the seat up from the rear, and
slide the seat rearwards to remove
it from the motorcycle.
4
3
2
1

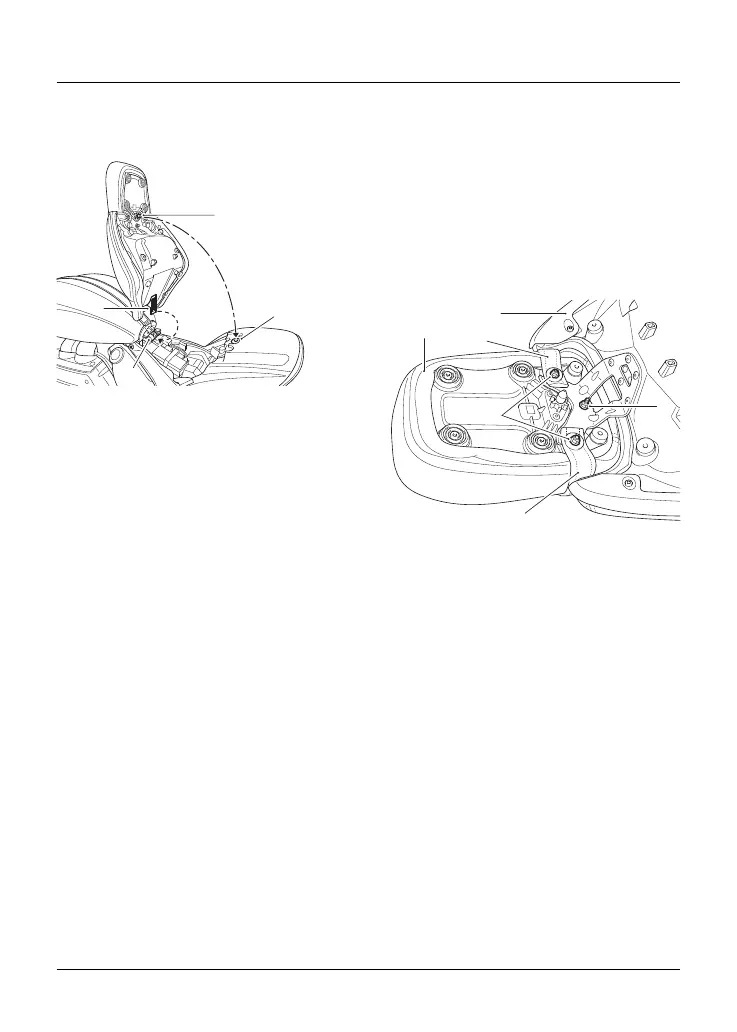

1. Locating peg
2. Locating peg lock
3. Seat bracket
4. Fuel tank hinge
To install the rider and passenger seat:
•
Position the seat's front bracket
under the fuel tank hinge.
•
Align the locating peg to the lock.
• Press the seat down engaging the
locating peg in the lock. An audible
click can be heard when the seat is
fully engaged.
Seat Options
There are several different combinations
of rider and passenger seats available.
A passenger seat can be mounted to
the rider seat using the seat bracket. A
rider infill section can also be mounted
to the rider seat instead of a passenger
seat. The attachment procedure is the
same for a passenger seat or a rider
infill section.
5
4
1
3
2
2
1. Passenger seat
2. Passenger seat straps
3. Rider seat
4. Seat washers and nuts
5. Main seat nut
To remove the passenger seat or rider
infill section from the rider seat:
•
Release the two seat washers and
nuts that secure the seat strap in
place, if equipped.
• Loosen the main seat nut.
• Remove the passenger seat or rider
infill section.
To install the passenger seat or rider
infill section to the rider seat:
•
Align the passenger seat or rider
infill section to the seat bracket.
•
Align the seat strap, if applicable.

Triumph Rocket 3 R Specifications

General

Displacement	2458 cc
Bore x Stroke	110.2 mm x 85.9 mm
Compression Ratio	10.8:1
Max Torque	221 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Gearbox	6-speed
Swingarm	Single-sided, cast aluminium
Front Tyre	150/80 R17 V
Rear Tyre	240/50 R16 V
Seat Height	773 mm
Dry Weight	291 kg
Wheelbase	1677 mm
Engine Type	Liquid-cooled, DOHC, inline 3-cylinder
Max Power	165 hp (123 kW) @ 6000 rpm
Exhaust	Stainless steel 3 into 1 headers with 3 exit silencer
Clutch	Hydraulic, torque assist
Frame	Full aluminium frame
Front Suspension	Showa 47 mm upside-down
Rear Suspension	Showa monoshock with piggyback reservoir, adjustable
Front Brakes	Brembo Stylema® 4-piston radial monobloc calipers
Rear Brakes	Brembo 4-piston monobloc caliper
Front Wheel	17 x 3.5 in
Rear Wheel	16 x 7.5 in
Fuel Tank Capacity	18 L
Instrument Display	TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes
