Triumph Rocket 3 R - Page 18

Parts Identification
18

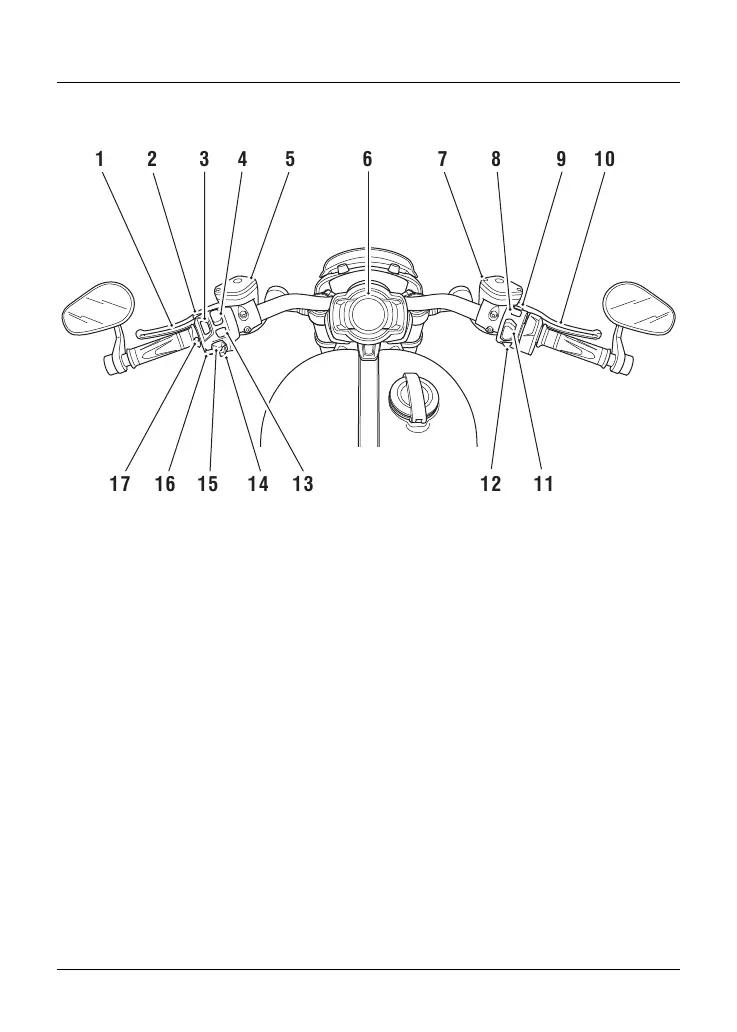

Rider View Parts Identification
4
5
6
1
7
1
6
1
5
1
4
1
3
1
2
1
1
8
7
9
1
0
2
1
3
1. Clutch lever
2. High beam button
3. Daytime running lights (if equipped)
4. Cruise control adjust button
5. Clutch fluid reservoir
6. Multifunction display screen
7. Front brake fluid reservoir
8. Hazard warning lights button
9. Steering lock button
10. Front brake lever
11. Engine start/stop switch
12. Home button
13. MODE button
14. Joystick button
15. Turn signal switch
16. Horn button
1 7. Heated grips switch (if equipped)
