General Information
88
Warning
Avoid trapping fingers and clothing
when opening and closing the
passenger footrests.
Always take care when using the
passenger footrests to avoid personal
injury and damage to clothing and the
motorcycle.

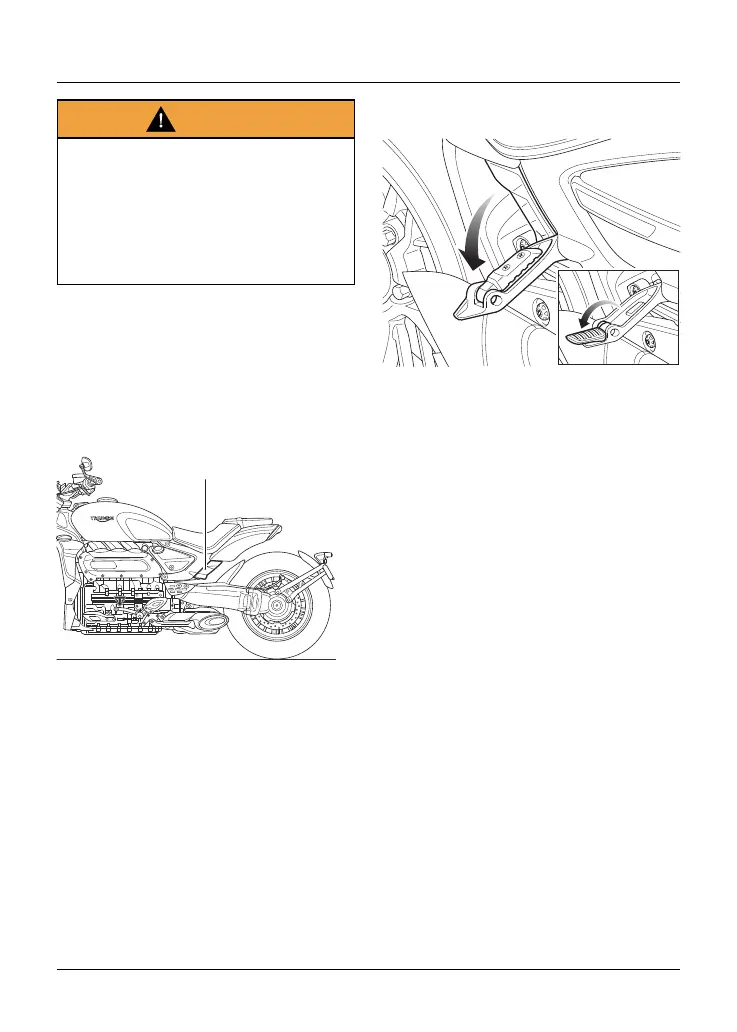

Passenger Footrests
There are passenger footrests located
on both sides of the motorcycle below
the rider seat. They have been designed
to close into the motorcycle when not in
use.
1
1. Passenger footrest section closed into
motorcycle
To open the passenger footrests when
closed into the motorcycle:
•
From the top of the passenger
footrest section, carefully pull the
footrest section down and outwards
until it stops in position.
•
Lift upwards and extend out the
footrest until it stops in position.
Using the Passenger Footrests
To close the passenger footrests into
the motorcycle:
•
Fold the footrest into the footrest
section until it is firmly in place.
•
Lift the folded footrest section up
and push inward to the motorcycle
until it is firmly in place.
Adjustable Footrests
This motorcycle is equipped with
adjustable rider and passenger
footrests that can be extended for a
more comfortable footrest position. An
extension socket is located under the
left hand side panel in the tool kit, see
page 90.
To adjust the footrests, it is
recommended that the motorcycle is
taken to a Triumph dealer to extend and
adjust the footrests accordingly.

Triumph Rocket 3 R Specifications

General

Displacement	2458 cc
Bore x Stroke	110.2 mm x 85.9 mm
Compression Ratio	10.8:1
Max Torque	221 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Gearbox	6-speed
Swingarm	Single-sided, cast aluminium
Front Tyre	150/80 R17 V
Rear Tyre	240/50 R16 V
Seat Height	773 mm
Dry Weight	291 kg
Wheelbase	1677 mm
Engine Type	Liquid-cooled, DOHC, inline 3-cylinder
Max Power	165 hp (123 kW) @ 6000 rpm
Exhaust	Stainless steel 3 into 1 headers with 3 exit silencer
Clutch	Hydraulic, torque assist
Frame	Full aluminium frame
Front Suspension	Showa 47 mm upside-down
Rear Suspension	Showa monoshock with piggyback reservoir, adjustable
Front Brakes	Brembo Stylema® 4-piston radial monobloc calipers
Rear Brakes	Brembo 4-piston monobloc caliper
Front Wheel	17 x 3.5 in
Rear Wheel	16 x 7.5 in
Fuel Tank Capacity	18 L
Instrument Display	TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes
