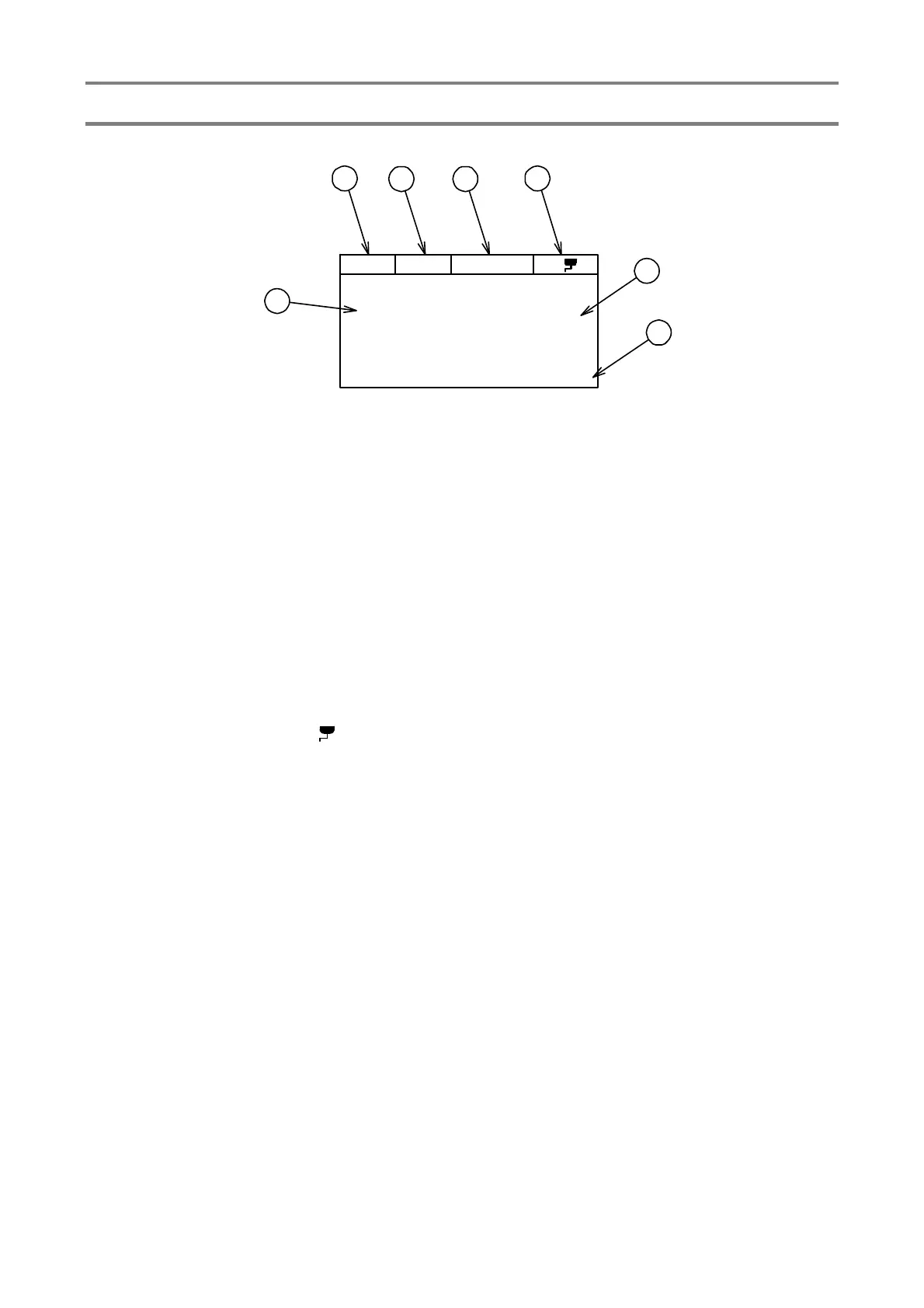

2.3 Display panel
⑰Memory No.
Displays memory No. (No.1 to No.10)
⑱Measurement
voltage
Displays the output voltage setting (25V to 1050V)
⑲Resistance range
Displays the resistance range (2MΩ, 20MΩ, 200MΩ, 2000MΩ, AUTO)
⑳Start/On line
display
Displays the status of the start input and the online status of RS-232C
Start input
“M” ：MANUAL
“R1” ：REMOTE 1
“R2” ：REMOTE 2
Status of online
“
” ：RS-232C communication function ON
㉑Measured value
Displays the measured value
㉒Comparator
Displays the measured value of HIGH and LOW comparator
㉓Function
Displays the function guide of F1 to F4.
F4 displays the status of key lock.
Key lock ON/OFF can be done by press for more than 3 s. Reverse display is shown
during key lock condition.
2000 MΩ1000VNo.10
MΩ
000.0
999.9
MASKTIMER
99.9 s99.9 s
１２．３４
MΩ
[LOCK][][SET]
HI SET
LO SET
MΩ
