Tsuruga 3587 - Equipment Setting

MODEL 3587 - 20 -
3.8 Equipment setting
External control, sampling cycle, power supply frequency, connection check, buzzer
setting can be done by equipment setting.
SELECT GENERAL SET

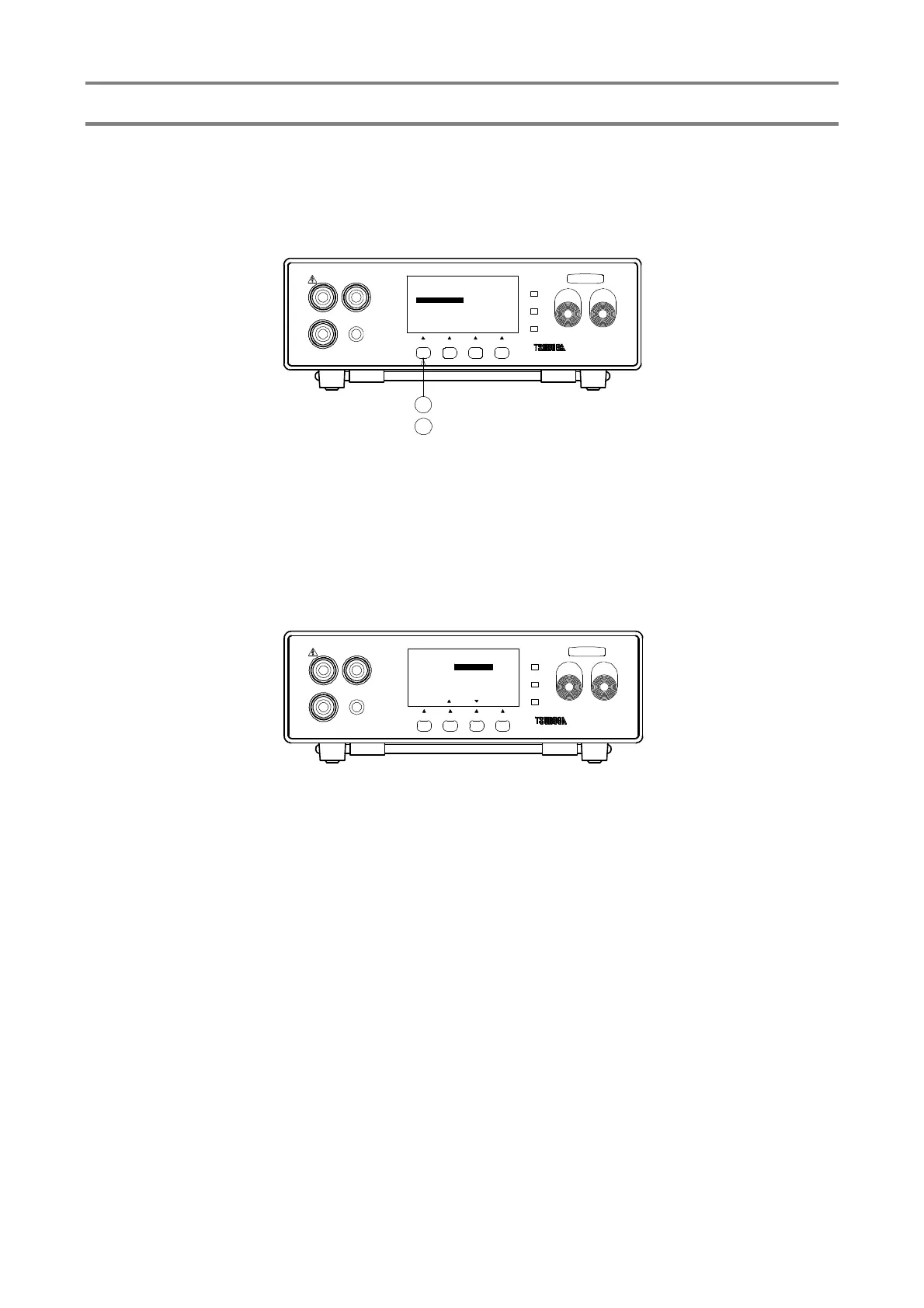

① Press the F1 [SET] key in the standby state.
Display changes to SETTING MODE.
② Press F1 [SEL] key.to select GENERAL SET
If F4 [ENT] is pressed, display changes to equipment setting.
Basic operation
Operation key
F1 [SEL] ：Select Setting Mode.
Back ground color of selected mode is changed.
F2 [▲], F3 [▼]：Setting can be changed.
F4 [ENT] ：Memorize the setting and display returns to measurement mode.
