MODEL 3587 - 4 -
2. Name of parts

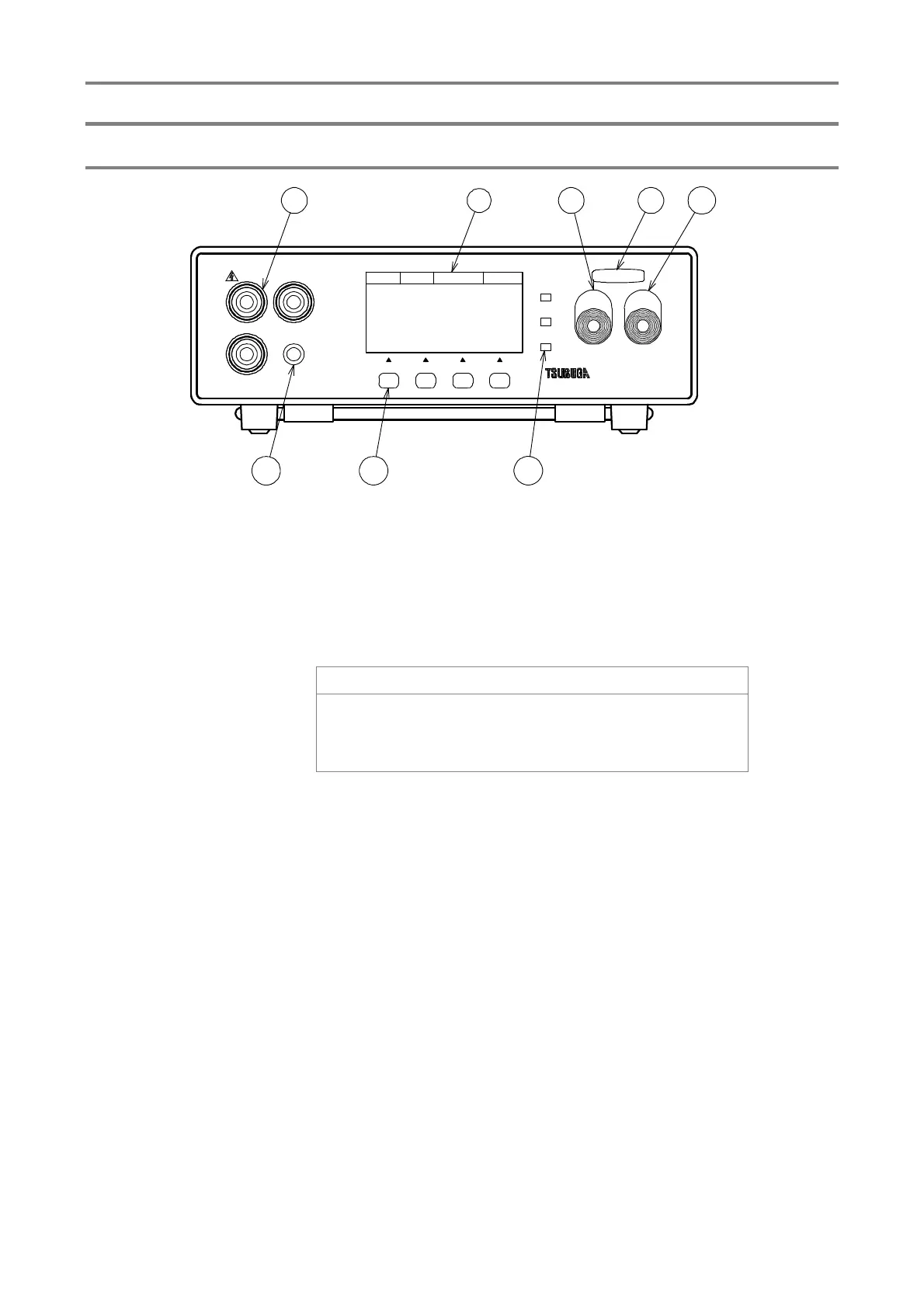

2.1 Front panel
①Measuring
terminal
HIGH：＋Measuring terminal When the sample to be measured is ground, it is to be
connected to the grounded side of the sample.
LOW：－Measuring terminal To be connected to the non-grounded side of the
sample.
GUARD：LOW(Side) The terminal to guard the leak current of LOW
! Caution
If the HIGH terminal is short circuited to the ground, the
LOW terminal becomes high voltage, which is very dangerous.
Do not touch the measuring terminal during the measurement
(TEST lights up).
②Remote input
When the start input is set to REMORE 2, connect a probe with a switch (Option).
It becomes effective during setting of REMORE 2 only.
This is an input that controls ON / OFF of measurement voltage.
③Display Portion
This is green graphic display.
It displays the measured value and various settings, etc.
④TEST LAMP
Test lamp lights up during measurement. It blinks during the automatic discharge
function.
⑤START KEY
Start key is turned on to start the measurement.
⑥STOP KEY
Stop key is used to stop the measurement.
⑦Judgement lamp HIGT：Red lamp is lit up when the measured value exceeds the high limit value.
GOOD：Yellowish green lamp is lit up with a good judgement.
LOW：Red lamp is lit up when the measured value exceeds the low limit value.
⑧Function key
F1 to F4 these keys are used to set various measurement conditions and comparators.
HIGH
GOOD
LOW
START STOP
３５８７ＭＯＤＥＬ
ＬＯＷ
ＲＥＭＯＴＥ
ＧＵＡＲＤ
ＨＩＧＨ
[ SET ] [ ] [ LOCK ]
MΩ
１２．３４
99.9 s
99.9 s
TIMER MASK
999.9
000.0
MΩ
No.10 1000V 2000 MΩ M
F3F2F1
１
２
３ ４５ ６
７
HI SET
LO SET
MΩ
８
TEST
[RCL]
F4
To Next Page
