- 37 - MODEL 3587
6. Communication (RS-232C)
Output of start / stop measurement, control of memory selection, measurement data
and judgment result can be obtained by RS - 232C communication.
6.1 Specification
6.1.1 Communication specification
Transmission system ：Start-stop synchronization Full duplex
Transmission rate ：9600, 19200, 34800bps
(Factory setting 9600bps during delivery)
Data bit length ：8 bit
Stop bit ：1 bit
Parity bit ：None, even number, odd number
(During shipment, set : None)
Delimiter ：LF (0AH)
Connecter ：D-sub9 Pin （Male）

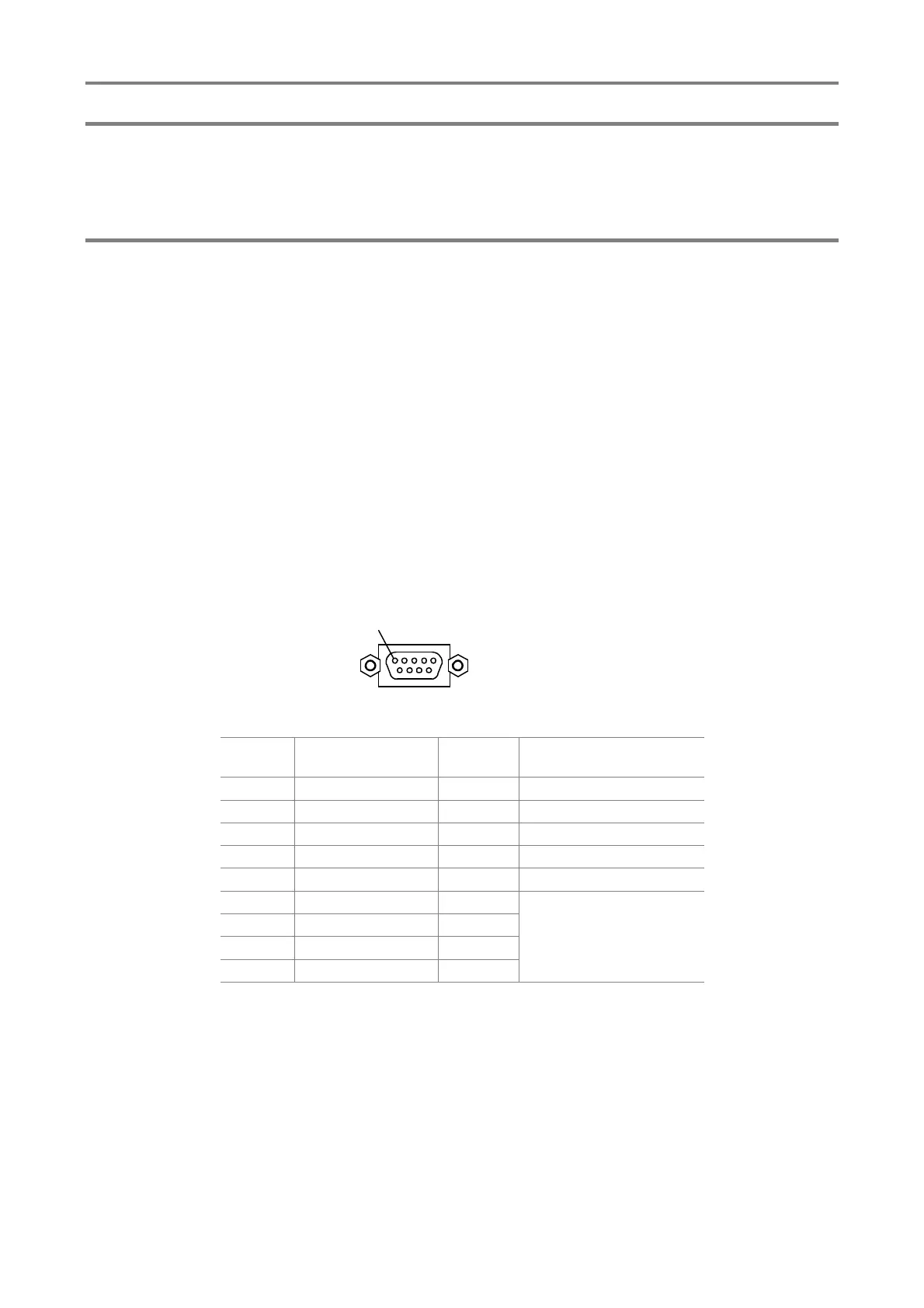

6.1.2 Connecter pin arrangement
RS-232Cconnecter
RS-232C connecter arrangement
Pin No.
Instrument signal
JIS (RS-232C)
Direction Function
1 not used
2 RD (RXD) Input Received data
3 SD (TXD) output Transmission data
4 not used
5 SG (GND) Ground signal
6
not used
7
8
9
1P
D-sub 9P
