Tsuruga 3587 - Use in Panel-Mount

MODEL 3587 - 46 -
8 Use in panel-mount

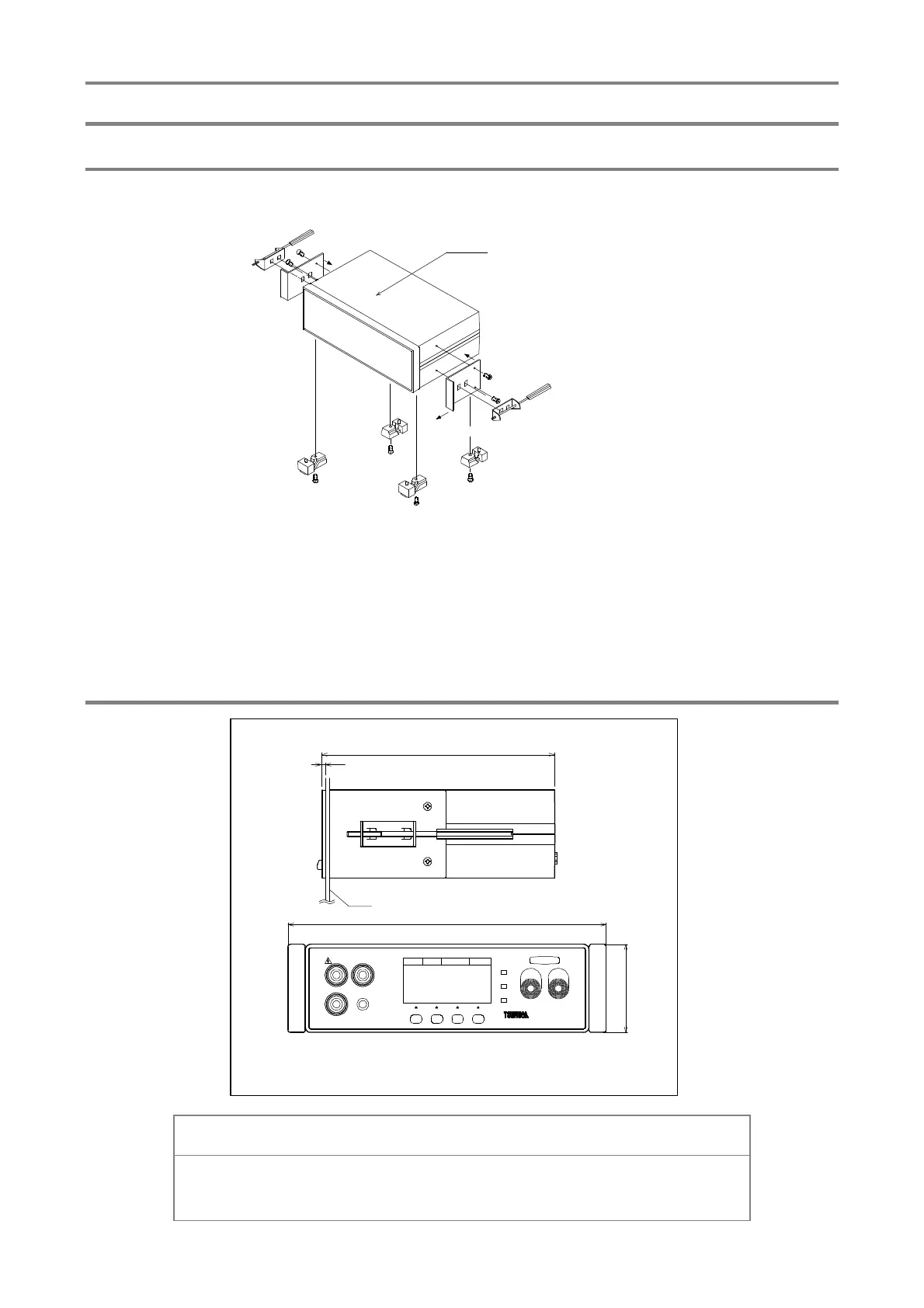

8.1 Assembly drawing
When the tester is used by panel-mounting, use the optional panel-mount bracket.
① Remove the feet (4 parts) at the bottom of the tester.
② Fix the panel-mount bracket to both side of the tester (M4×15flat head screw)
③ Insert the tester from the front of the panel and fix it to the panel with the fixing metal.
Note: In case that the tester is installed to the chassis, utilizing the bottom screw taps of
the testers, keep the length of screw at 6mm + thickness of chassis (mm).
8.2 External dimensions when fitted with panel-mount bracket
! Warning
●Set the power switch near the instrument when it is used in panel mount.
Panel mount bracket
③Fixing metal
①Foot
M
4
×
1
5
f
l
a
t
h
e
a
d
s
c
r
e
w
②
③
②
Tester
64
230
HIGH
GOOD
LOW
START STOP
３５８７ＭＯＤＥＬ
ＬＯＷ
ＲＥＭＯＴＥ
ＧＵＡＲＤ
ＨＩＧＨ
[SET] [REC] [ ][LOCK]
MΩ
１２．３４
99.9 s 9 9.9 s
TIMER M ASK
999.9
000.0
MΩ
No.10 1000V 2000 MΩ M
F3F2F1
HI SET
LO SET
MΩ
169
2.6
TEST
F4
Front view
Side view
Panel
Panel cut-out dimension ：214 x65
±０．５ ＋ ０．５
－０
Unit：mm
