- 27 - MODEL 3587
4.1.2 CONTINUE operation
This is the mode in which the measurement is continued without shutting of the
measuring voltage even if the NG judgement is given during the measurement.
① To start the measurement in MANUAL operation, press the START key located on
front side of the instrument.
During REMOTE 1operation, ON the START input.
Measurement is started by input detection from OFF to ON.
During REMOTE 2 operation（ON the probe switch）, ON the REMOTE input.
② The measuring voltage is applied in measuring terminal and, the measurement and
comparator action are started.
③ The comparator outputs the judgement result from immediately after the start of
measurement.
④ Press STOP key to finish the measurement. The measurement voltage is then shut off.
The measured value is continuously displayed until the next start signal.
During REMOTE 1operation, ON the STOP input.
⑤ When the STOP key is pressed again, the judgement result is reset.
During REMOTE 1operation, judgement will be reset if STOP input is ON.
Note 1 : In REMOTE 2 operation, when the switch if turned OFF, the measurement
operation is shut off and the judgement result is retained.
Note 2 : In CONTINUE operation, the timer and the mask timer do not work.

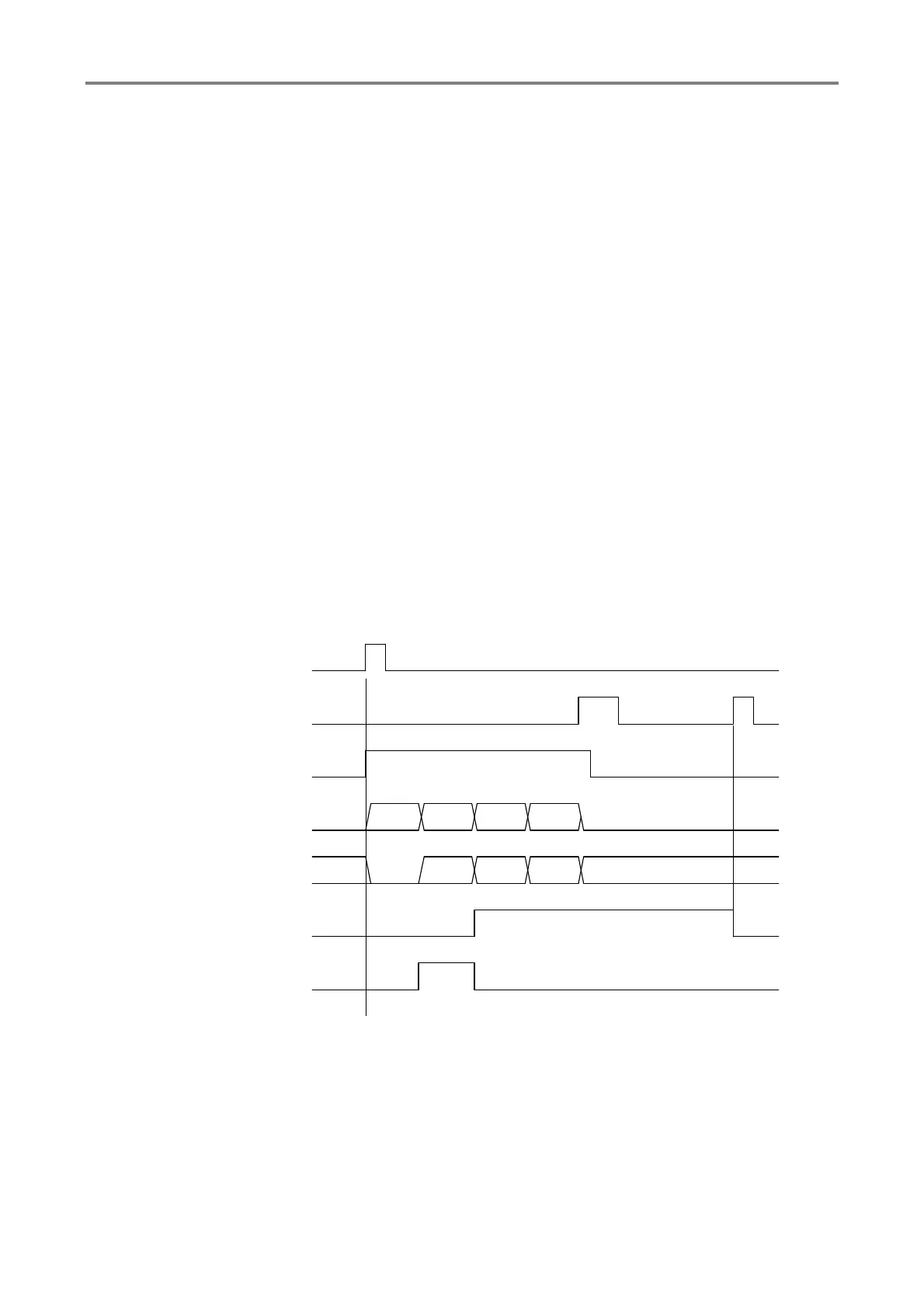

［MANUAL operation］
4312
4312
START
ON
OFF
STOP
ON
OFF
0V
ON
OFF
ON
OFF
(RESET)
voltage
Sampling
display
NG judgment
GOOD judgment
Measurement
Measurement
