MODEL 3587 - 12 -
3.6 Memory
This instrument is equipped with 10 pairs of memories that store comparator and
measurement conditions. The following 4 items, 8 types are available for memory
storage.
Measurement mode (AUTO, CONTINUE)
Measurement range (Measurement voltage, Resistance range)
Setting of comparator (Upper value and lower value, Range )
Setting of timer (Timer, Mask timer)
Note: Setting can’t be cone in ONLINE condition.
Memory selection signal can’t be selected during valid period.
Selection can’t be done during measurement.
［Selection of memory］
●Front panel method
Call

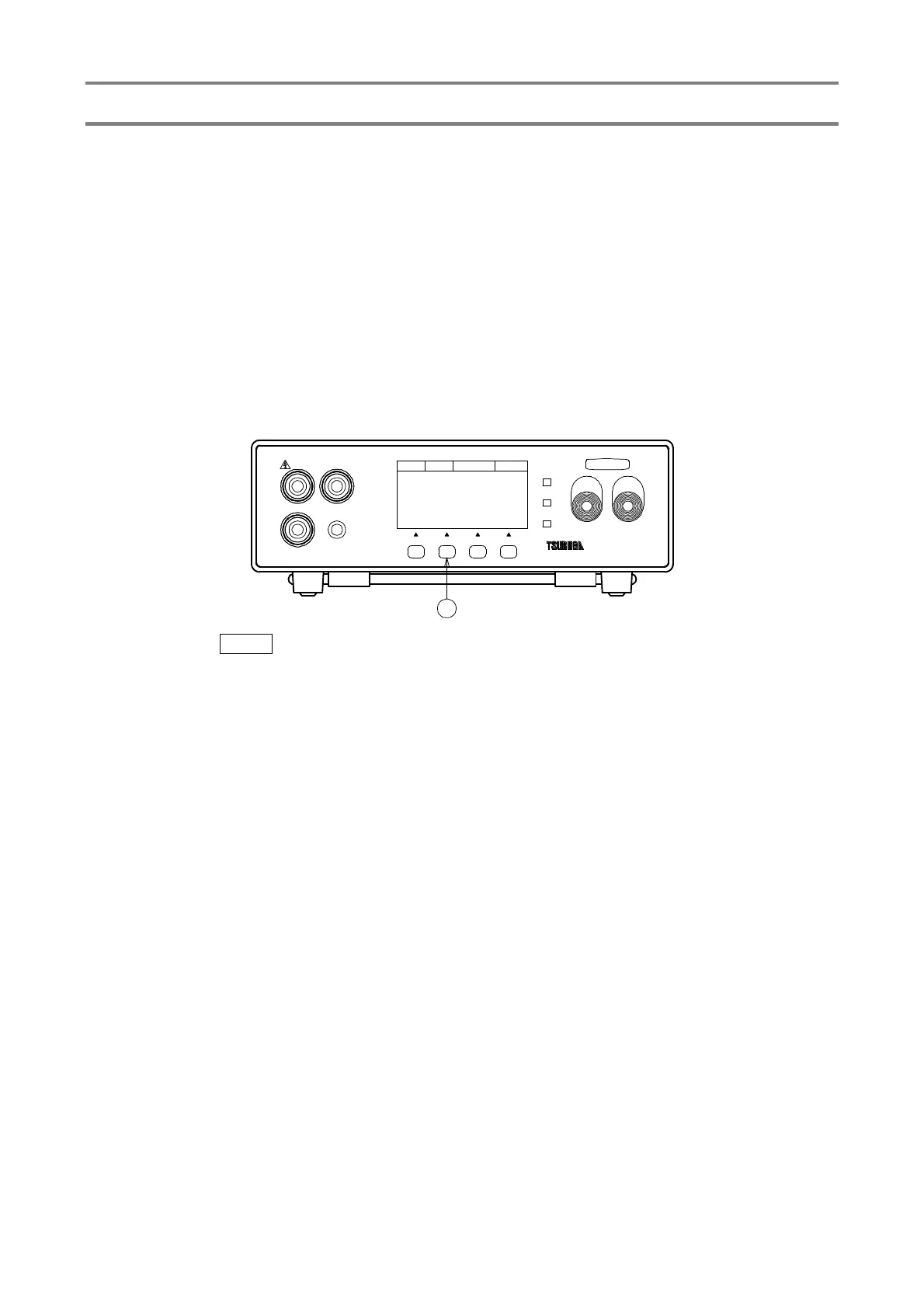

When F2 [RCL] key (①) is pressed in standby state, memory no. will increased and
setting call will be displayed.
Memory from 1 to 10 can be selected.
●External control method
Refer to memory operation (5.1.5) for detail information.
［Memory registration］
After selecting the memory no. you want to register, select measurement mode,
measurement range, comparator, timer etc. with MEMORY SET.
