ZED-F9P-Integration Manual
UBX-18010802 - R02

9 Product handling Page 107 of 114
Advance Information

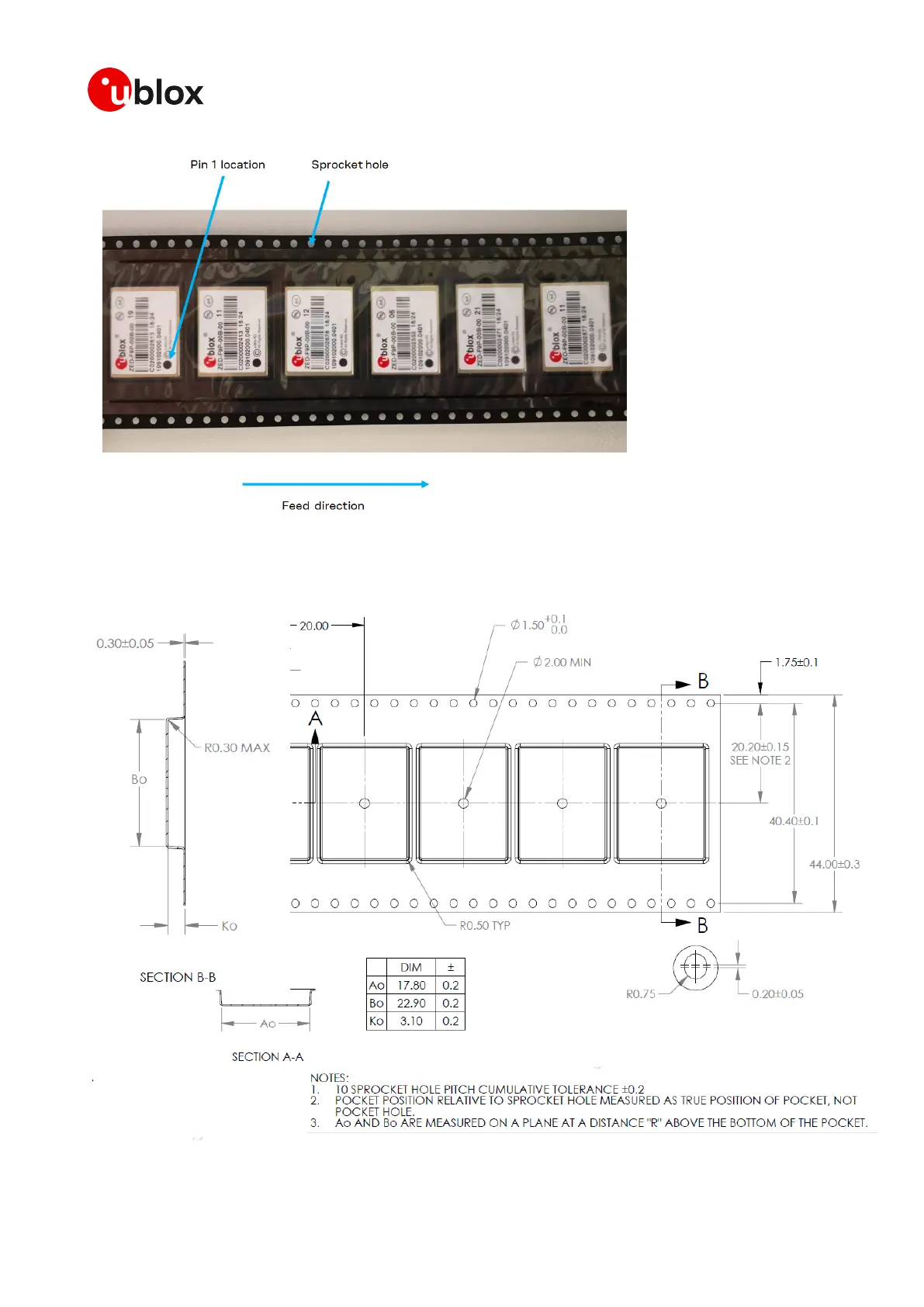

Figure 78: Orientation of ZED-F9P high precision receivers on the tape
The dimensions of the tapes for ZED-F9P high precision receivers are specified in Figure 79
(measurements in mm).
Figure 79: ZED-F9P tape dimensions (mm)
