u-blox ZED-F9P Integration Manual

ZED-F9P-Integration Manual
UBX-18010802 - R02

3 Getting started Page 26 of 114
Advance Information

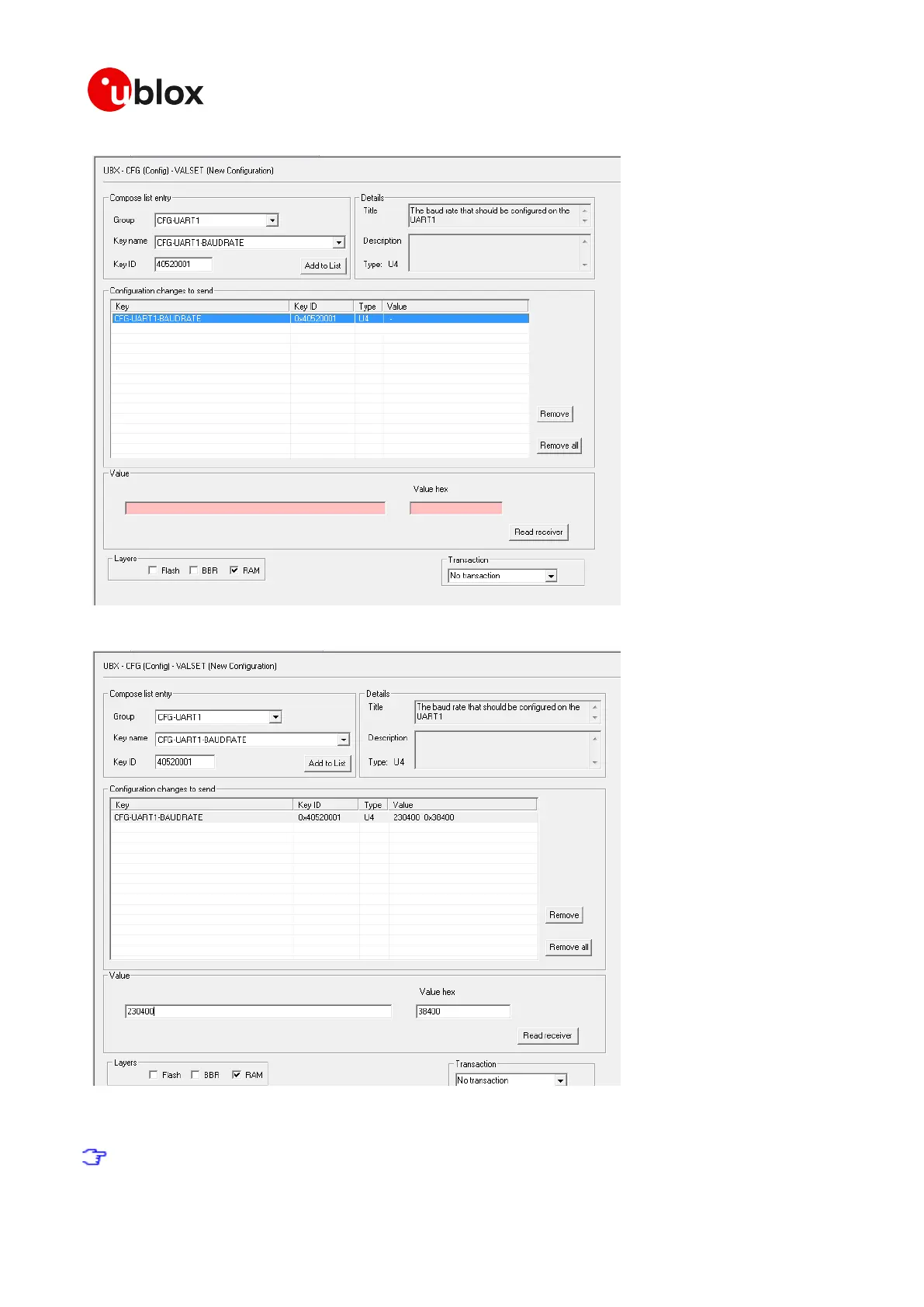

Figure 15: Example u-center UBX-CFG-VALSET message view when selecting a configuration item
Figure 16: Rover: u-center UBX-CFG-VALSET message view for setting the CFG-UART1-BAUDRATE configuration item
that controls the baudrate of UART1
UBX-NAV-SOL is shown below, however it is not supported with HPG 1.00 firmware.

u-blox ZED-F9P Specifications

General

GNSS	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Concurrent GNSS	4
RTK	Yes
Velocity Accuracy	0.05 m/s
Time Pulse Accuracy	30 ns
Operating Temperature	-40°C to +85°C
Supply Voltage	2.7 V to 3.6 V
Channels	184
Frequency Bands	L1, L2
Dimensions	22 mm x 17 mm x 2.4 mm
Interfaces	UART, SPI, I2C
