Section 1 C30HVRT Compressor Description
⑧INPUT POWER CABLE
RECEP
⑮REMOTE INPUT-OUTPUT
RECEPTACLE
⑨CIRCUIT PROTECTOR
TACLE
⑩CRYOCOOLER
CABLE
RECEPTACLE
⑪ HIGH PRESSURE
OR
HELIUM SUPPLY
CONNECT
⑫LOW PRESSURE
HELIUM RETURN

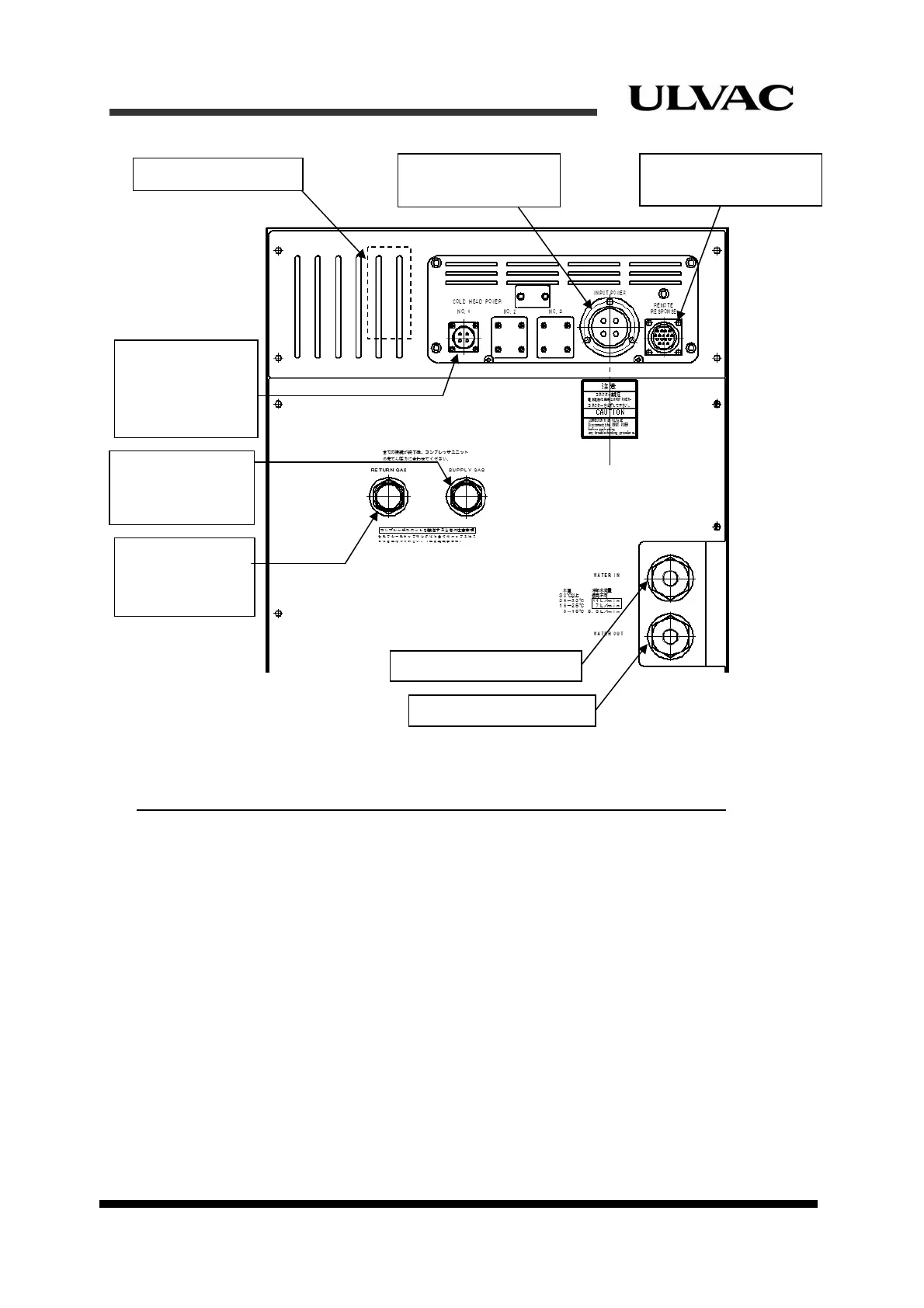

Figure 1-4 Compressor rear view
Listed below are the descriptions of components on the front panel of the compressor.
①ELAPSED TIME METER
It displays the elapsed time of operation (when it is in operation). The displayed value
can not be changed.
② HIGH PRESSURE HELIUM GAS PRESSURE GAUGE （ HELIUM PRESSURE
GAUGE）
The high pressure helium gas pressure gauge, hereafter “the helium pressure gauge”
indicates the static helium filling pressure when the compressor is not in operation,
and the supply line helium pressure when the compressor is in operation.
Refer to “Section 5.1 Verification of helium static pressure” to verify the helium
pressure when the compressor is not in operation.
③COM: MONITORING PORT
This is a port for inspection of our engineer exclusive use. Please note that you cannot
access this port.
CONNECTOR
⑭COOLING WATER INLET
⑬COOLING WATER OUTLET
1-6
ULVAC CRYOGENICS INCORPORATED
