5. If the bundle of the cables’ diameter is smaller than that of the clamp saddle, wrap
cables with tape to adjust the size of diameter so that it can be fixed in the clamp
saddle.
(Assembling the connector)
6. Assemble the connector to the barrel by turning it.
7. Turn the set screw in clockwise to fix the end bell.
(Figure 4-11)
8. Mount the clamp saddle.

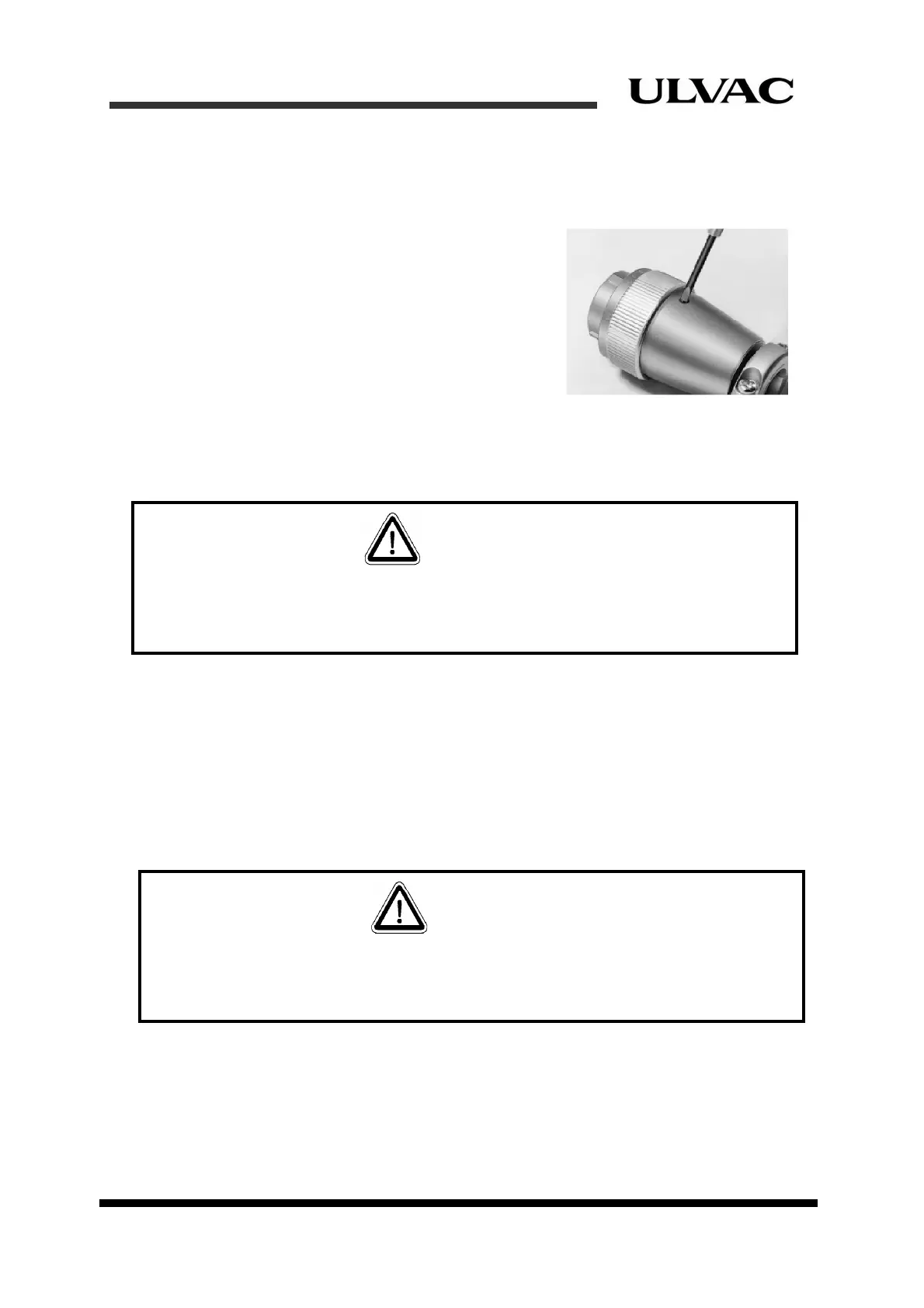

Figure 4-11 Fix with set screw
(Solder identification)
9. Put the solder identification label on the connector or cables.
CAUTION
For lead-free soldering, use only specified lead-free solder iron and tip. Do not mix lead
eutectic solder with lead-free solder. Failure to observe this warning may result in
decreasing the life of soldered parts severely.
NOTE: Clear identification of solder: Listed below are the recommended abbreviations for
identifying solders. Labeling the kind of solder clearly helps you to have proper
maintenance.
Lead eutectic solder SnPb or SP
Lead-free solder (Sn-Ag) SnAgCu or SAC
Lead-free solder (Sn-Cu) SnCuNi or SCN
CAUTION
Connector must be soldered by authorized personnel familiar with the kinds of solder and
soldering procedure. Failure to observe this warning may result in breakdown of the
product, or decrease the life of soldered parts severely.
