C30HVRT Compressor Unit Instruction Manual

Loosen six screws

and remove the

front panel.

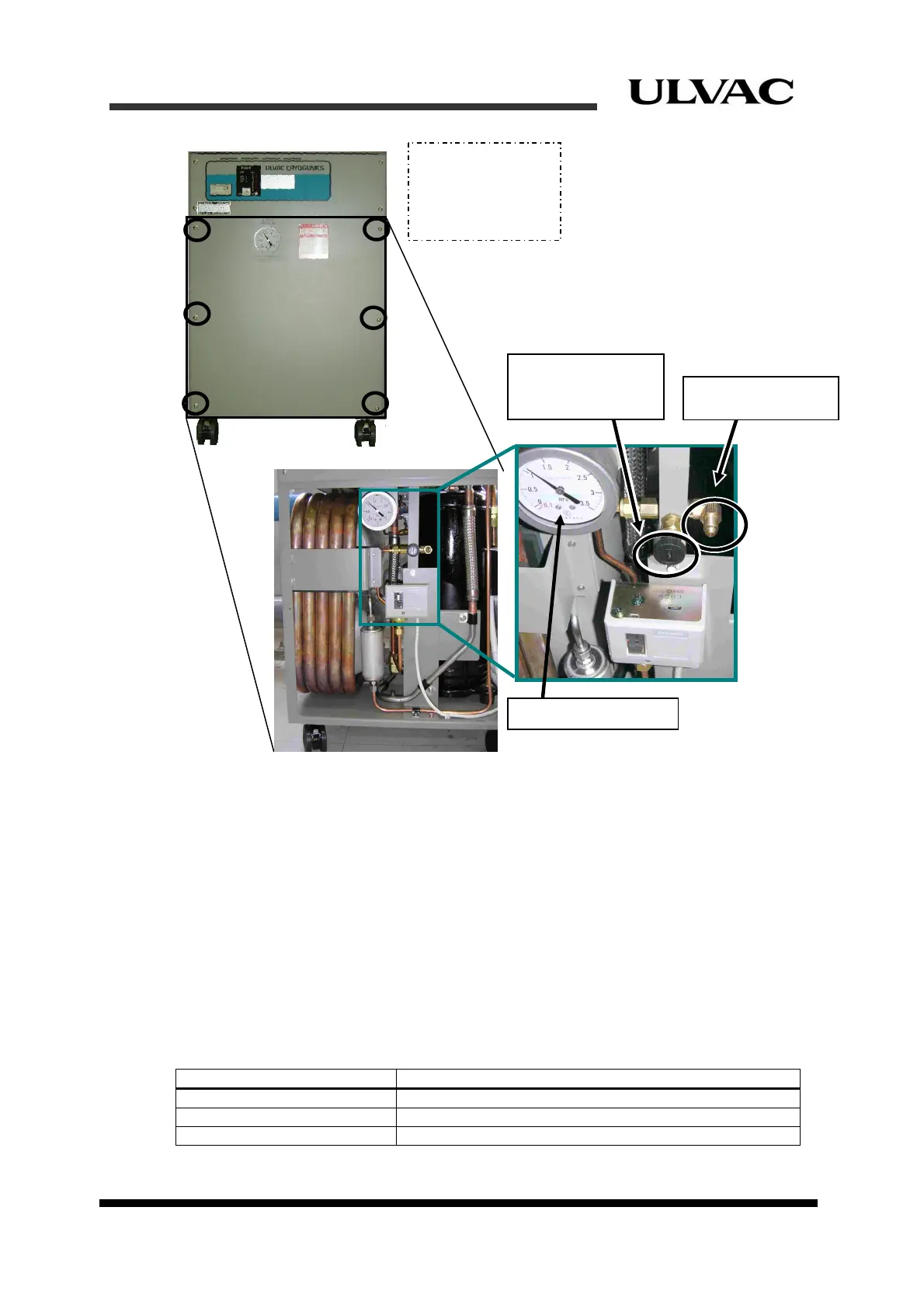

Figure 7-8 Locations of Front Panel Screws and Components inside the

Compressor

(2) Raising Helium Pressure

When the helium pressure gauge reads a value lower than the appropriate value, adding

helium gas is required.

When charging helium or performing helium circuit decontamination, equipments

(regulators, charging hoses, adopters, etc.) that can be used at 2.0MPaG or above are

required.

Table 7-2 shows items and devices required for adding helium gas.

Table 7-2 Preparation for Adding Helium Gas

Item Specification

Helium bottle 99.999% pure or above

Pressure regulator For Helium gas (left-hand screw), 0-20MPaG / 0-6MPaG

Helium charging hose Terminating in a 1/4 inch female flare fitting

Helium pressure gauge

(Upper view)

Knob of the Helium

charge control valve

Helium charge fitting
