Ulvac C30HVRT - Figure 7-9 Items for Adding Helium Gas to the Compressor

To Next Page

To Previous Page

Section 7 Maintenance

7-8

ULVAC CRYOGENICS INCORPORATED

NOTE: If you need a pressure regulator and/or helium charging hose described in Table

7-2 for adding helium gas, please contact our Service Engineering Division or the nearest

customer support center.

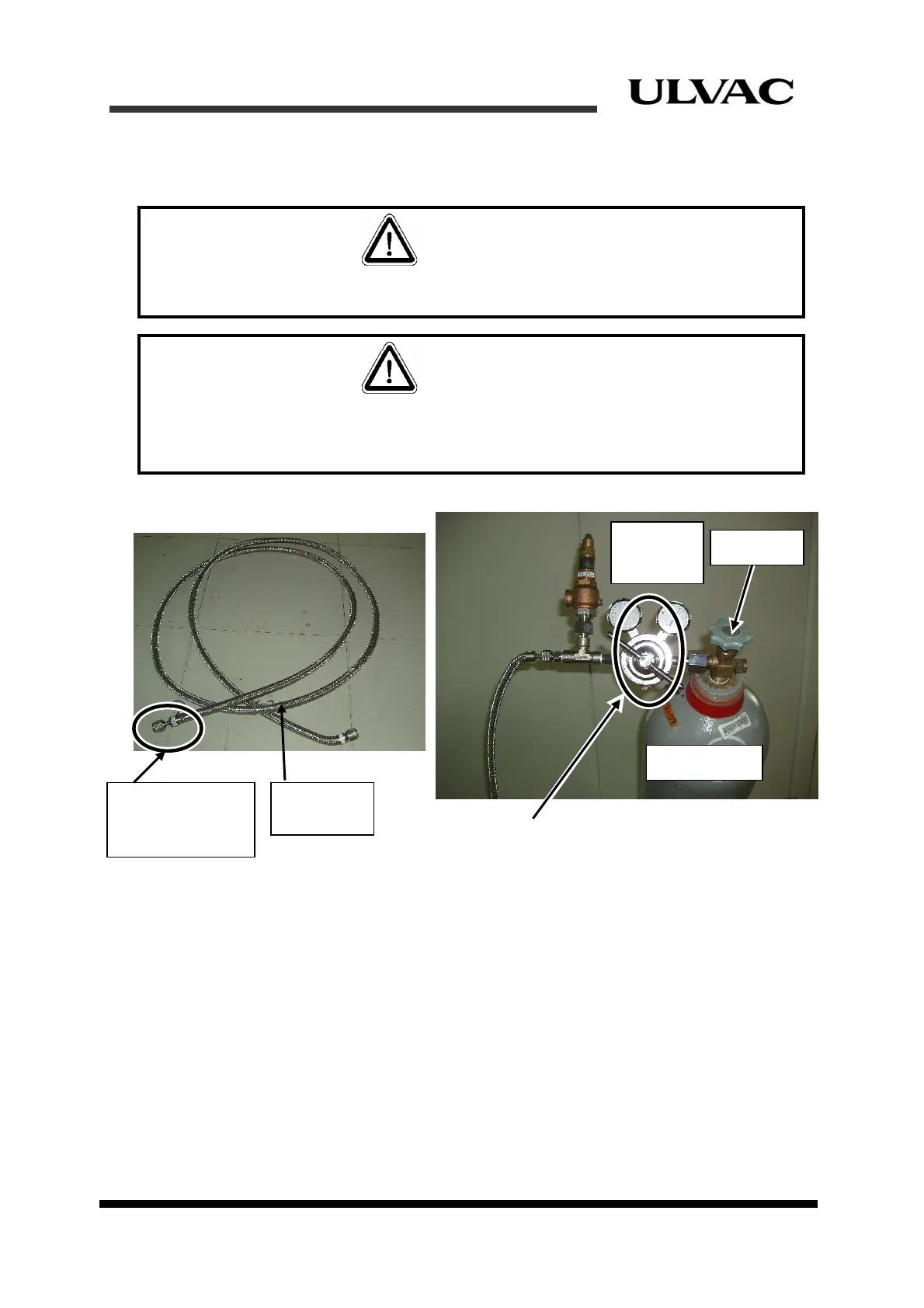

Figure 7-9 Items for Adding Helium Gas to the Compressor

The purity of helium gas to be charged must be above 99.999%. If the purity is lower, it

may result in deterioration of the cryopump system or performance degradation.

CAUTION

If the helium pressure of the cryopump system becomes 0, there is a risk that air or

moisture in the air invade into the system and contaminate helium. In such a case,

please contact our Service Engineering Division or the nearest customer support center.

CAUTION

fitting (connect this

side to the

Pressure regulator handle

4 inch female flare

Pressure

regulator

Helium bottle

Helium

charging hose

Bottle valve
