Uninet IColor 250 - Page 16

15
Max
Min
Label Width
5” (127mm)
0.5" (13mm)
Liner/Media Width
5.125 (130.17mm)
2" (50.8mm)
Label Height/Length
12” (305mm)
0.5" (13mm)
Gap Between Labels
10" (253mm)
0.10" (2.5mm)
Width of Through-Hole
0.5" (12.65mm)
0.25" (6.325mm)
Gap Sensor Adjustment
Range (from right edge)
2.05" (52mm)
(see diagram below)
0.40" (10.16mm)
Reflective/Black Mark Width*
N/A
0.1" (2.54mm)
Max Outer Diameter (OD)
6.0"(152.4mm)
N/A
Inner Core Diameter (ID)
3.0" (76.2mm)
3.0" (76.2mm)
Recommended Total Thickness
(Liner + Label)**)
.0010” (10 mil)
Distance from Edge of Media to
Edge of Label
The printer assumes a 2mm (1/16”) gap.
However, this is adjustable via the left margin offset.
* The Reflective/Black Mark should be opaque to infrared light. The mark should be between the labels.
The end of the mark should correspond with the beginning of the label.
** This is the recommended maximum. Two factors determine whether the printer will accept any
particular stock thickness:
1. The ability of the printer to pull the paper through the print area.
2. The ability for the sensor to read through the backing if the sensor is set to die-cut.
If you are printing in continuous or reflective label sensing mode number 2 does not apply. The fact that
the printer must read through the backing in die-cut mode will limit the thickness much more than the
printer's ability to pull the paper through the print area. However, if you adjust the opacity level of the
liner enough to allow the label to be seen by the stock sensor, the thickness will only be limited by the
printer's ability to pull it through the printer
area. For these reasons, the weight or
thickness of the liner is a variable that cannot
easily be defined. UNINET recommends and
uses 40# liner with all pre-die-cut label stock.
It is important to test all label stock with the
intended printer before ordering large
quantities!

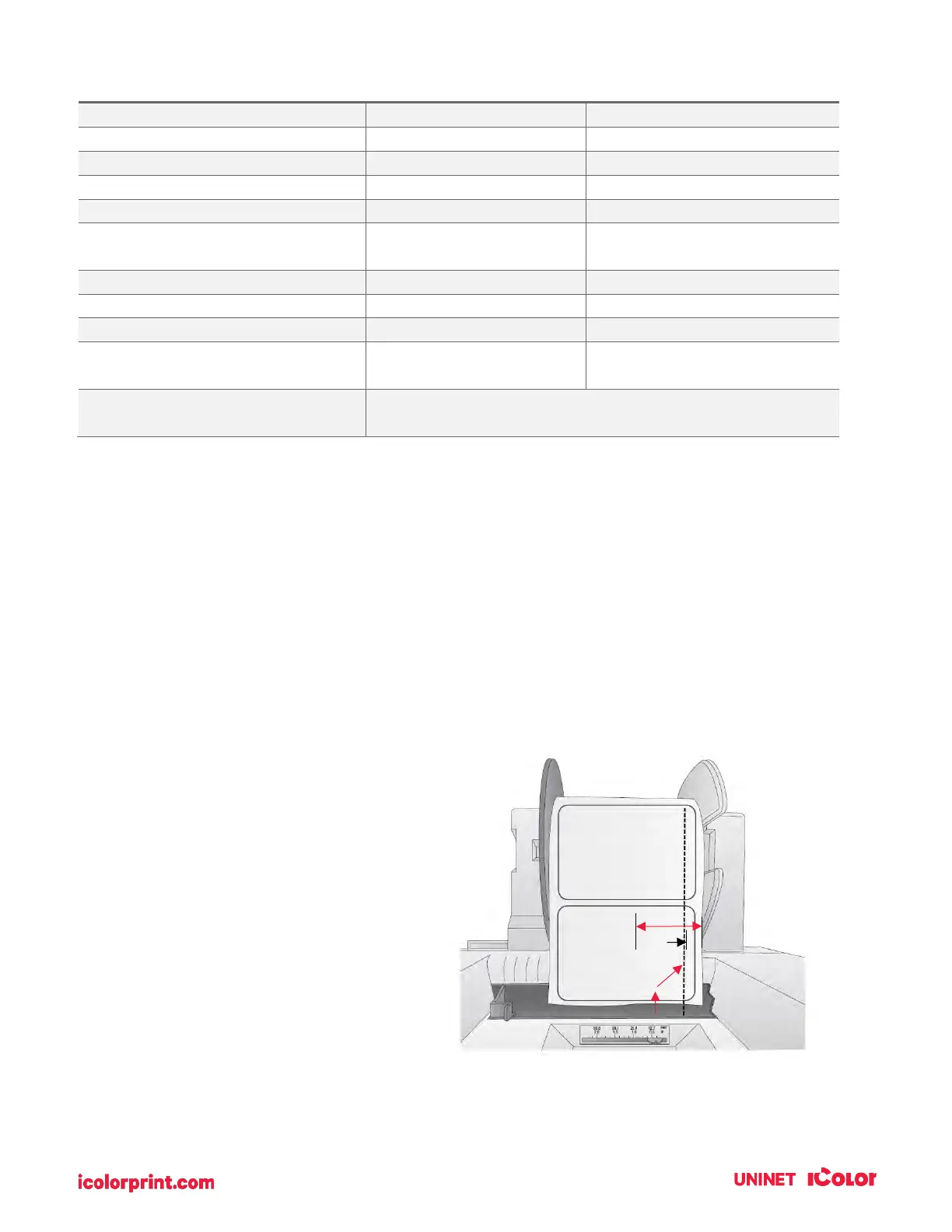

Gap Sensor
Adjustment
2.05”
0.4”
Gap Sensor Position Indicator from right
edge of media. The position indicator
corresponds to the ruler NOT the
installed label stock.
