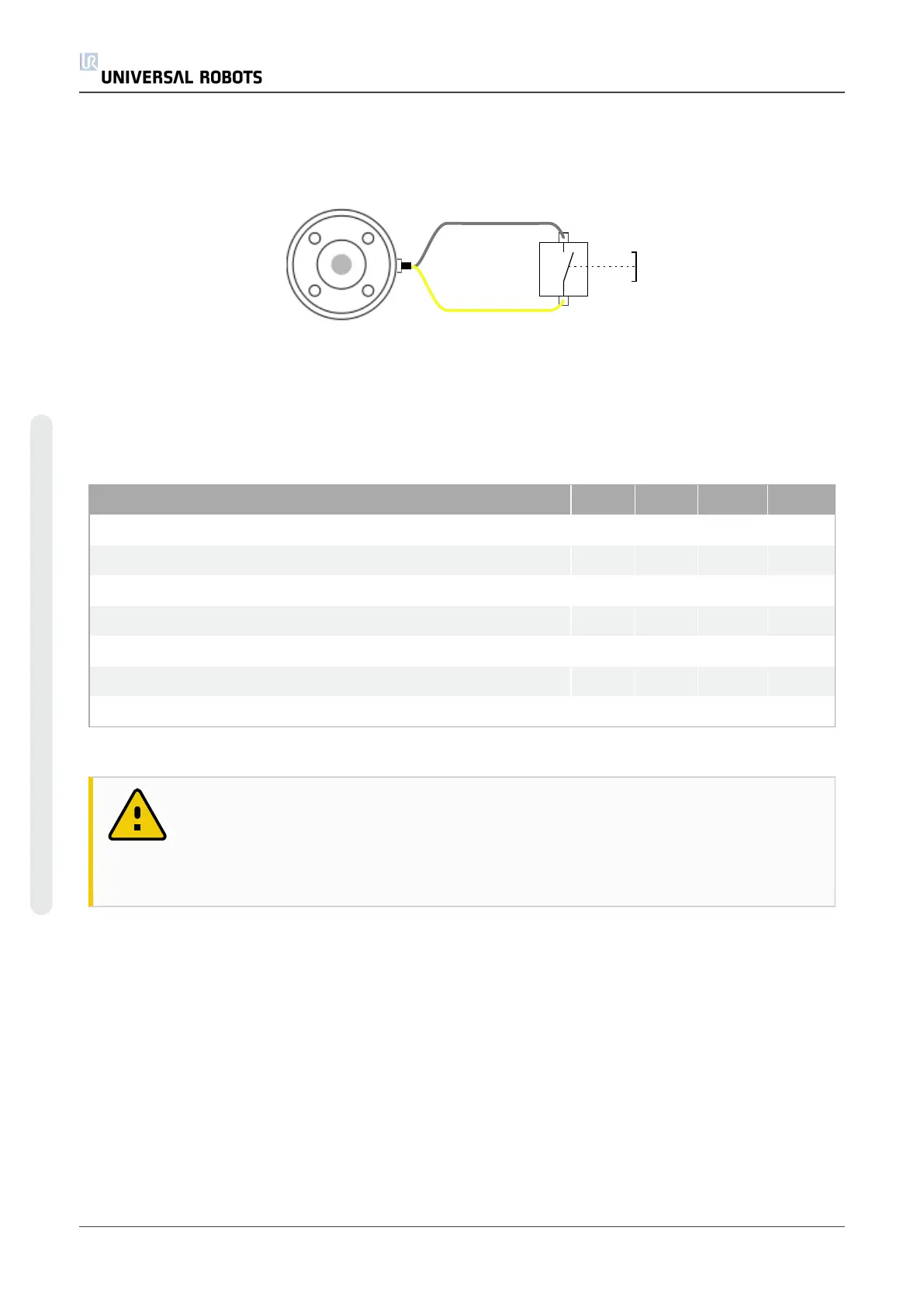

Using the Tool Digital Inputs
The example below shows how to connect a simple button.
TI0
POWER
Tool Analog Inputs
The tool analog inputs are non-differential and can be set to either voltage and current on the I/O
tab, see partPart II PolyScope Manualon page85. The electrical specifications are shown
below.
Parameter Min Typ Max Unit
Input voltage in voltage mode -0.5 - 26 V
Input resistance @ range 0V to 10V - 15 - kΩ
Resolution - 12 - bit
Input voltage in current mode -0.5 - 5.0 V
Input current in current mode -2.5 - 25 mA
Input resistance @ range 4mA to 20mA - 200 - Ω
Resolution - 12 - bit
Two examples of how to use analog inputs are shown in the following subsections.
CAUTION
1. Analog inputs are not protected against over voltage in current mode.
Overrating the limit in the electrical specification can cause permanent
damage to the input.
Using the Tool Analog Inputs, Non-differential
The example below shows how to connect an analog sensor with a non-differential output. The
output of the sensor can be either current or voltage, as long as the input mode of that analog
input is set to the same on the I/O tab. Remember to check that a sensor with voltage output can
drive the internal resistance of the tool, or the measurement might be invalid.
UR10 44 User Manual
