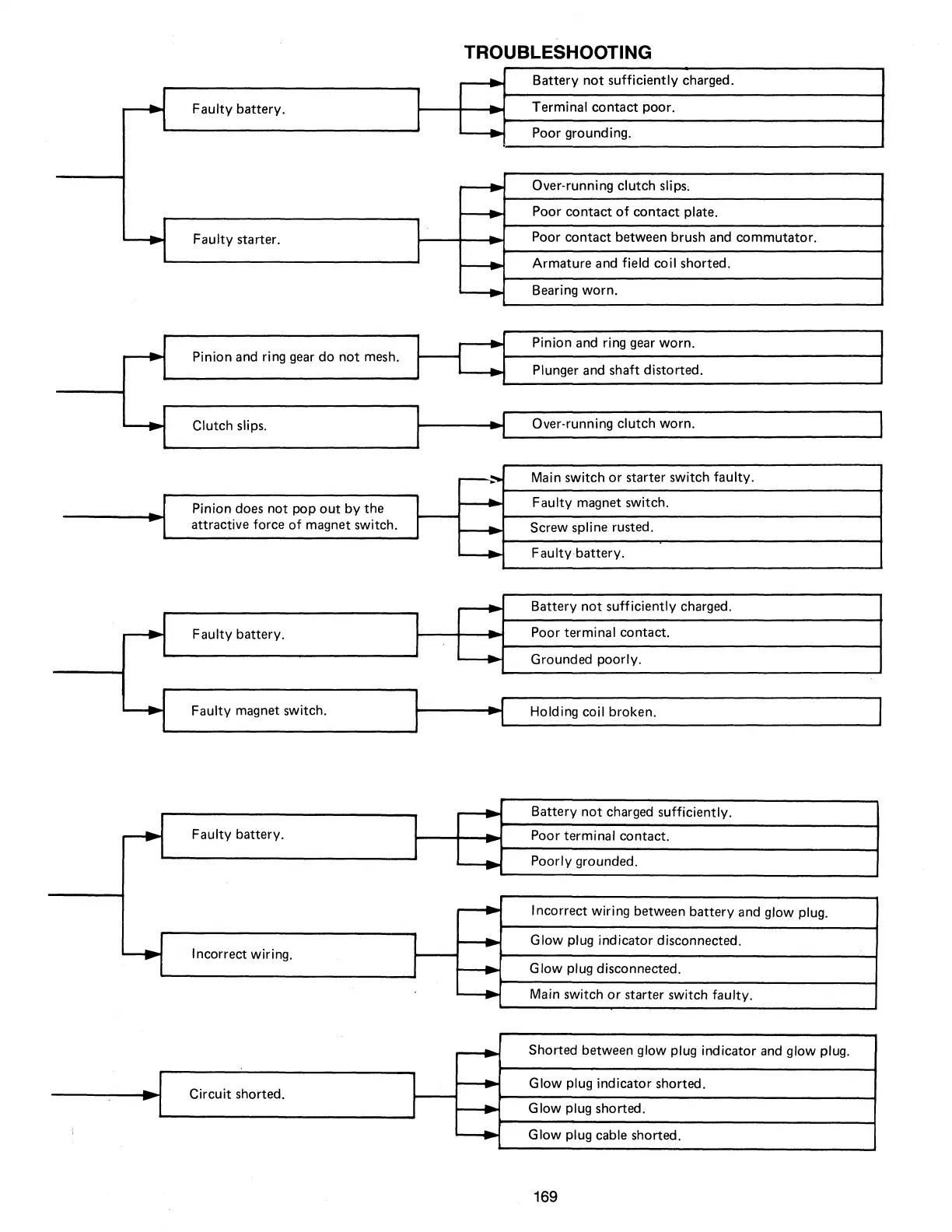

TROUBLESHOOTING
..
Battery
not
sufficiently charged .
~
Faulty
battery.
Terminal contact poor.
·
~
Poor grounding.
·
Over·running clutch slips,
Poor contact
of
contact plate.
~
Faulty starter.
Poor contact between brush
and
commutator.
r---+
Armature
and
field coil shorted.
r---+
Bearing worn.
Pinion
and
ring
gear
worn.
r---+'
H
Pinion
and
ring
gear
do
not
mesh.
Plunger
and
shaft distorted.
Clutch slips.
J
Over·running clutch worn.
_
...
Main switch
or
starter switch faulty.
·
I
~
Faulty magnet switch.
Pinion does
not
pop
out
by
the
I
attractive force
of
magnet switch.
Screw spline rusted.
Faulty battery.
Battery
not
sufficiently charged.
~
Faulty battery.
I
...
Poor terminal contact .
I
----..
Grounded poorly.
~
I
Faulty magnet switch.
Holding coil broken.
J
I
----...
Battery
not
charged sufficiently.
~
Faulty battery.
Poor terminal contact.
~
Poorly grounded.
r-+
Incorrect wiring between battery and glow plug.
y
r--+
Glow plug indicator disconnected.
Incorrect wiring.
-
~
Glow
plug disconnected.
~
Main switch
or
starter switch faulty.
r-+
Shorted between glow plug indicator
and
glow plug.
_ ...
Circuit shorted.
f---+
Glow
plug indicator shorted.
~
r-+
Glow
plug shorted.
~
Glow
plug cable shorted.
169
