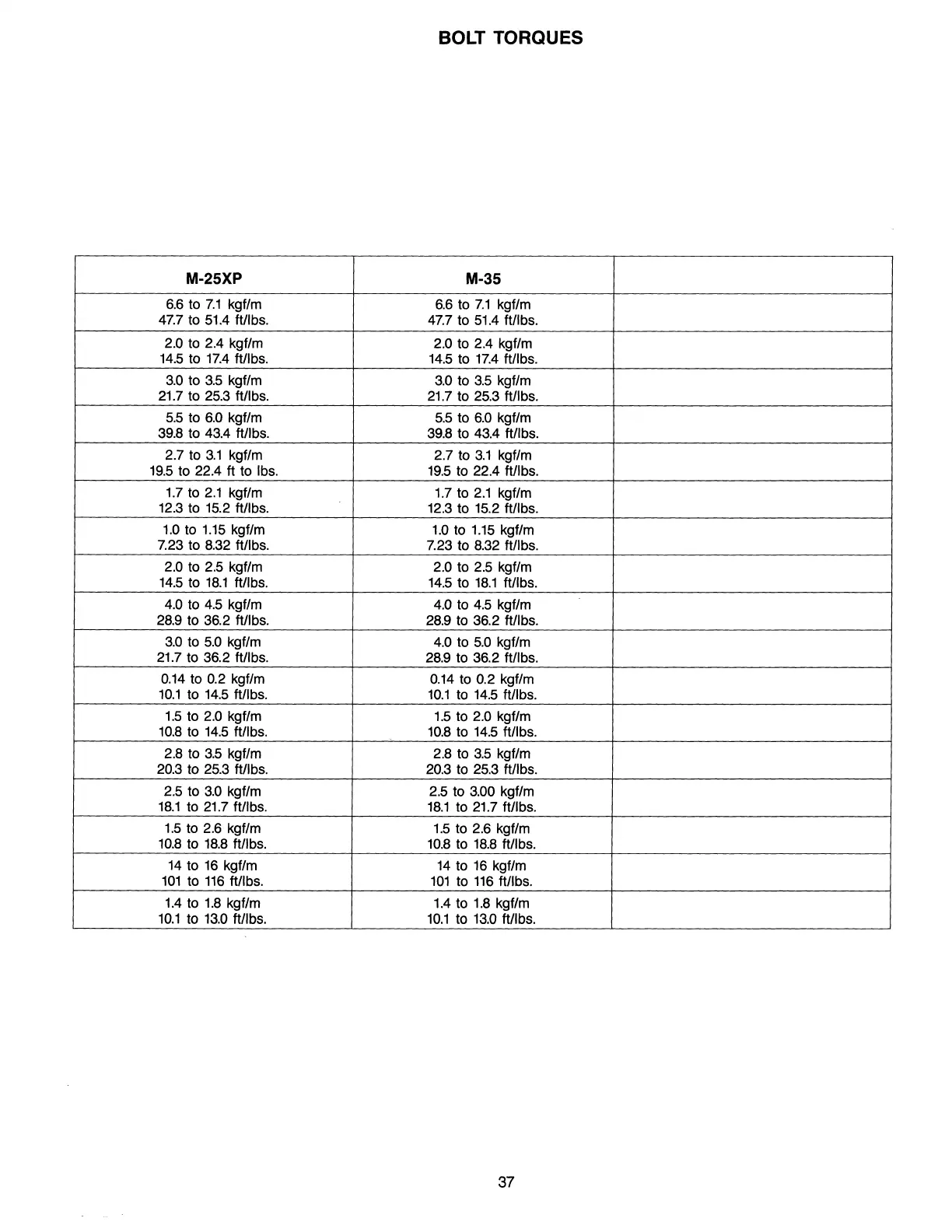

BOLT TORQUES
M-25XP M-35
6.6
to
7.1
kgf/m
6.6
to
7.1
kgf/m
47.7
to
51.4 ft/lbs.
47.7
to
51.4 ftllbs.
2.0
to
2.4 kgf/m
2.0
to
2.4 kgf/m
14.5
to
17.4
ft/lbs.
14.5
to
17.4
ft/lbs.
3.0
to
3.5
kgf/m
3.0
to
3.5
kgtlm
21.7
to
25.3 ft/lbs.
21.7
to
25.3 ft/lbs.
5.5
to
6.0
kgtlm
5.5
to
6.0
kgf/m
39.8
to
43.4 ft/lbs.
39.8
to
43.4 ft/lbs.
2.7
to
3.1
kgtlm 2.7
to
3.1
kgtlm
19.5
to
22.4 ft
to
Ibs.
19.5
to
22.4 ft/lbs.
1.7
to
2.1
kgtlm
1.7
to
2.1
kgf/m
12.3
to
15.2 ft/lbs.
12.3
to
15.2 ft/lbs.
1.0
to
1.15
kgf/m
1.0
to
1.15
kgf/m
7.23
to
8.32 ftllbs. 7.23
to
8.32 ft/lbs.
2.0
to
2.5
kgf/m
2.0
to
2.5 kgf/m
14.5
to
18.1
ftllbs. 14.5
to
18.1
ft/lbs.
4.0
to
4.5 kgtlm 4.0
to
4.5 kgf/m
28.9
to
36.2 ft/lbs. 28.9
to
36.2 ft/lbs.
3.0
to
5.0
kgf/m 4.0
to
5.0
kgf/m
21.7
to
36.2 ft/lbs.
28.9
to
36.2 ft/lbs.
0.14
to
0.2
kgf/m
0.14
to
0.2 kgf/m
10.1
to
14.5 ft/lbs.
10.1
to
14.5
ftllbs.
1.5
to
2.0
kgf/m
1.5
to
2.0 kgf/m
10.8
to
14.5
ft/lbs.
10.8
to
14.5 ft/lbs.
2.8
to
3.5
kgf/m
2.8
to
3.5
kgtlm
20.3
to
25.3 ftllbs. 20.3
to
25.3 ft/lbs.
2.5
to
3.0
kgf/m
2.5
to
3.00 kgtlm
18.1
to
21.7 ft/lbs.
18.1
to
21.7 ftllbs.
1.5
to
2.6 kgtlm
1.5
to
2.6
kgf/m
10.8
to
18.8
ft/lbs.
10.8
to
18.8
ft/lbs.
14
to
16
kgf/m
14
to
16 kgf/m
101
to
116
ft/lbs.
101
to
116
ft/lbs.
1.4
to
1.8
kg tim 1.4
to
1.8
kgf/m
10.1
to
13.0
ftllbs.
10.1
to
13.0
ftllbs.
37
