Upright LX31 Service & Parts Manual

Illustrated Parts Breakdown
7.2
SectionSection
SectionSection
Section
LX31/41 Work Platform7-30

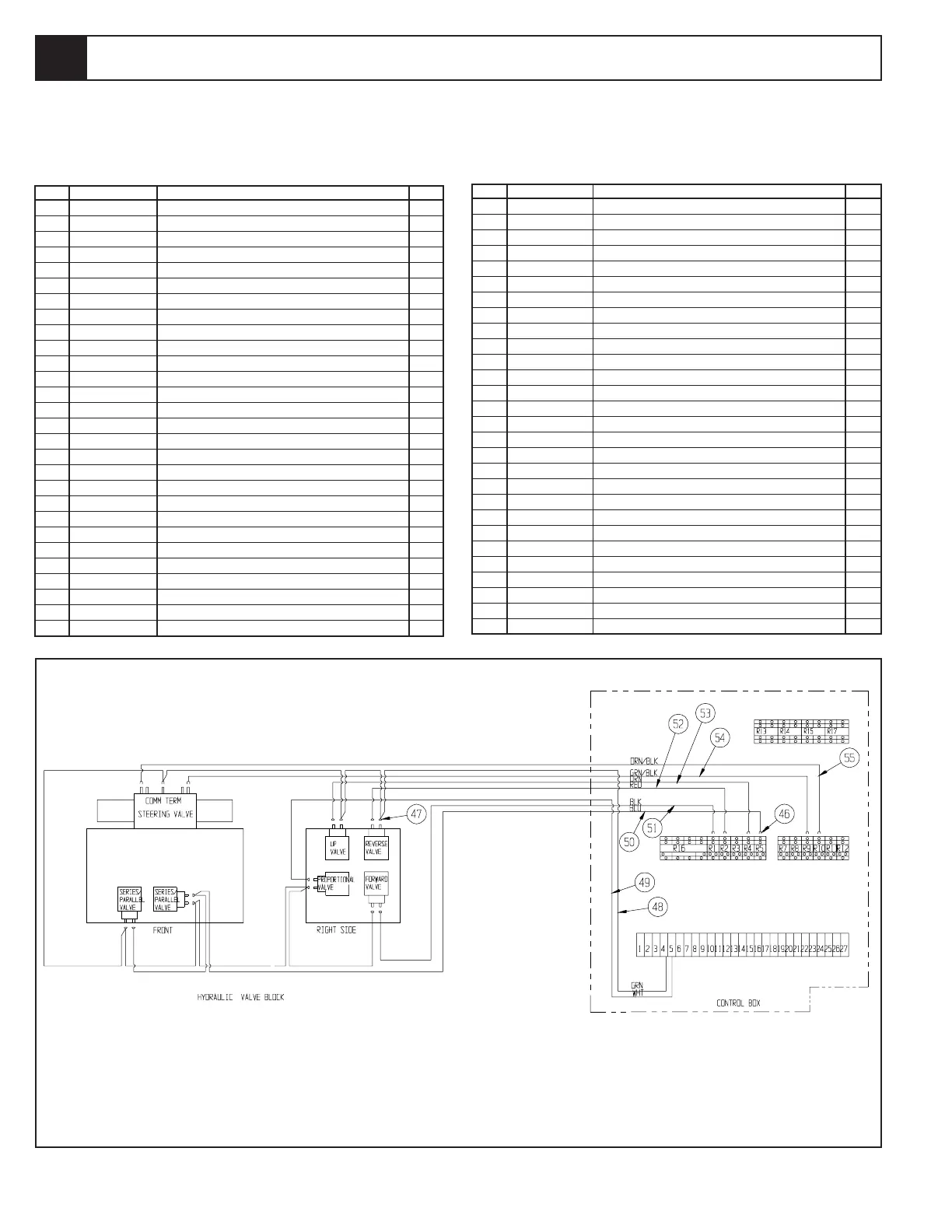

CONTROL MODULE ASSEMBLY, LX31/41
T
WO WHEEL DRIVE GAS
67521-000
ITEM PART DESCRIPTION QTY.
1 67810-000 CONTROL MODULE WELDMENT 1
2 67527-000 CONTROL BOX ASSY, GAS / PROPANE 1
3 67631-000 FUEL TANK, GASOLINE 1
4 64039-000 MOUNTING TAB, FUEL TANK 3
5 67629-000 LATCH, FLUSH LIFT & TURN 2
6 05299-000 LATCH, TOGGLE 2
7 63982-002 FUEL LEVEL GAGE 1
8 11240-004 WASHER 1/4 FLAT 2
9 12739-099 HOSE, 1/4 I.D. 11'
10 10178-003 FITTING, BARBED 1/4 1
11 63125-008 HOSE CLAMP 2
12 11254-008 SCRW HHC GR5 3/8-16UNC X 1 13
13 11708-004 SCRW MACH RD HD 8-32UNC X 1/2 4
14 11248-002 LOCK NUT, ESNA 8-32UNC 4
15 64040-000 ANGLE, BATTERY HOLD DOWN 1
16 62299-002 BATTERY, 12 VDC GROUP-27C 1
17 12736-099 HOSE 3/16 ID 11'
18 63082-000 ROD, BATTERY HOLD DOWN 2
19 03556-001 FITTING BUSHING 1
20 10178-001 FITTING BARBED 3/16 1
21 67808-000 HINGE, 1 1/2 X 23 7/8 2
22 67809-000 HINGE, 1 1/2 X 65 1
23 67799-002 MODULE COVER / CONTROL 1
24 67800-000 MODULE DOOR, R.H. 1
25 67801-000 MODULE DOOR, L.H. 1
26 26554-002 POP RIVET, 1/4 DIA (.251-.375 GRIP) 46
27 11248-006 NUT, 3/8-16 ESNA 14
28 11252-006 SCREW, HHC 1/4-20 X 3/4 2
ITEM PART DESCRIPTION QTY.
29 11248-004 NUT, 1/4-20 ESNA 4
30 25427-002 HANDLE 1
31 67854-000 ANGLE, RESERVOIR MOUNT 1
32 67856-000 WELDMENT, STIFFENER 1
33 11254-006 SCREW HHC 3/8-16 X 3/4 3
34 62125-016 CABLE, BATTERY X 16 1
35 62125-002 CABLE, BATTERY X 69 1
36 14435-001 TERMINAL, BATTERY 2
37 10154-000 COVER, BATTERY TERMINAL 2
38 67892-000 BRACKET, VALVE BLOCK 1
39 67524-000 VALVE BLOCK ASSY. (2 W.D.) 1
40 11254-004 SCRW HHC GR5 3/8-16UNC X 1/2 4
41 63650-012 GAS SPRING 1
42 67902-000 BRACKET, GAS SPRING 1
43 15936-004 SCR, SHOULDER 3/8 DIA. X 1/2 2
44 67648-008 END FITTING, GAS SPRING 2
45 11253-008 SCR HHC 5/16-18 X 1 2
46 29610-002 TERMINAL #6 FORK 12
47 29616-002 TERMINAL 16 GA FEMALE PUSH ON 18
48 29457-099 WIRE 16 GA - GREEN 4'
49 29451-099 WIRE 16 GA - WHITE 3'
50 29450-099 WIRE 16 GA - BLUE 3'
51 29452-099 WIRE 16 GA - BLACK 3'
52 29454-099 WIRE 16 GA - RED 3'
53 29453-099 WIRE 16 GA - ORANGE 3'
54 05491-099 WIRE 16 GA - GREEN/BLACK 3'
55 29477-099 WIRE 16 GA - ORANGE/BLACK 3'
56 11237-006 WASHER 3/8 STAR 1
