Upright LX31 Service & Parts Manual

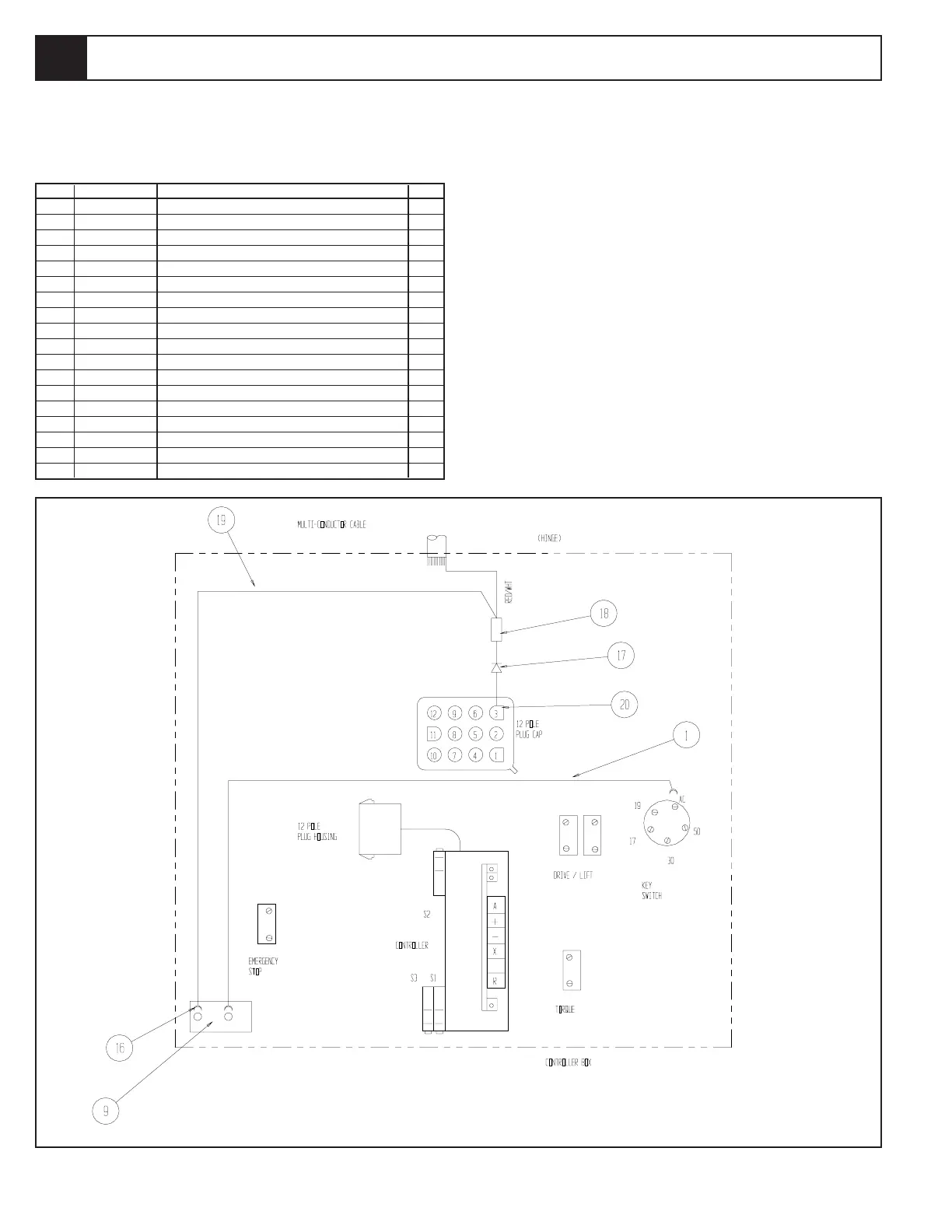

Illustrated Parts Breakdown
7.2
SectionSection
SectionSection
Section
LX31/41 Work Platform7-84
ITEM PART DESCRIPTION QTY
1 29454-099 WIRE, 16 GA RED 1 FT
2 67907-000 POWER TO PLATFORM OPT. (NOT SHOWN) 1
4 27979-001 WINCO GENERATOR 1
5 64212-001 CORD ASSY 1
6 63949-042 SHEAVE, GENERATOR 1
7 11994-002 V-BELT 3L-310 1
9 12797-000 SWITCH, TOGGLE 1
10 08271-000 SWITCH GUARD 1
11 64211-000 DECAL, ON-OFF 1
12 11254-010 BOLT 3/8-16 X 1 1/4 8
13 11248-006 ESNT 3/8-16 8
14 67614-021 DUAL SHEAVE - KUBOTA #17213-74281 1
15 65916-000 MOUNTING PLATE, GENERATOR 1
16 29610-004 CONN FORK 16-14 #10 3
17 29825-002 DIODE, 3 AMP 1
18 29620-002 CONN, BUTT 16 GA 1
19 29483-099 WIRE 16 GA, RED WHT 1 FT
20 63956-002 PIN, MALE CONTACT 1
GENERATOR OPTION
D
IESEL
67849-000
