Upright LX31 Service & Parts Manual

Section
4-3LX 31/41 Work Platform
Maintenance
4.2
4.2 Blocking Elevating
Assembly (Figure 4-1)
Never perform service on the work plat-
form in the elevating assembly area while
platform is elevated without first blocking
the elevating assembly.
DO NOT stand in elevating assembly area
while deploying or storing brace.
Installation
1. Park the work platform on firm level ground.
2. Verify platform emergency stop switch is ON.
3. Turn platform/chassis switch to CHASSIS.
4. Start the engine using the chassis controls.
5. Push the throttle button in, the button will stay in
and the engine speed will increase. Using the raise
button, elevate platform until the scissors brace can
be rotated to the vertical position.
6. From the left side of the machine, disengage the
locking pin securing the brace. Rotate the scissor
brace counterclockwise until it is vertical and be-
tween the two scissor center pivots.
7. Push lower button and gradually lower platform
until brace is supporting the platform.
8. Disengage throttle by pushing throttle button in
again, the button will retract and the engine will
come to idle speed.
Removal
1. Using chassis controls, gradually raise platform until
the scissors brace clears the two scissor center pivots.
2. Rotate scissors brace clockwise until the locking pin
engages.
3. Push lower button to completely lower platform.
4. Make sure the throttle button is disengaged and
platform/chassis switch is on PLATFORM.

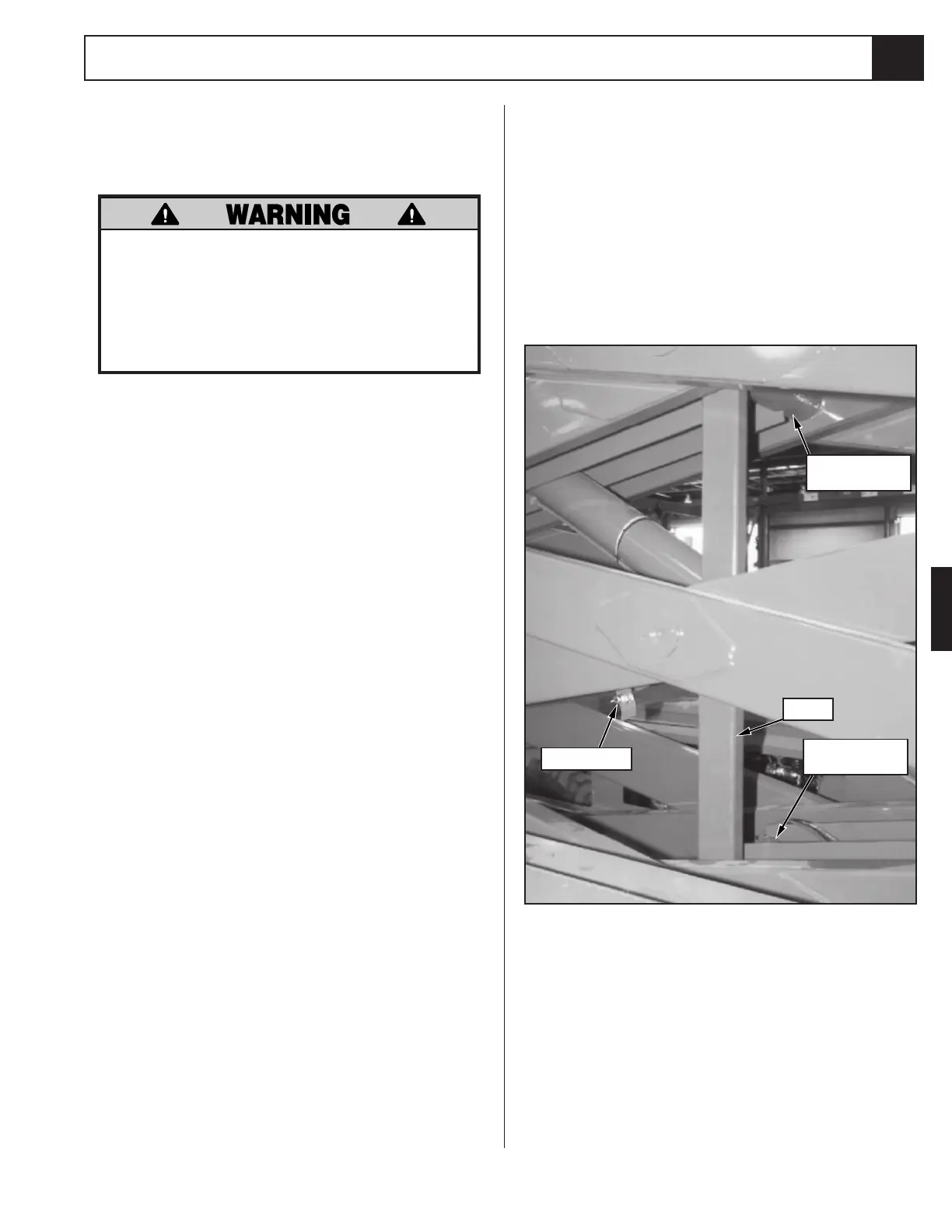

Figure 4-1: Blocking Elevating Assembly
Brace
Lower Scissor
Center Pivot
Locking Pin
Upper Scissor
Center Pivot
