Upright LX31 Service & Parts Manual

Illustrated Parts Breakdown
7.2
SectionSection
SectionSection
Section
LX31/41 Work Platform7-36

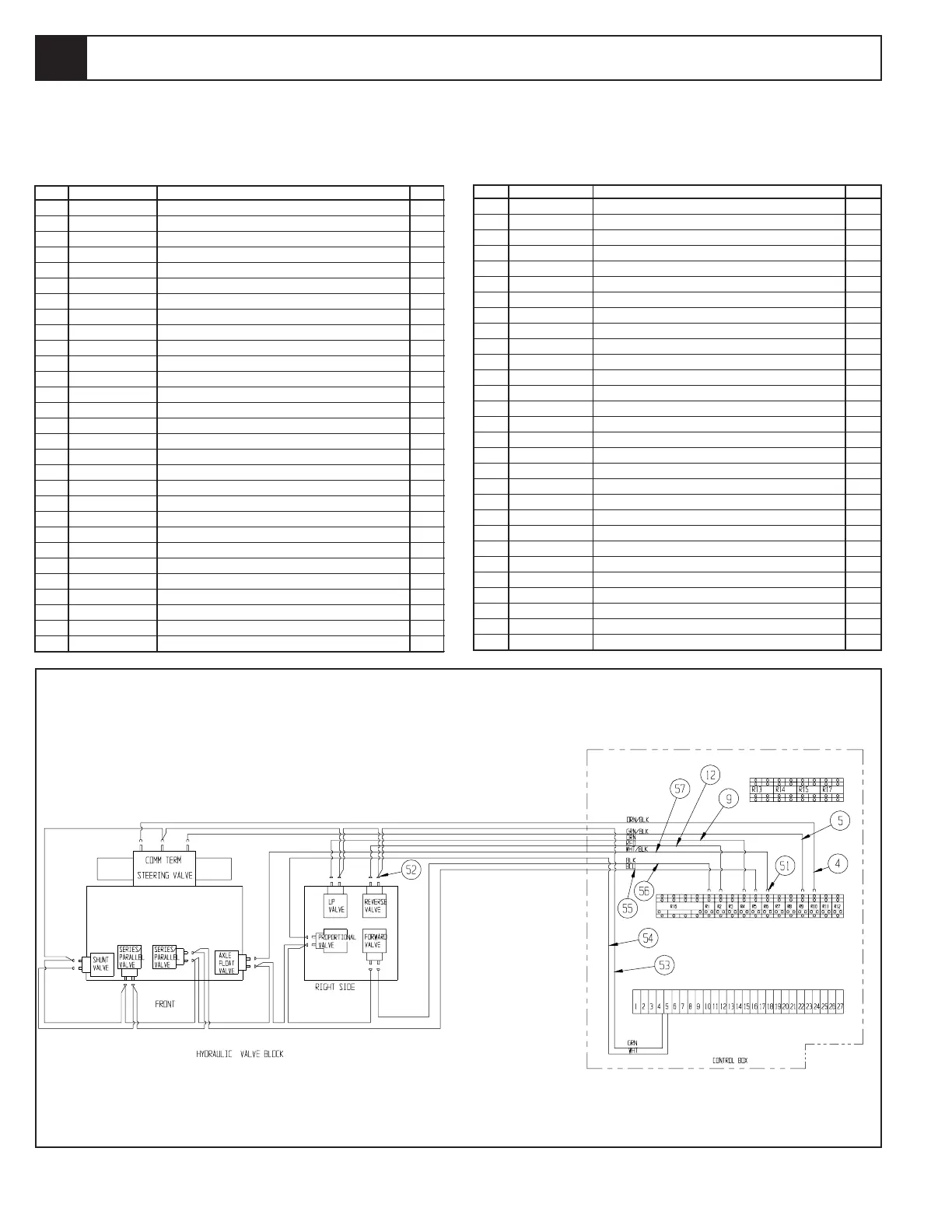

CONTROL MODULE ASSEMBLY, LX31/41
F
OUR WHEEL DRIVE DIESEL
67521-003
ITEM PART DESCRIPTION QTY.
1 67810-000 CONTROL MODULE WELDMENT 1
2 67527-001 CONTROL BOX ASSY, DIESEL 1
3 67631-000 FUEL TANK, GASOLINE 1
4 29477-099 WIRE 16 GA - ORANGE/BLACK 3'
5 05491-099 WIRE 16 GA - GREEN/BLACK 3'
6 64039-000 MOUNTING TAB, FUEL TANK 3
7 67629-000 LATCH, FLUSH LIFT & TURN 2
8 05299-000 LATCH, TOGGLE 2
9 29453-099 WIRE 16 GA - ORANGE 3'
10 63982-002 FUEL LEVEL GAGE 1
11 11240-004 WASHER 1/4 FLAT 2
12 29454-099 WIRE 16 GA - RED 3'
13 12739-099 HOSE, 1/4 I.D. 11'
14 10178-003 FITTING, BARBED 1/4 1
15 63125-008 HOSE CLAMP 2
16 11254-008 SCRW HHC GR5 3/8-16UNC X 1 10
17 11708-004 SCRW MACH RD HD 8-32UNC X 1/2 4
18 11248-002 LOCK NUT, ESMA 8-32UNC 4
19 64040-000 ANGLE, BATTERY HOLD DOWN 1
20 62299-002 BATTERY, 12 VDC GROUP-27C 1
21 12736-099 HOSE 3/16 ID 11'
22 63082-000 ROD, BATTERY HOLD DOWN 2
23 03556-001 FITTING BUSHING 1
24 10178-001 FITTING BARBED 3/16 1
25 67808-000 HINGE, 1 1/2 X 23 7/8 2
26 67809-000 HINGE, 1 1/2 X 65 1
27 67799-002 MODULE COVER / CONTROL 1
28 67800-000 MODULE DOOR, R.H. 1
29 67801-000 MODULE DOOR, L.H. 1
ITEM PART DESCRIPTION QTY.
30 26554-002 POP RIVET, 1/4 DIA (.251-.375 GRIP) 46
31 11248-006 NUT, 3/8-16 ESNA 11
32 11252-006 SCREW, HHC 1/4-20 X 3/4 2
33 11248-004 NUT, 1/4-20 ESNA 4
34 25427-002 HANDLE 1
35 67854-000 ANGLE, RESERVOIR MOUNT 1
36 67856-000 WELDMENT, STIFFENER 1
37 11254-006 SCREW HHC 3/8-16 X 3/4 3
38 62125-016 CABLE, BATTERY X 16 1
39 62125-002 CABLE, BATTERY X 69 1
40 14435-001 TERMINAL, BATTERY 2
41 10154-000 COVER, BATTERY TERMINAL 2
42 03495-000 FITTING 1/4 STREET EL 1
43 67892-000 BRACKET, VALVE BLOCK 1
44 67524-001 VALVE BLOCK ASSY. (4 W.D.) 1
45 11254-004 SCR HHC GR5 3/8-16UNC X 1/2 4
46 63650-012 GAS SPRING 1
47 67902-000 BRACKET, GAS SPRING 1
48 15936-004 SCREW, SHOULDER 3/8 DIA. X 1/2 2
49 67648-008 END FITTING, GAS SPRING 2
50 11253-008 SCR, HHC 5/16-18 X 1 2ITEM
51 29610-002 TERMINAL #6 FORK 12
52 29616-002 TERMINAL 16 GA FEMALE PUSH ON 18
53 29457-099 WIRE 16 GA - GREEN 4'
54 29451-099 WIRE 16 GA - WHITE 3'
55 29450-099 WIRE 16 GA - BLUE 3'
56 29452-099 WIRE 16 GA - BLACK 3'
57 29479-099 WIRE 16 GA - WHITE/BLACK 3'
56 11237-006 WASHER 3/8 STAR 1
