Upright LX31 Service & Parts Manual

Section
4-15LX 31/41 Work Platform
Maintenance
1
7
2
5
TEFLON BACKUP SEAL
SHAFT SEAL
SEAL CARRIERMETAL BACKUP SHIM
METAL BACKUP SHIMHIGH PRESSURE SEALWIRE RING
Detail: Bolt Tightening SequenceDetail: Shaft Seal Assembly

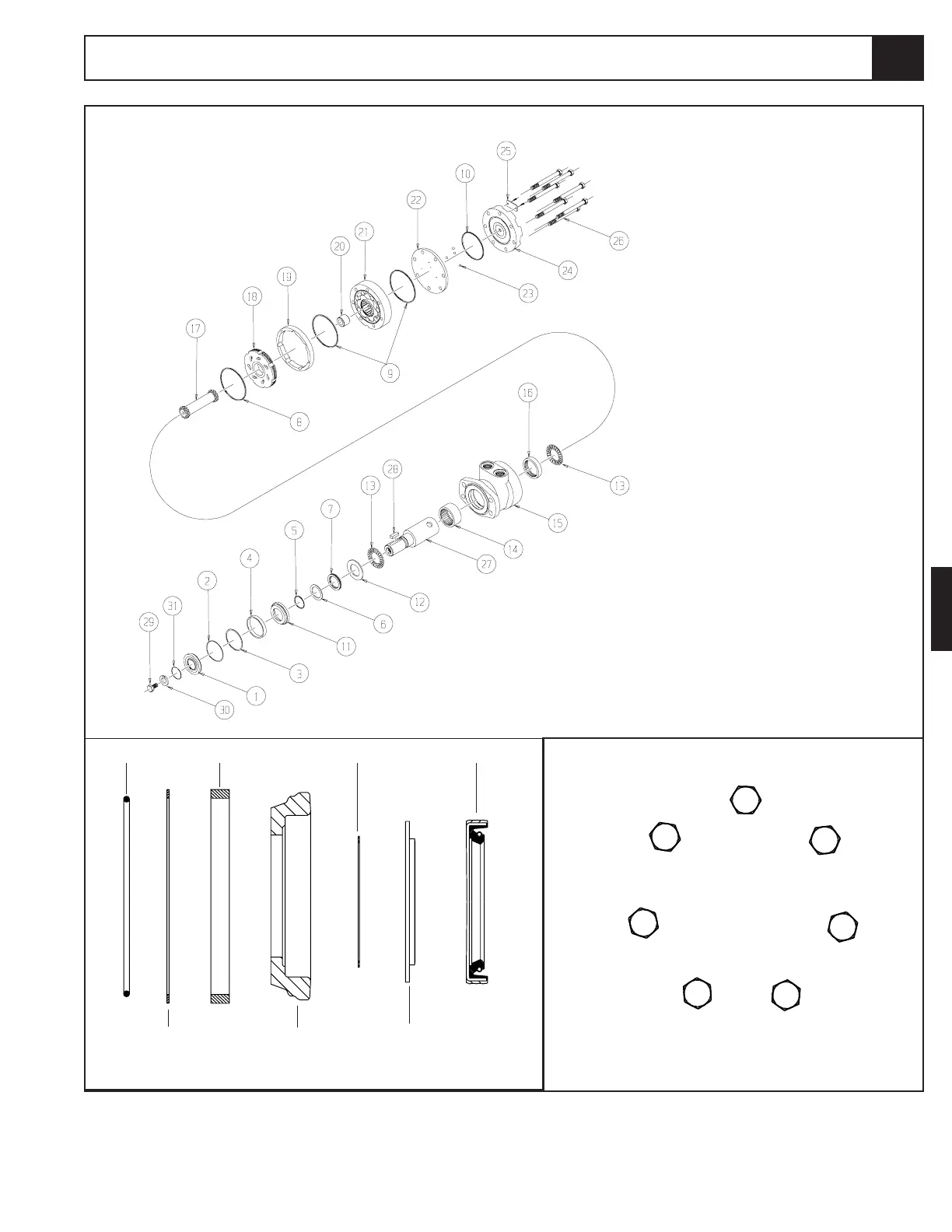

Figure 4-16: Rear Drive Motor Assembly
1. Dust Seal
2. Split Wire Ring
3. Metal Backup Shim
4. High Pressure Seal
5. Metal Backup Shim
6. Teflon Backup Seal
7. Shaft Seal
8. Housing Seal
9. Body Seals (2)
10. End cover Seal
11. Seal Carrier
12. Thrust Washer
13. Thrust Bearing (2)
14. Front Housing Bearing
15. Housing
16. Rear Housing Bearing
17. Drive Link
18. Manifold
19. Manifold Boot
20. Drive Link Spacer
21. Rotor Assembly
22. Balance Plate
23. Steel Balls (4)
24. End cover
25. I.D. Tag Assembly
26. Assembly Bolts (7)
27. Shaft
28. Shaft Key
29. Shaft Bolt
30. Lock Washer
31. Wire Ring
