Upright LX31 Service & Parts Manual

Section
4-17LX 31/41 Work Platform
Maintenance
1. Flange Seal
2. Wire Ring
3. Metal Backup Shim
4. High Pressure Seal
5. Metal Backup Shim
6. Teflon Backup Seal
7. Shaft Seal
8. Housing Seal
9. Body Seals (3)
10. Manifold Seal
11. Commutator Seal
12. O-Ring Seal
13. Teflon Backup Seal
14. Seal Carrier
15. Thrust Washer
16. Studs (6)
17. Lug Nuts (6)
18. Capscrews (4)
19. Wheel Flange
20. 125mm Bearings (2)
21. Bearing Spacer
22. Thrust Ring
23. Bearing Hub
24. Thrust Bearings
25. Rear Housing Bearing
26. Planetary Mount Studs (4)
27. Mounting Nuts (4)
28. Housing
29. Shaft
30. Drive Link
31. Divider Plate
32. Rotor Assembly
33. Manifold
34. Commutator Assembly
35. End cover Piston
36. Piston Spring
37. End cover
38. I.D. Tag Assembly
39. Assembly Bolts (7)
40. Driver Cover Screws (6)
41. Driver Cover
42. Paper Gasket
43. Driver
Note: Item 24 and 44 are not used.

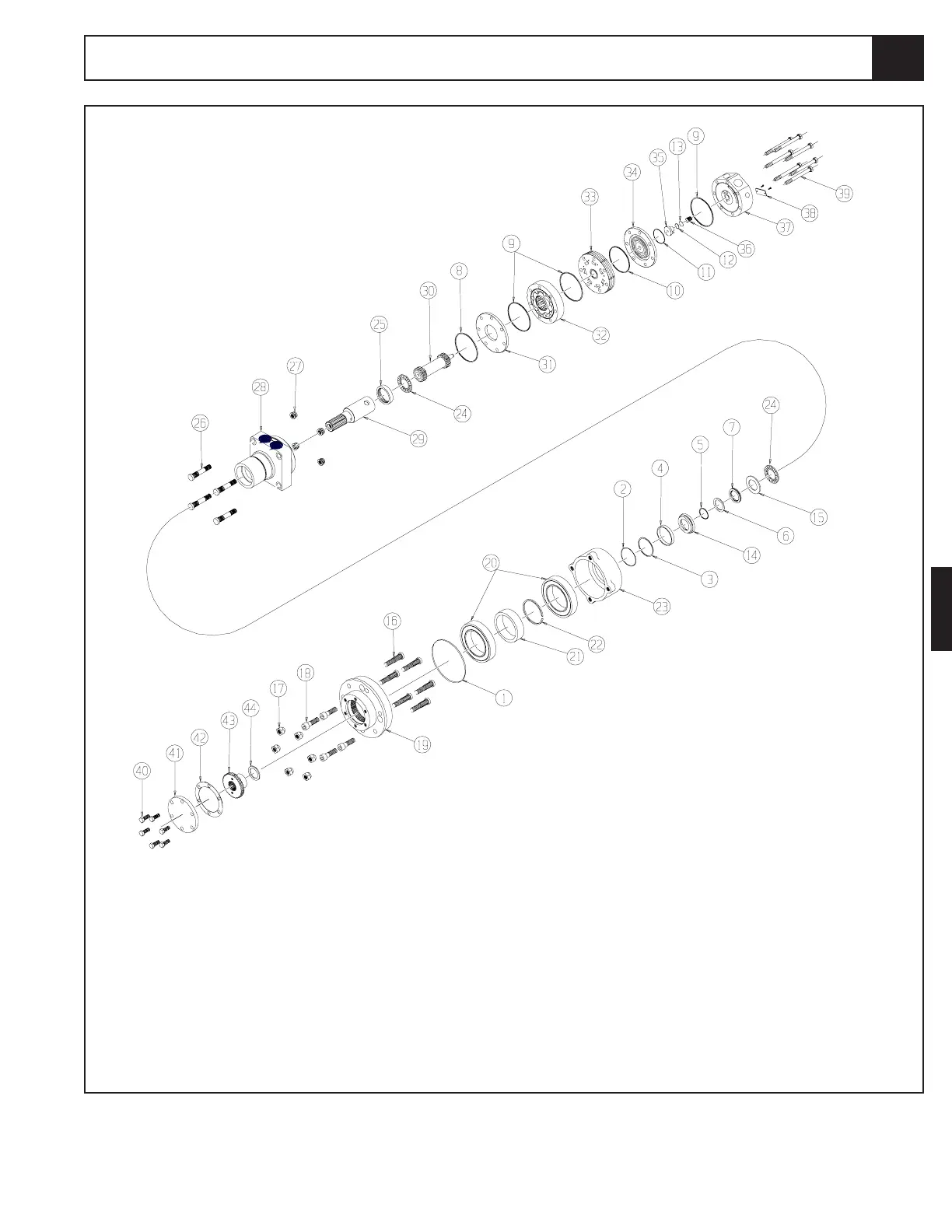

Figure 4-18: Front Drive Motor Assembly
4.9
