Schematics
Section
LX 31/41 Work Platform 6-7

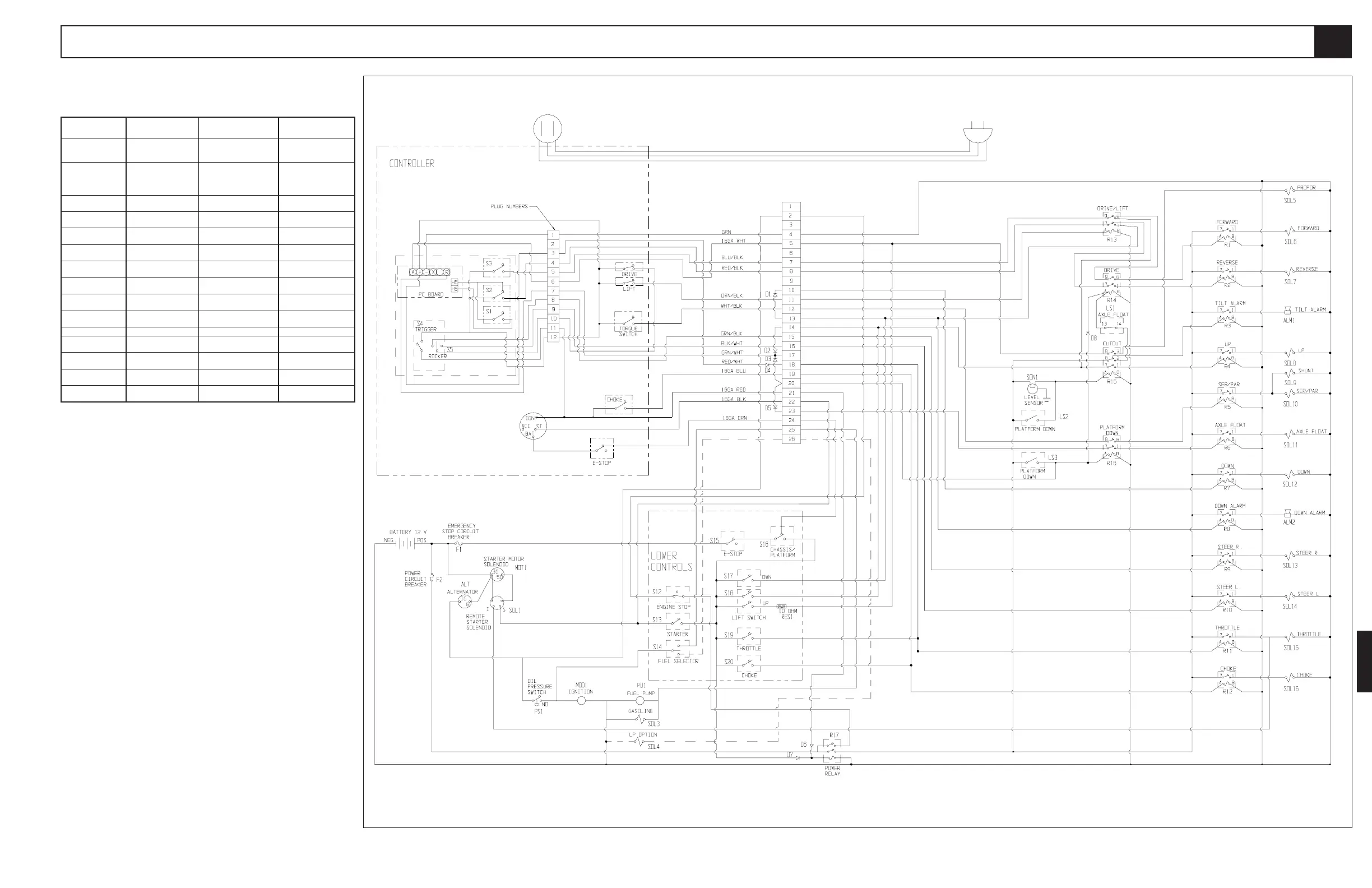

Figure 6-3: Electrical Schematic, Four Wheel Drive, Gasoline / Propane Model (Serial Number 1000-1330)
6.1
REFERENCE
DESIGNATION NAME FUNCTION LOCATION
SOL1 Remote Starter Solenoid Switches power to starter Power module, on,
motor solenoid, and throttle left side of engine.
solenoid during starting.
SOL2 Fuel Shut-Off Solenoid Controls fuel valve. Power module,to
rear of engine.
SOL3 Gas Solenoid Controls Fuel Valve. Power module, inline
with gasoline supply.
SOL4 Propane Shut-Off Controls propane valve. Power module, inline
Solenoid propane supply.
SOL5 Proportional Solenoid Controls proportional Right side of manifold,
valve. port marked 'G'.
SOL6 Forward Solenoid Controls forward valve. Right side of valve
manifold, port marked 'K'.
SOL7 Reverse Solenoid Controls reverse valve. Right side of manifold,
port marked 'L'.
SOL8 Lift Solenoid. Controls lift valve. Right side of manifold,
port marked 'J'.
SOL9 Shunt Solenoid Controls shunt valve. Front of manifold, port
markeed 'E'.
SOL10 Series / Parallel Solenoid Controls series / parallel Front side of manifold,
(two) valves. ports marked 'Q' & 'R'.
SOL11 Axle Float Solenoid Controls axle float valve. Front of manifold, port
marked 'F'.
SOL12 Down Solenoid Controls down valve. Lift cylinder, lower end.
SOL13 Steer Right Solenoid Controls steer valve when Top of manifold, on
steering right. steer valve.
SOL14 Steer Left Solenoid Controls steer valve when Top of manifold, on
steering left. steer valve.
SOL15 Throttle Solenoid Controls engine throttle. Power module, engine,
right side.
SOL16 Choke Solenoid Controls engine choke. Power module, engine,
right side.
Table 6-3: (cont.)
Note: See figure 6-17 for relay, terminal strip locations.
