6-80 SB80 Work Platform - European

LLUSTRATED

ARTS

REAKDOWN

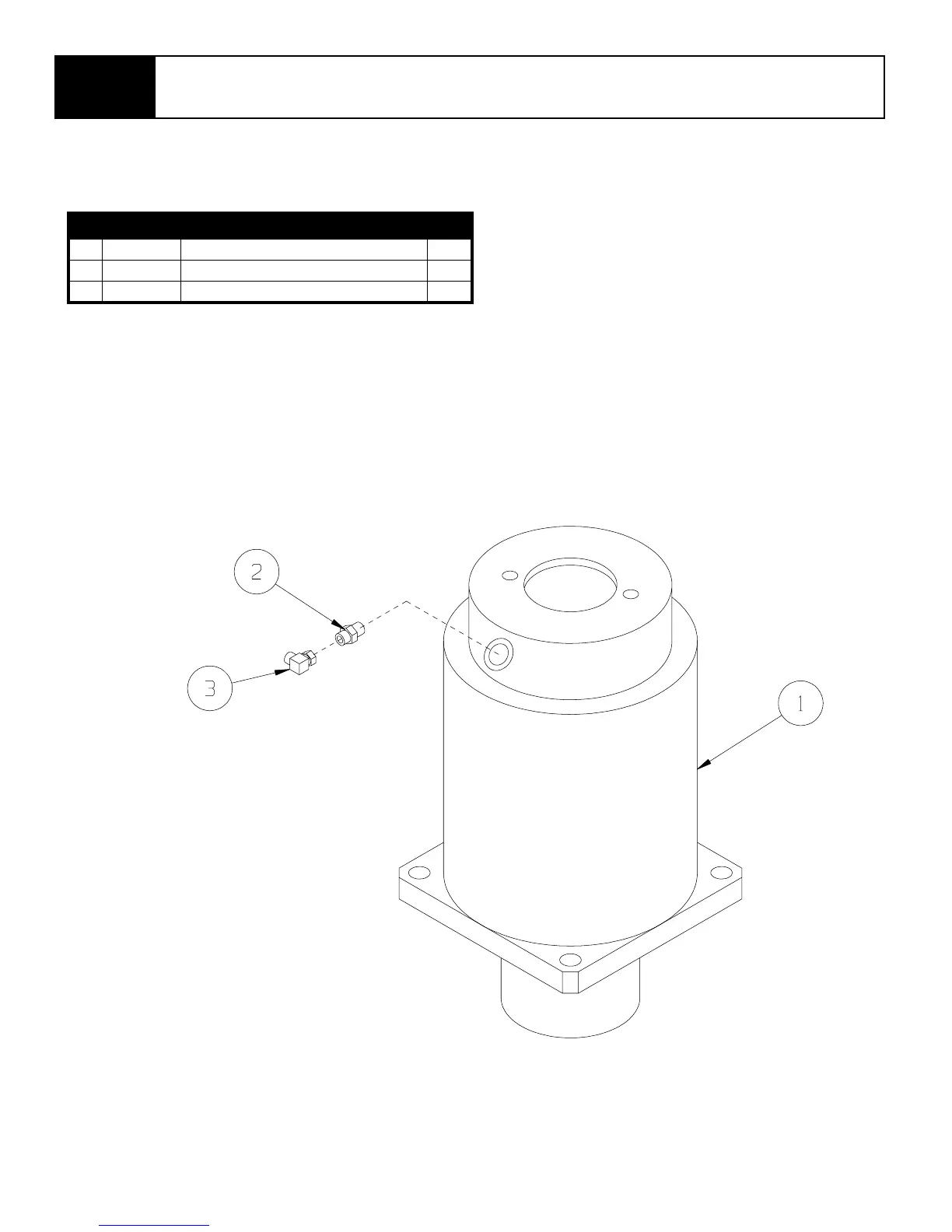

Section

6.1

WING

RIVE

SSEMBLY

SB80

102346-000

ITEM PART NO. DESCRIPTION QTY.

1 102262-000 SWING DRIVE 1

2 100432-002 FITTING, STR. ADAPTER 4MB-4MFOR 1

3 100435-001 FITTING 90° ADAPTER 4MFOR-4MFOR 1
