SB80 Work Platform - European 6-81

LLUSTRATED

ARTS

REAKDOWN

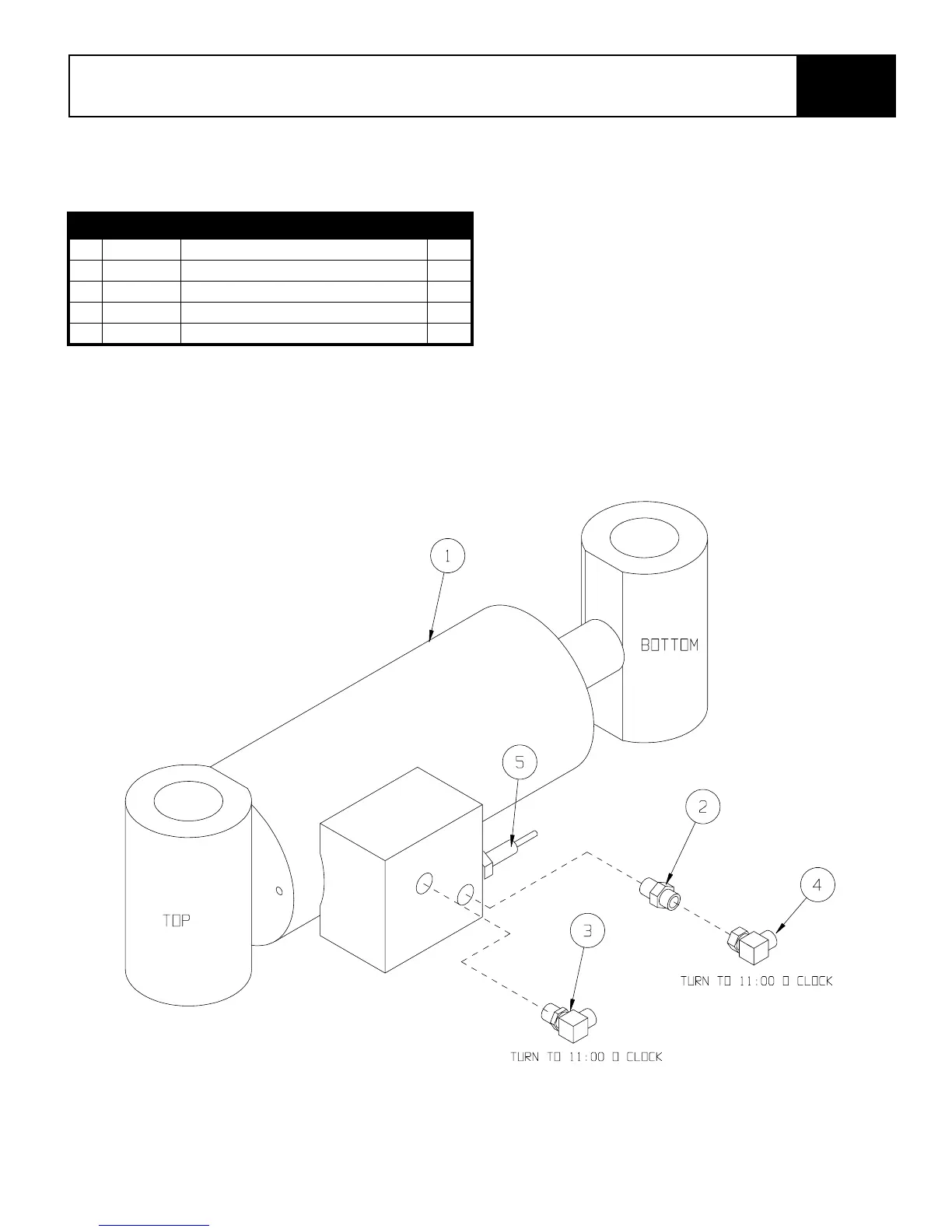

Section

6.1

XLE

LOAT

YLINDER

SSEMBLY

SB80

102333-000

ITEM PART NO. DESCRIPTION QTY.

1 100556-000 CYLINDER, AXLE FLOAT 1

2 100432-002 FITTING, STR. ADAPTER 4MB-4MFORS 1

3 100434-002 FITTING, 90° ADAPTER 4MB-4MFOR 1

4 100435-001 FITTING, 90° ADAPTER 4FFOR-4MFOR 1

5 COUNTER BALANCE VALVE 1
