6-82 SB80 Work Platform - European

LLUSTRATED

ARTS

REAKDOWN

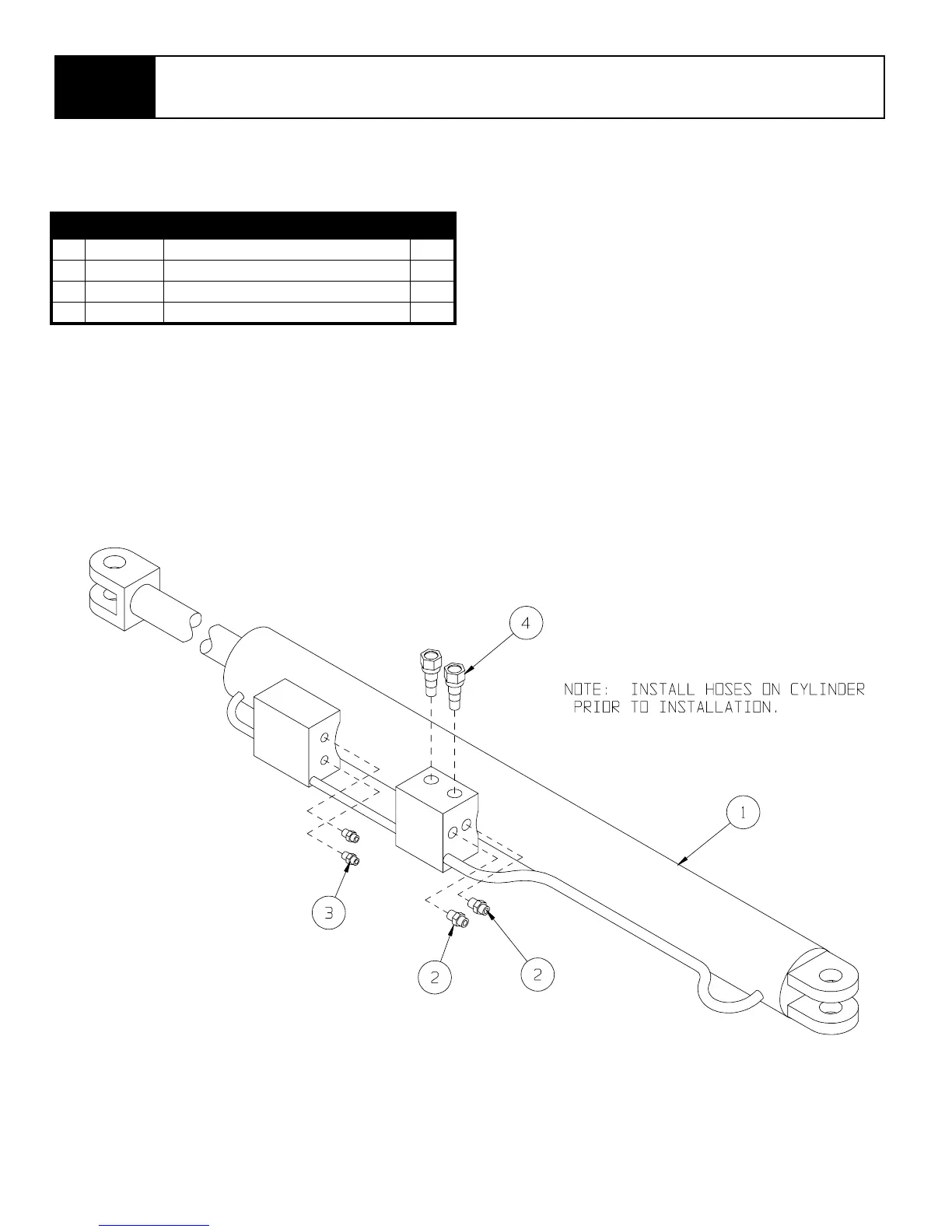

Section

6.1

XLE

XTEND

YLINDER

SSEMBLY

SB80

102335-000

ITEM PA RT NO. DESCRIPTION QTY.

1 102256-000 CYLINDER, AXLE EXTEND 1

2 100432-009 FITTING, STR. ADAPTER 6MB-6MFOR 2

3 100432-002 FITTING, STR. ADAPTER 4MB-4MFOR 2

4 068778-001 VALVE, COUNTER BALANCE 2
