SB80 Work Platform - European 6-85

LLUSTRATED

ARTS

REAKDOWN

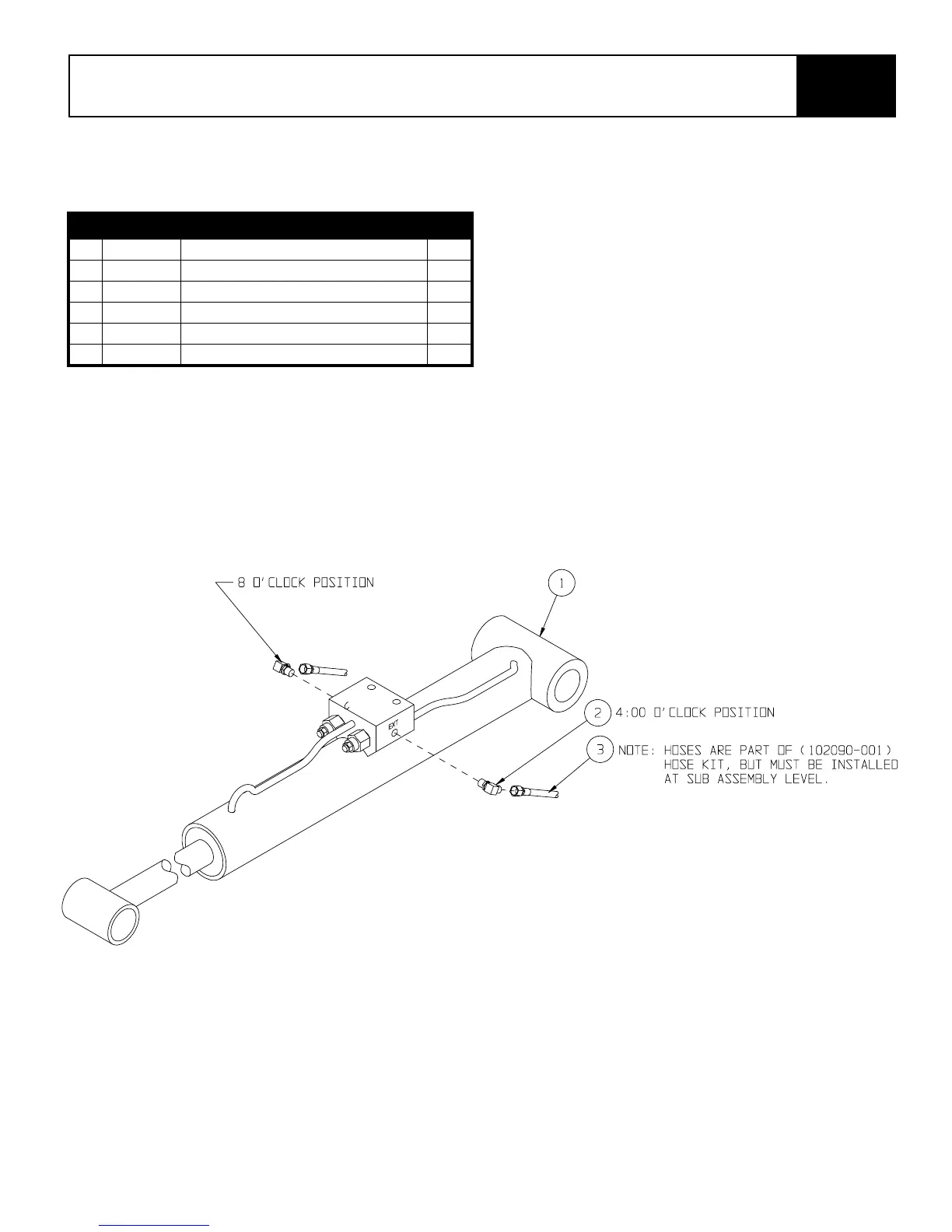

Section

6.1

LAVE

YLINDER

SSEMBLY

SB80

102338-000

ITEM PART NO. DESCRIPTION QTY.

1 102252-000 SLAVE CYLINDER 1

* 102252-010 SEAL KIT -

* 102252-003 BUSHING 4

* 102252-000 COUNTERBALANCE VALVE 1

2 100434-002 FITTING, 90° ADAPTER 4MB-4MFOR 2

3 REF. HOSE (ITEM 313, 102029-001 HOSE KIT) 2

*Not Shown
