DE35-ST Operating Instructions
D292469I 109
Semi-Annual Maintenance:
Die Eject Stage

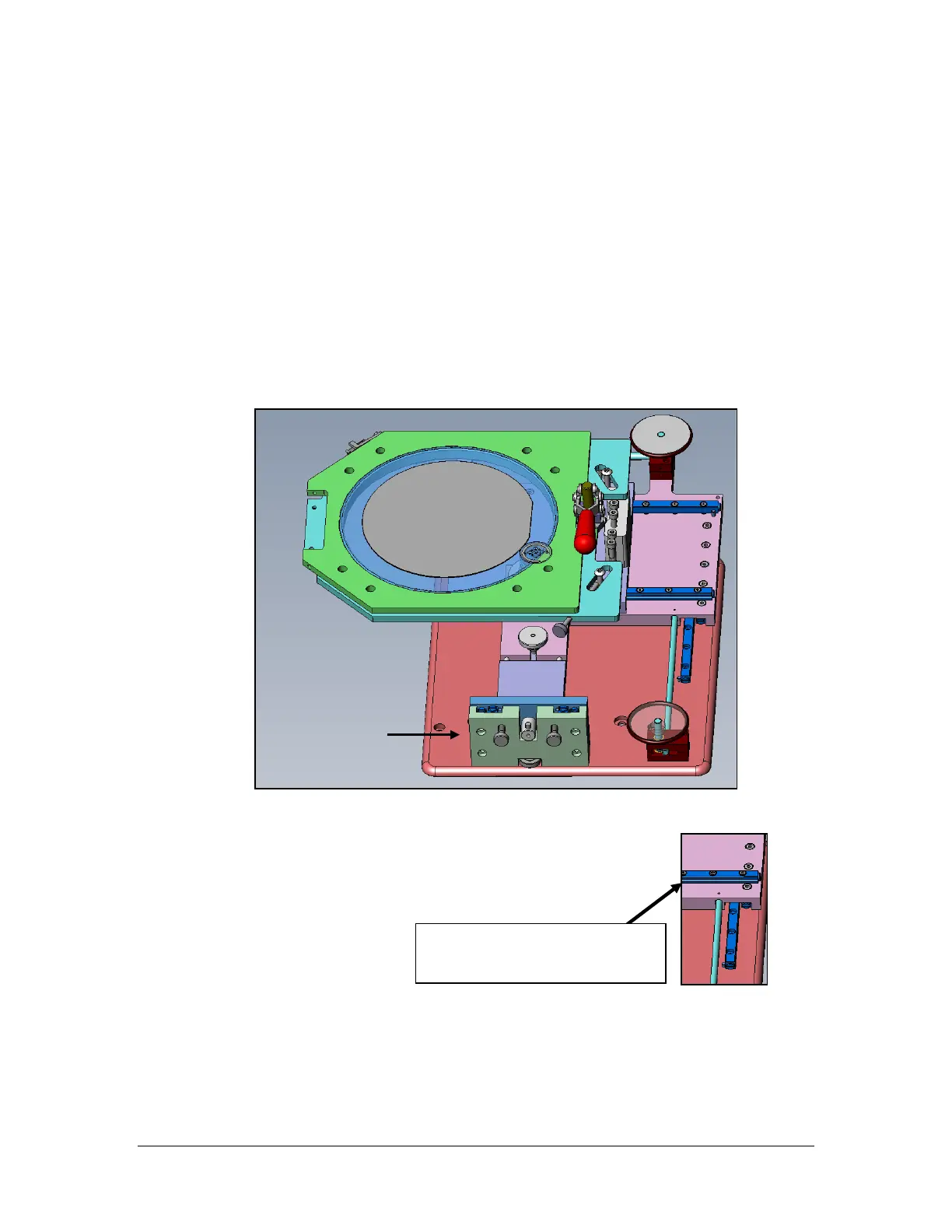

NOTE: An example of the DE35-ST stage is shown below. If working with a DE35-
300, the stage appearance may vary but the maintenance requirements will
remain the same.
1. Lubricate Cross Roller Ways
For both DES-AUM & DES Pneumatic Stages:
Lightly lubricate X-, Y- and Z-Motion Cross-Roller Ways. Use light machine oil
(such as “3 in 1” oil). Wipe off excess oil.
For DES Pneumatic Stages only:
Lubricate the Z- Motion Cross Roller Ways.
Roller
Roller
Apply oil on grooved inner
surface of Cross-Roller Ways.
